Quick Start cont.

Cable Management

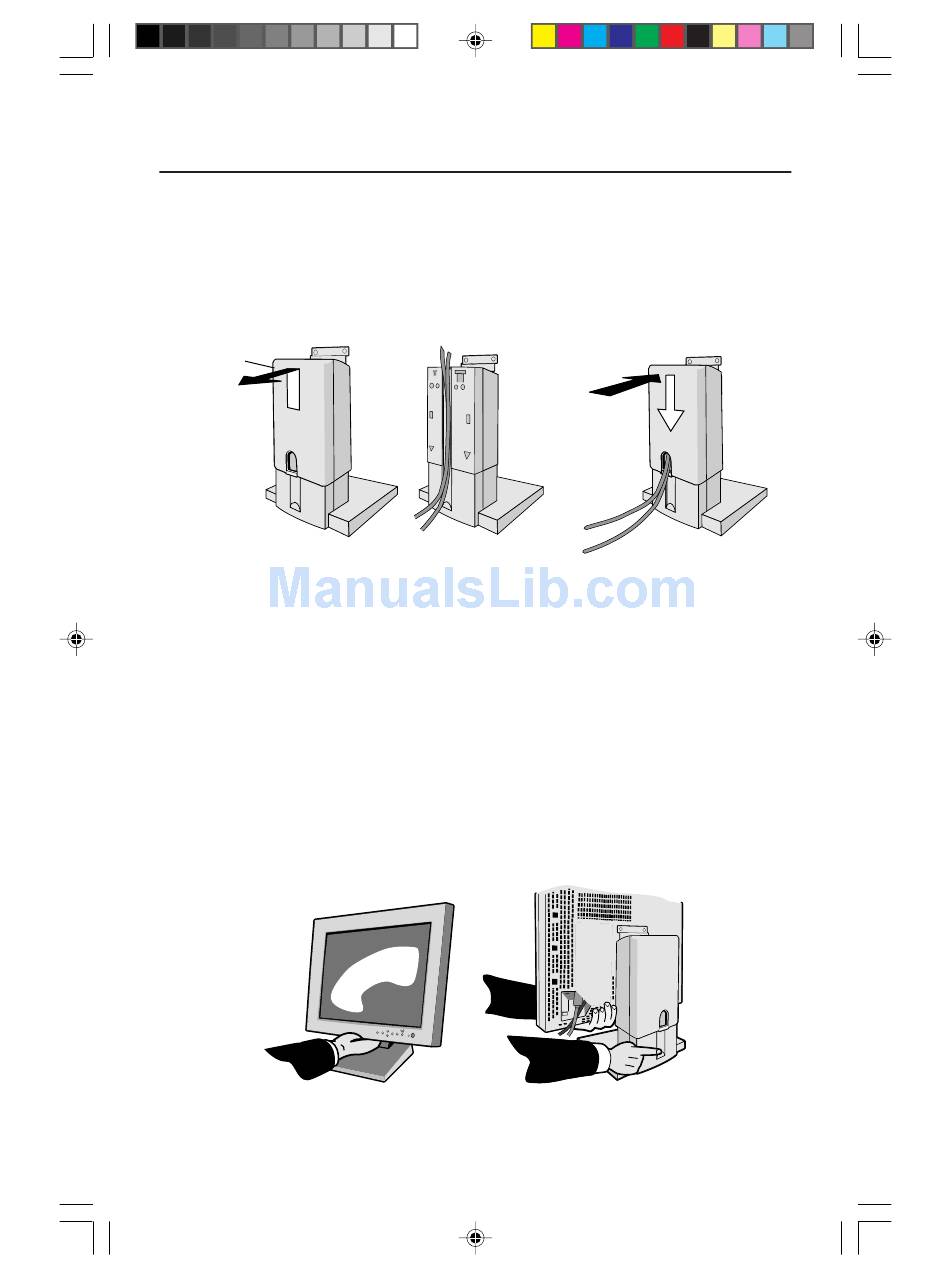

To use the cable management feature, lift up then remove back cover (Figure CM.1).
Place all cables into the vertical groove, leaving 6" of slack in the cables to allow the
monitor to rotate between Landscape and Portrait orientation (Figure CM.2). To replace
back cover, push in then slide down (Figure CM.3).
Cable Cover
Lift up then
remove
back cover
Figure CM.1
Raise and Lower
Monitor Screen
The monitor may be raised or lowered in either Portrait or Landscape mode.
To raise or lower screen, place one hand under bottom of screen (Figure RL.1),
lift or lower slightly and simultaneously push the button on the bottom back of the
stand (Figure RL.2). Screen will lower while button is pushed in. Release button to
lock screen in place.
CAUTION: Although the monitor has been designed not to lower automatically
when the button is pushed, ALWAYS support the bottom of the screen with one
hand.
78134702.wpc
Leave sufficient
length of cable
Figure CM.2
Figure RL.1
5
7
Push in and
slide down
Figure CM.3
Figure RL.2
