Power Indicator

Mode
Power ON
Power OFF
Power consumption under 0.5 W
Power Save
2
Power consumption under 1 W*
Power Standby when "SCHEDULE
SETTINGS" enabled
Diagnosis (Detecting failure)
*1 If "OFF" is selected in POWER INDICATOR (page 23), the LED will not light when the
LCD monitor is in active mode.
*2 Without any option, with factory settings, VGA input only.

Using Power Management

The LCD monitor follows the VESA approved DPM Display
Power Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fi xed period.
The power management feature on your new display has
been set to the "ON" mode. This allows your display to
enter a Power Saving Mode when no signal is applied. This
could potentially increase the life and decrease the power
consumption of the display.
NOTE: Depending on the PC and video card used, this
function may not operate.
NOTE: It takes 10 minutes for the monitor to go into power
management mode when using HDMI, DVD/HD,
SCART, VIDEO1, VIDEO2 and S-VIDEO.

Selecting a video source

To view a video source:
Use the input button to set [VIDEO1], [VIDEO2], [S-VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [NTSC],
[PAL], [SECAM], [PAL60], [4.43NTSC], according to your
video format.
Status Indicator Light
1
Green*
Red
Amber
Green and Amber blink alternately
Red Blinking
(See Troubleshooting page 36)
English-17

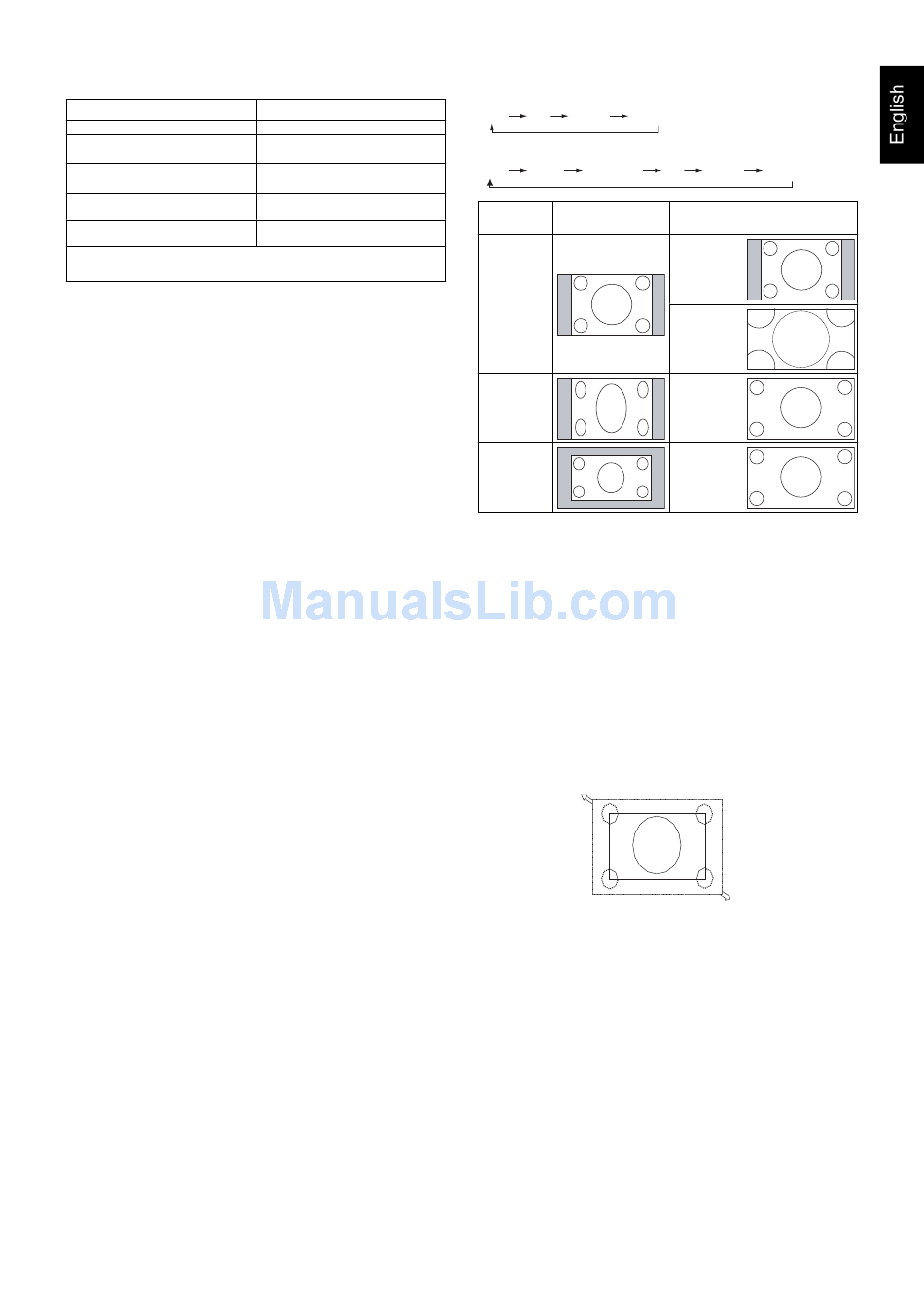

Picture Aspect

DVI, VGA, DPORT
FULL 1:1 ZOOM NORMAL
HDMI, DVD/HD, SCART, VIDEO1, VIDEO2, S-VIDEO
FULL WIDE DYNAMIC
Aspect ratio
Unchanged view*
of image
4:3
Squeeze
Letterbox
* 3 Grey areas indicate unused portions of the screen.
NORMAL: Displays the aspect ratio the same as it is sent
from the source.
FULL: Fills entire screen.
WIDE: Expands a 16:9 letter box signal to fi ll entire screen.
DYNAMIC: Expands a 4:3 pictures to fi ll the entire screen
with non-linearity. Some of the outside image area will be cut
off due to expansion.
1:1: Displays the image in a 1 by 1 pixel format.
ZOOM
The image can be expanded beyond the active display area.
The image which is outside of active display area is not
shown.
ZOOM
1:1 ZOOM NORMAL
Recommended selection
3
3
for picture aspect*
NORMAL
DYNAMIC
FULL
WIDE
ZOOM
