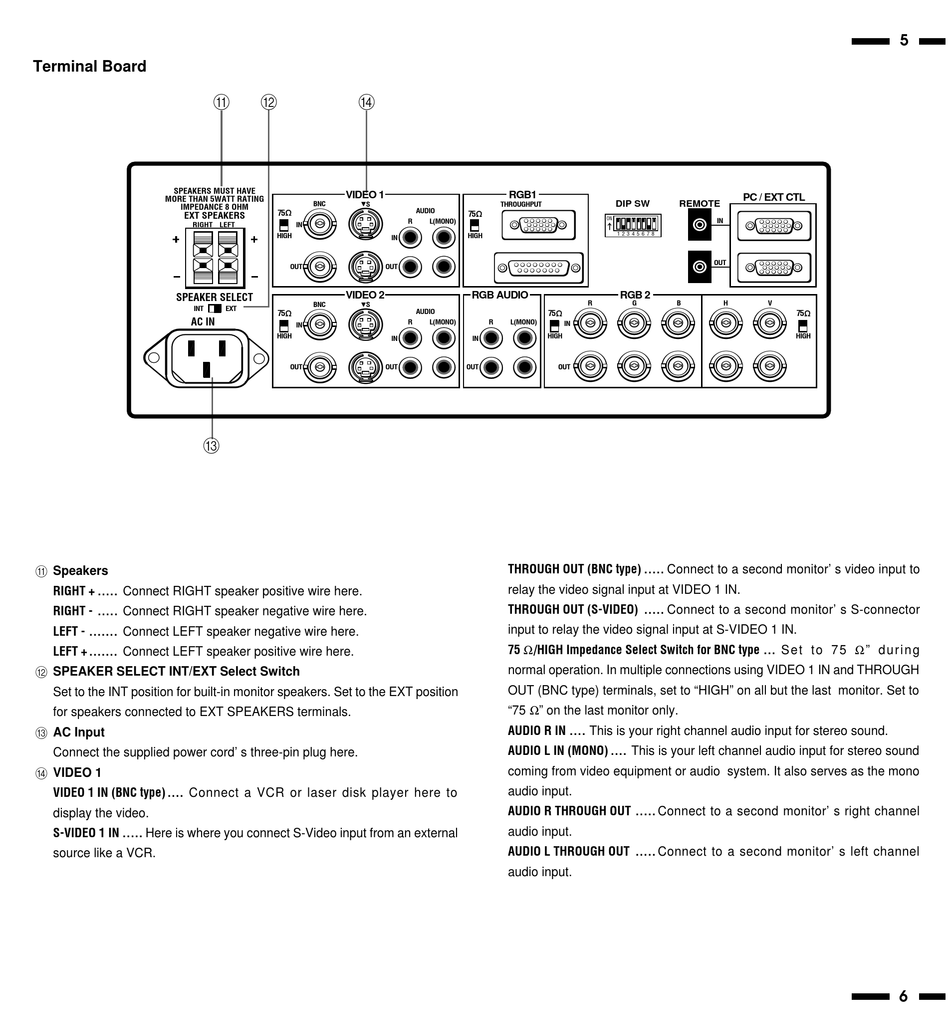

Terminal Board

SPEAKERS MUST HAVE
MORE THAN 5WATT RATING
IMPEDANCE 8 OHM
EXT SPEAKERS
RIGHT LEFT
SPEAKER SELECT
INT
AC IN
C
A Speakers
RIGHT + ..... Connect RIGHT speaker positive wire here.
RIGHT - ..... Connect RIGHT speaker negative wire here.
LEFT - ....... Connect LEFT speaker negative wire here.
LEFT + ....... Connect LEFT speaker positive wire here.
B SPEAKER SELECT INT/EXT Select Switch
Set to the INT position for built-in monitor speakers. Set to the EXT position
for speakers connected to EXT SPEAKERS terminals.
C AC Input
Connect the supplied power cord' s three-pin plug here.
D VIDEO 1
VIDEO 1 IN (BNC type) .... Connect a VCR or laser disk player here to
display the video.
S-VIDEO 1 IN ..... Here is where you connect S-Video input from an external
source like a VCR.
