Configuration 2 - NEC MultiSync LCD4010 User Manual

SCREEN SAVER
COLOR SYSTEM
*:INPUT VIDEO only
SIDE BORDER
COLOR
CONFIGURATION
RESET
FACTORY RESET
Main-Menu

CONFIGURATION 2

Sub-Menu
LONG CABLE
ON/OFF
*:INPUT RGB2/3 only
CONFIGURATION 1 SCREEN SAVER
AUTO SETUP
AUTO ADJUST
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
SCREEN SAVER
SIDE BORDER COLOR
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
CONFIGURATION 1 COLOR SYSTEM
POWER SAVE
LANGUAGE
SCREEN SAVER
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
CONFIGURATION 1
AUTO BRIGHTNESS
SIDE BORDER COLOR
POWER SAVE
LANGUAGE
POWER SAVE
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL :NEXT :RETURN :EXIT MENU
SET EXIT MENU
CONFIGURATION 1
POWER SAVE CONFIGURATION RESET
LANGUAGE
SCREEN SAVER
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
CONFIGURATION 1
POWER SAVE FACTORY RESET
LANGUAGE
SCREEN SAVER
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU

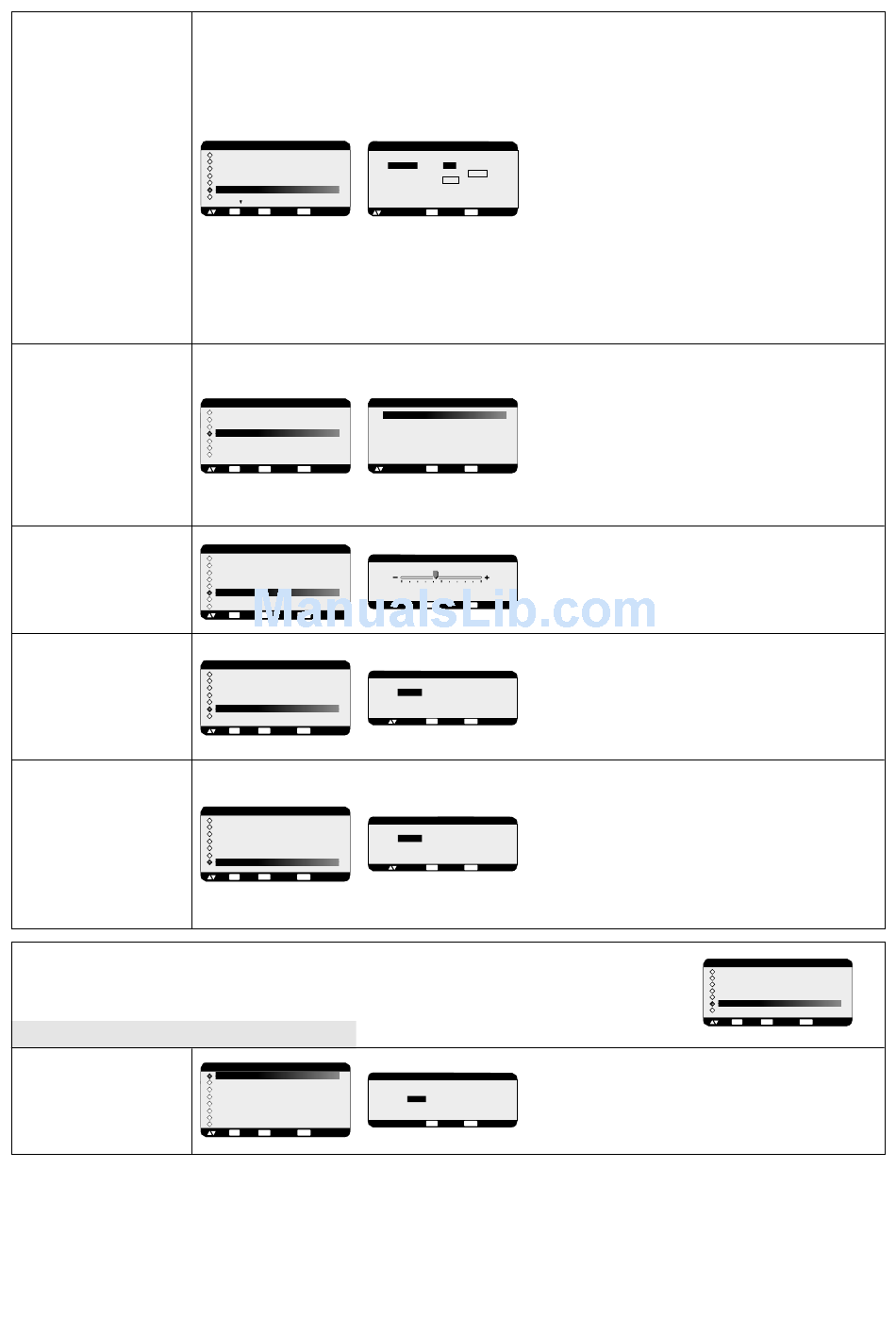

Select "SCREEN SAVER" functions to reduce the risk of
the "image persistence".
GAMMA: The display gamma is changed and fixed when
selected "ON".
COOLING FAN: The built in cooling fan is always on
when set "ON".
BRIGHTNESS: The brightness is decreased when
selected "ON".
GAMMA
ON / OFF
COOLING FAN ON / AUTO
MOTION: Image is slightly expanded and moves
BRIGHTNESS ON / OFF
MOTION 10 SEC.
4 directions (UP, DOWN, RIGHT, LEFT) periodically
:SEL + -:ADJ EXIT :RETURN MENU :EXIT MENU
(Need setting the time for movement).
Movement area is approximately +/- 10mm from original
position; Please locate the important information such as
text within 90% area of screen image.
See note (1) for this functions.
PIP, POP, Side by Side and STILL will be disabled when
"MOTION" is active.
Selecting the Colour System depends on your input
video format.
AUTO: NTSC, PAL, SECAM, PAL60 or 4.43 NTSC is
AUTODEUTSCH automatically selected.
NTSC
PAL
NTSC: Specific selection of NTSC.
SECAM
4.43 NTSC
PAL-60
PAL: Specific selection of PAL.
:SEL :RETURN :EXIT MENU
EXIT MENU
SECAM: Specific selection of SECAM.
PAL-60: Specific selection of PAL60.
4.43NTSC: Specific selection of 4.43 NTSC.
Adjustment the side black bar color white when 4:3
image displayed, black to white.
50
Press + button, the bar will become whiter.
Press - button, the bar will become darker.
+ -:ADJ EXIT :RETURN MENU :EXIT MENU
Selecting the CONFIGURATION RESET allows you to
reset all configuration settings.
Select "Yes" and press "SET" button to restore the factory
NO
YES
preset data.
:SEL EXIT :RETURN :EXIT MENU
MENU
Press "EXIT" button to cancel and return the previous
menu.
Selecting "YES" allows you to reset PICTURE, SCREEN,
AUDIO, CONFIGURATION1,2 and ADVANCED OPTION
will be back to factory settings (except LANGUAGE,
DATE & TIME and SCHEDULE).
NO
Select "YES" and press "SET" button to restore the
YES
:SEL EXIT :RETURN MENU :EXIT MENU
factory preset data.
Press "EXIT" button to cancel and return the previous
menu.
A set up ON/OFF of long cable alteration can be
performed. In ON, enforcement of an AUTO Set Up
ON / OFF
performed alteration.
+ -:SEL EXIT :RETURN MENU :EXIT MENU
Please refer to the CD-ROM included for alteration.
English-24
