Quick Start cont.

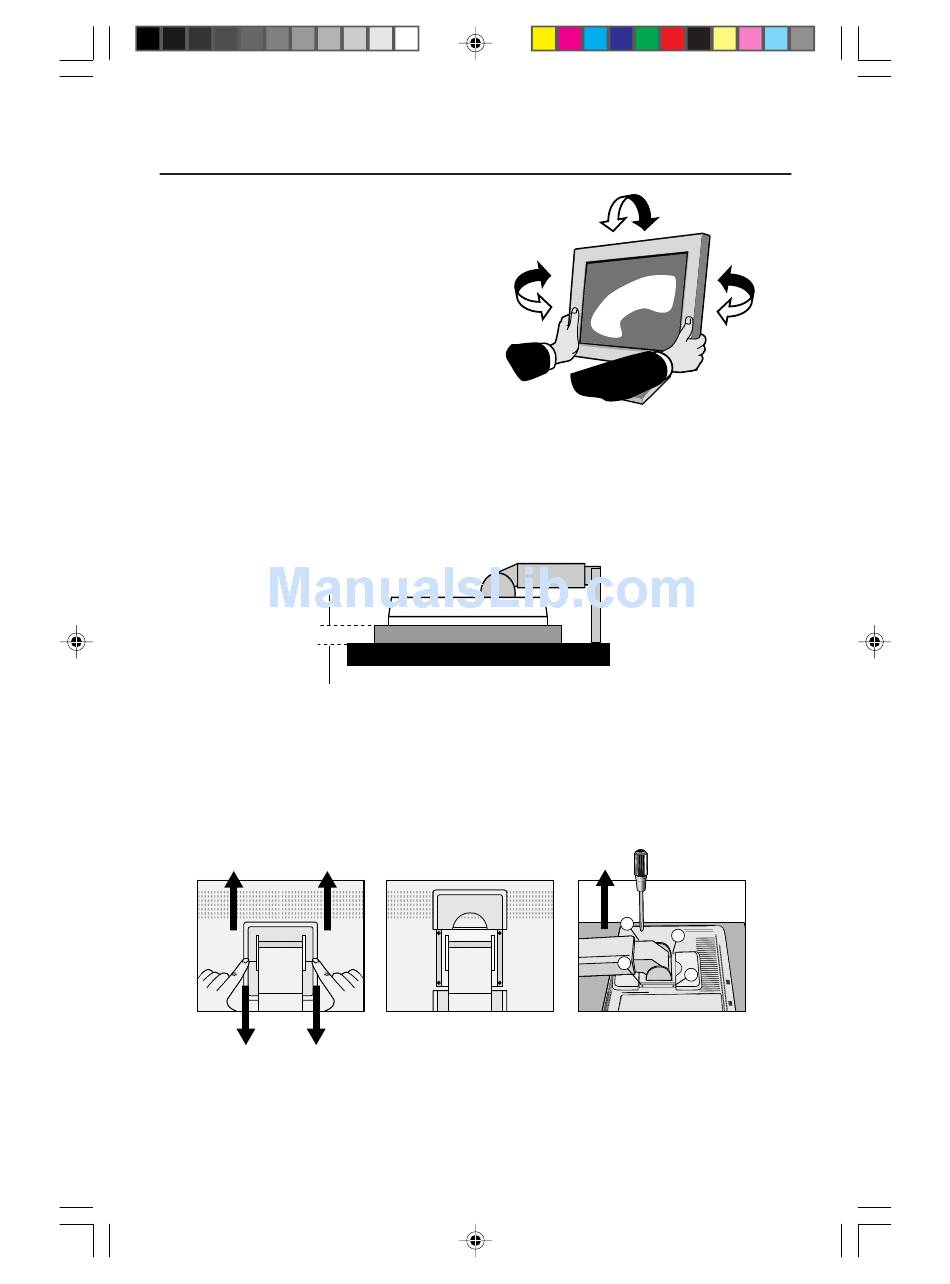

Tilt and Swivel

Grasp both sides of the monitor screen
with your hands and adjust the tilt and
swivel as desired (Figure TS.1).
Remove Monitor Stand for
Mounting
To prepare the monitor for alternate mount-
ing purposes:
1. Disconnect all cables.
2. Place hands on each side of
the monitor and lift up to the highest position (Figure RL.1).
3. Place monitor face down on a non-abrasive surface. (Place the screen on
a 2-inch platform so that the stand is parallel with the surface.)
(Figure S.1)
4. Remove the stand cover by sliding the top/bottom pieces off the stand
(Figure S.2). Remove the 4 screws connecting the monitor to the stand
and lift off the stand assembly (Figure S.3). The monitor is now ready for
mounting in an alternate manner.
5. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
Caution: This LCD monitor is designed for use with a flexible arm, therefore it is delivered without stand.
To fulfil the safety requirements the monitor must be mounted to an arm which guaranties
the necessary stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).
2010X.wpc
2-in
Figure S.1
Figure S.2 and Figure S.3
7
9
Figure TS.1
4
3
1
2
