Summary of Contents for Logik L612WD12

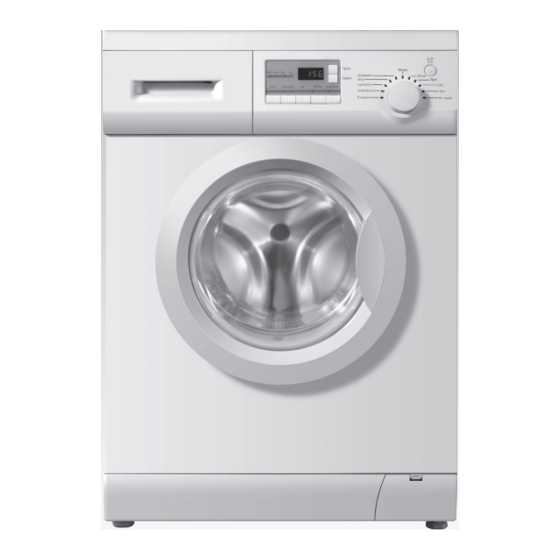

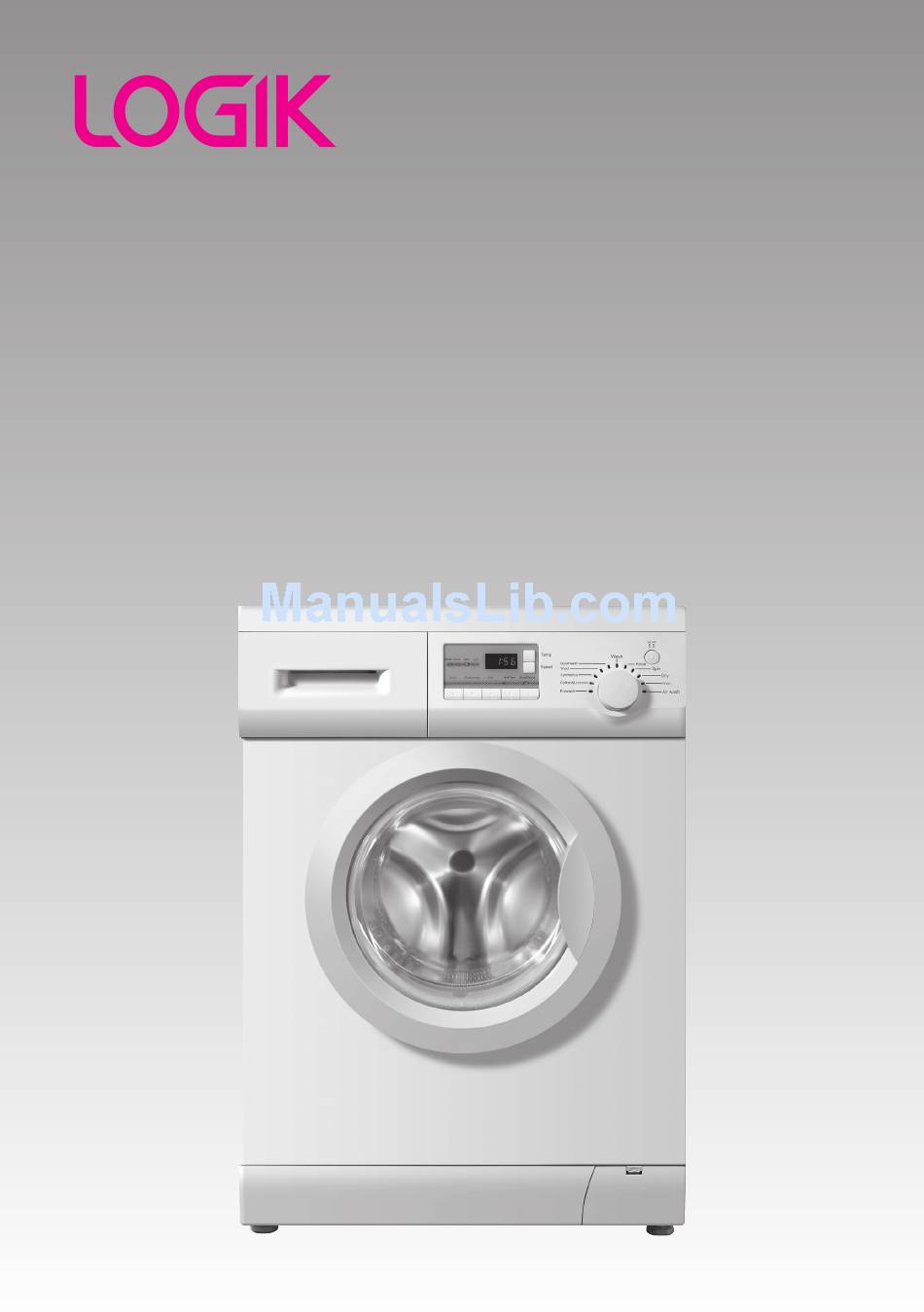

- Page 1 Washer Dryer Installation Guide / Instruction Manual L612WD12 L612SWD12...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 5 Installing Your Washing Machine ....................6 Choosing the Right Location for Your Washing Machine ................ 6 Moving and Installing ......................... 7 Installing the Noise Protection Board ......................7 Removing the Transit Bolts ..........................7 Moving the Washing Machine from One Location to Another .............. 8 Hose and Cable Lengths ............................ - Page 4 Hints and Tips ..........................22 Troubleshooting ........................24 Error Code ................................24 Specifications ..........................26 Product Fiche ..........................27 Safety Warnings ......................... 28...
-
Page 5: Unpacking
Thank you for purchasing your new Logik Washer Dryer. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this installation/ instruction manual for future reference. -
Page 6: Installing Your Washing Machine
INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician. -
Page 7: Moving And Installing
INSTALLATION Moving and Installing Two or more people are required to carry the washing machine and for any installation work. Fix the Noise Protection Board onto the bottom of the machine BEFORE removing the transit bolts. Installing the Noise Protection Board To reduce the noise produced by the washing machine, install the noise protection board. -
Page 8: Moving The Washing Machine From One Location To Another
INSTALLATION To remove the transit bolts: 1. Use a spanner to remove the 3 transit bolts before removing the cross-bar. They are located at the rear side of the washing machine. 2. Make sure the transit bolts and the entire cross-bar are removed. 3. -
Page 9: Levelling The Washing Machine
INSTALLATION Levelling the Washing Machine There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level. 1. On each stand, loosen the lock nut by turning it clockwise with a spanner. 2. -
Page 10: Water Drain Hose
INSTALLATION Water Drain Hose Points to remember: • Don’t twist, pull out or bend the drain hose. • Your washing machine should be no more than 135cm from the drain outlet. Draining to a sink or wash-basin • Secure the drain hose in position, so it can’t drop out of the basin. •... -
Page 11: Product Overview
Product Overview The unit The Control Panel The Detergent Compartment Door Handle Window Filter Door... -
Page 12: The Control Panel
The Control Panel ON OFF Temp Wash Wash Rinse Spin Quickwash Rinse Speed Wool Spin Synthetics Delay Extra rinse Time Start/Pause Cotton&Linen Iron Prewash Air wash 1. The Detergent Compartment • Sets the required washing load. 2. Washing Indicator • Continue to press this button the display of load may cycle in the preset range: • Indicates the washing process of the Prewash, Cotton, Synthetics, Dry,... -
Page 13: Preparation
Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash. -
Page 14: Selecting The Programme
Selecting the Programme Here are the available programmes, additional functions and option settings. Spin speed can be selected separately for certain programmes. Preset Setting Optional Function Default Programme Description Approximate Extra Temperature Spin Delay Time (Min) rinse Time (rpm) Cold Heavily soiled laundry. -
Page 15: Wash Setting
Wash Setting First Time Use Before the first use, run the machine empty with detergent using the cotton 90°C. This ensures any effects from the manufacturing process are removed. Standard Washing 1. Pull the door handle and put the laundry in the drum. ON OFF Make sure no laundry gets caught in the door. -
Page 16: Optional Functions
Optional Functions Depending on the programme you select, you can combine different optional functions. You may need to press the function buttons more than once to get all the functions you want. Optional Function When you want to How it works Water temperature Adjust the water It increases / decreases the water... -
Page 17: Power-Off Memory Function
Power-Off Memory Function This machine has power-off memory function. In case of abrupt power failure or if the power must be cut off during a programme cycle, the present settings will be saved. Once power supply resumes, press the Start/Pause button to continue the preset operation. Washing Machine Memorises The washing machine memorises the previous wash settings for each programme. -
Page 18: Important Information
Important Information Washing Delicates These programmes rock the drum gently for best results on delicate laundry. • Tips for Wool programme: Approximate Weights: - Wool sweater (400g) - Blouse / under garment (200g) - Trousers (400g) Adding Delicate Laundry Items to the Drum •... -
Page 19: How To Set The Key Lock
How to Set the Key Lock The Key Lock prevents children stopping programmes accidentally. It only locks the control buttons not the Programme Dial. 1. Switch the washing machine on. 2. When the washing machine is operating, press and hold the Delay button and Start/Pause button at the same time for 5 seconds to set the keylock. -
Page 20: Maintenance - Cleaning The Washing Machine
Maintenance – Cleaning the Washing Machine Cleaning the Drum Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool. Don’t put laundry in the washing machine during the drum cleaning. Cleaning the Exterior of your Washing Machine •... -
Page 21: Cleaning The Drain Filter
Cleaning the Drain Filter Be careful not to burn yourself while handling your clothes or touching the inside of the drum after a high temperature wash. Before cleaning the drain filter, switch off and unplug the washing machine. 1. Use a coin to open the Service Flap. Turn Service Flap 2. -
Page 22: Hints And Tips
Hints and Tips Problems Solutions Buttons don’t work • Key lock is activated. Deactivate the key lock function. • The washing machine is operating a wash programme. • The Programme Dial was turned to a different programme. Door doesn’t open •... - Page 23 There’s a lot of foam • The amount of foam can vary depending on the temperature, level and softness of your water. • You may have used too much detergent. • The type of detergent you use could cause excess foam. There’s no foam •...
-
Page 24: Troubleshooting
Troubleshooting Troubles Reason Solution • Check that the door is closed tightly. • Check that the power plug is inserted Washing machine correctly. cannot start up • Check that the water supply tap is open. • Check that the ON/OFF button is pressed. Check that the Start/Pause button is pressed. - Page 25 Display Fault What to do: There is a lot of foam in Select and run a programme to fill and then drain the the washing machine or washing machine or ask a qualified technician to repair motor failure. Water overflow. Ask a qualified technician to repair it.
-
Page 26: Specifications
Specifications Model L612WD12 / L612SWD12 Rated Voltage 220 - 240 V ~ Rated Frequency 50Hz Maximum Energy Rated Power Input 2000W Heating Energy Rated Power Input 1000W Dimensions of the Product H=85cm, D= 59cm, W= 59.5cm Weight of the Product... -
Page 27: Product Fiche
Product Fiche Model: L612WD12 / L612SWD12 Rated capacity: 6 kg Energy efficiency class: C EU Ecolabel: N/A Energy efficiency class is “C”, on a scale of A (most efficient) to G (least efficient). Maximum spin speed: 1200 rpm Airborne acoustical noise (spinning): 71 dB Airborne acoustical noise (standard 60°... -
Page 28: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. WARNING! • If you will not be using the washing machine for a while such as when you go on holiday, turn off the water supply to the washing machine. - Page 29 To Prevent Injury • Do not climb on the washing machine. You may hurt yourself or damage the washing machine. • When opening and closing the door ensure you keep fingers away from the door hinge, or this could lead to injury. •...
- Page 30 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Water Supply Hose 0020300158A U-Shape Holder 00221123015002 Noise Protection Board 00213400001800A Cover Cap 00221153000008 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
