PROLiNK PHS101 Quick Installation Manual page 2

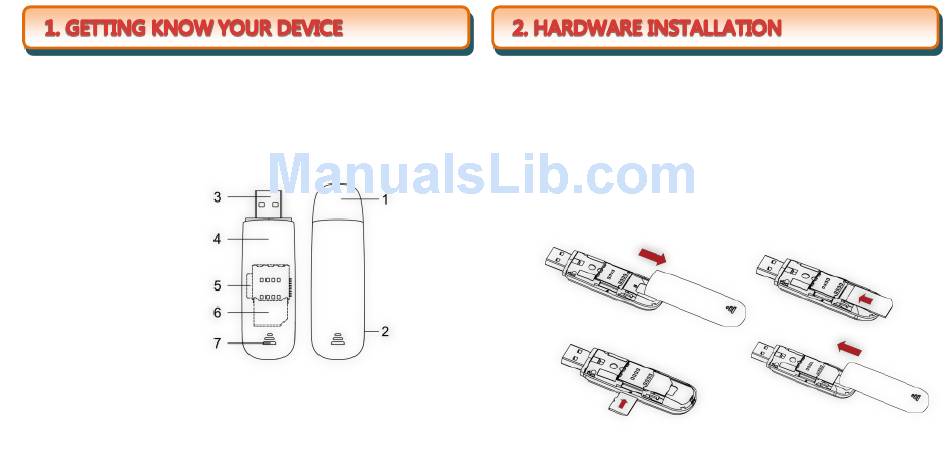

The following figure shows the appearance of the PROLiNK
your reference. The actual product may be different.
1. Modem cap
2. External antenna port
3. USB Connector
4. Front Cover
5. microSD card slot
6. SIM/USIM card slot
7. Indicator
1. Slide the front cover and remove it.
®
PHS101. It is only for
2. Inser t the SIM/USIM card into the SIM/USIM card slot.
3. Insert the microSD card into the microSD card slot if you have it (Optional)
4. Slide the front cover and lock the cover in its place.
NOTE: This modem only supports microSD card.
1.
3.
2.
4.
