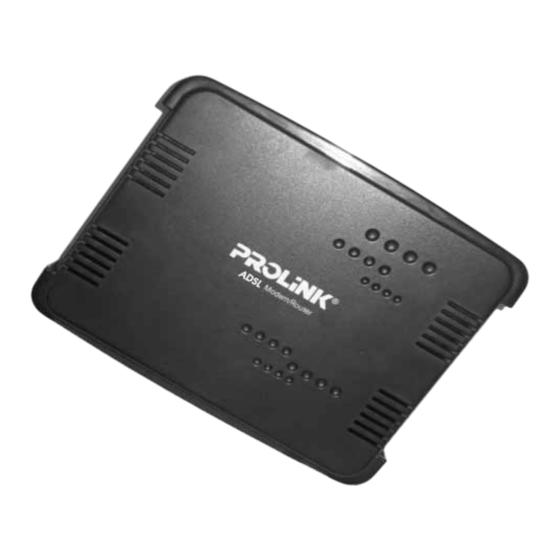

PROLiNK Hurricane 9000S User Manual

1-port adsl modem/router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hurricane 9000S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROLiNK Hurricane 9000S

Summary of Contents for PROLiNK Hurricane 9000S

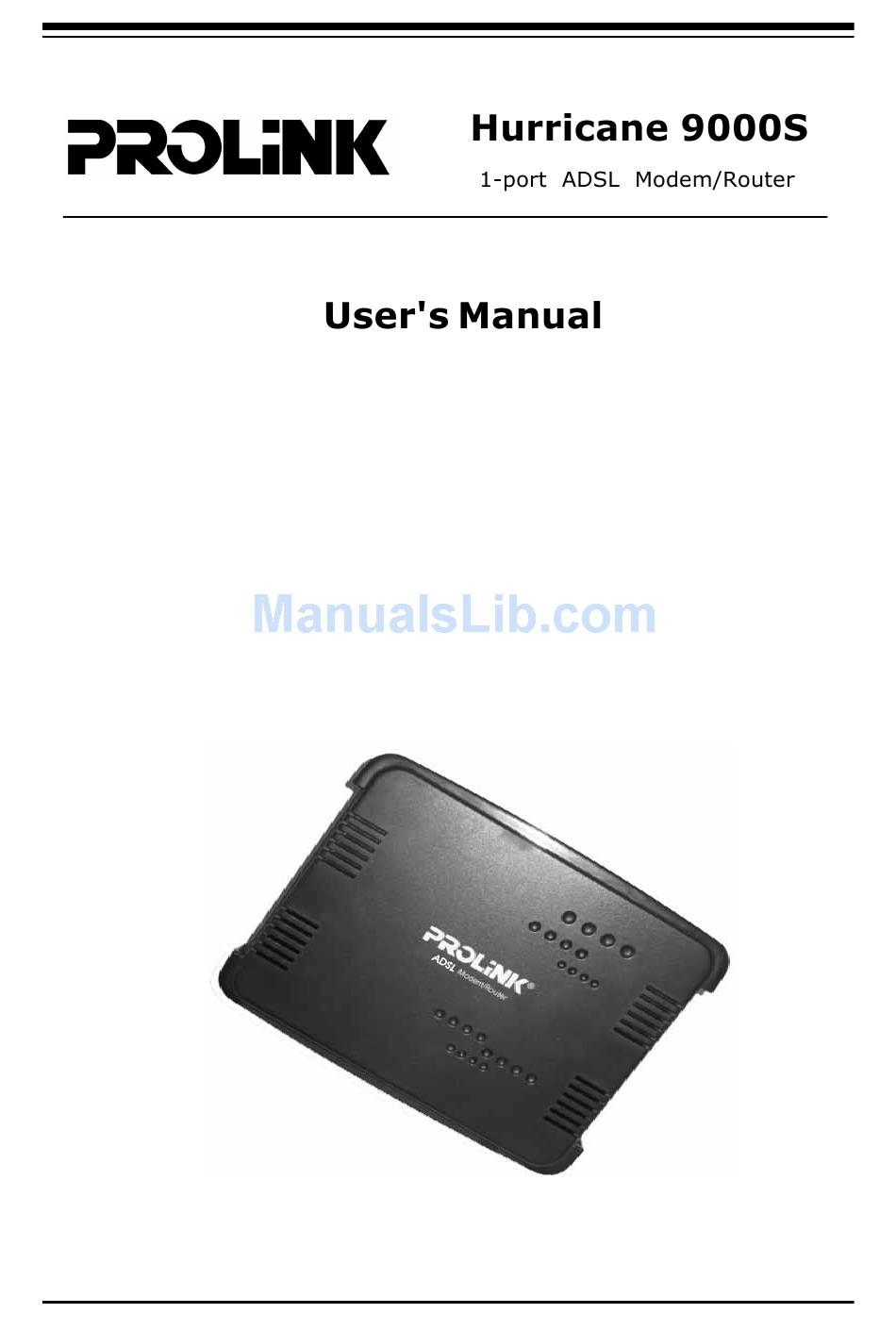

  • Page 1 Version 6...

  • Page 2: Table Of Contents

    Configure your PC ..........10 ... 11 Section Four: Web-Based Management ........13 Login ................ 13 Setup Hurricane 9000S..........14 Status and Advanced settings ........16 4.3.1 WAN/LAN Status ........... 16 4.3.2 PPP Status ............. 16 4.3.3 ADSL Status ............. 17 4.3.4 LAN Configuration ..........
  • Page 3 The information contained in this manual has been verified at the time of this manual's printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners.

  • Page 4: Section One: Introduction

    Section One: Introduction Section One - Introduction 1.1 System Requirements Before connecting the Hurricane 9000S to your PC, make sure your sysytem is equipped with the Ethernet NIC card or USB port and TCP/IP protocol. ADSL Compliance Compliant with ADSL standards: and G.lite (G.992.2).
  • Page 5 Section One: Introduction Bridge Mode Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1D) Supports up to 128 MAC learning addresses· Router Mode IP routingñRIPv2 Static routing DHCP (Dynamic Host Configuration Protocol) Server and Client NAPT (Network Address and Port Translation) NAT (Network Address Translation) ICMP (Internet Control Message Protocol) Simultaneous USB and Ethernet operation·...

  • Page 6: Section Two: Connect The Modem/Router

    Section Two: Connect the Modem/Router Section Two - Connect the Modem/Router 2.1 This Package contents 1. One ADSL Router modem 2. One RJ-45 straight cable 3. One RJ-11 telephone cable 4. One USB cable (optional) 5. One Power Adaptor 6. User's Manual & For any missing items, Please contact your dealer immediately.

  • Page 7: Product View

    Section Two: Connect the Modem/Router 2.2 Product View TX/RX LED Power Switch Power Connector Phone Jack USB Connector RJ45 LAN Jack...

  • Page 8: Hardware Installation

    Section Two: Connect the Modem/Router 2.3 Hardware Installation The following steps instruct you to install the Hurricane 9000S for one computer. For more than one computer, please refer to 2.4 Network Connection. 1. Plug the end of the Ethernet cable into the LAN Jack of the Hurricane 9000S.

  • Page 9: Network Connections

    Section Two: Connect the Modem/Router 2.4 Network Connections 2.4.1 for One PC RJ-45 RJ-11 ADSL or USB Cable (optional) 2.4.2 for more than one PC ADSL HUB/Switch RJ-11 RJ-45 ..2.5 LED Indicators The ADSL Router modem features LED indicators on the front panel that report modem status: POWER Red Power Light / Steady when power is on.

  • Page 10: Section Three: Configure The Pcs

    Section There: Configure the PCs Section Three - Configure the PCs 3.1 Configure your PC. The instructions in this section will help you to configure each computer to communicate with the Router. To do this, you need to configure your PC’s network settings to obtain an IP address automatically from the DHCP of the router.
  • Page 11 Section There: Configure the PCs For Windows XP/2k 1. Go to the Network screen by clicking the Start button. Click Control Panel. From there, double-click the Network Connections icon. 2. Under LAN or Hight-Speed Internet, Right-Click Local Area Connection icon, select Properties. 3.
  • Page 12 Section There: Configure the PCs 3.2 Verify the link between your PC and Router From start > Run Enter ping 10.0.0.2 –t and click OK If the connection has been established, You will receive reply from the router. If you receive “Request timed out”, that means the link has not been established, pls.

  • Page 13: Section Four: Web-Based Management

    Section Four: Web-Based Management Section Four Web-Based Management 4.1. Login Open Internet Explorer /Netscape , type http://10.0.0.2 The system will ask for administrator’s username and password when restarting or configuring. It is illustrated in the following figure. Default username: admin password: password...

  • Page 14: Setup Hurricane 9000S

    Section Four: Web-Based Management 4.2 Setup Hurricane 9000S Click WAN under configuration, Slect Adapter: PVC0 (Malaysia), PVC1(Singapore), press Submit Button.
  • Page 15 Section Four: Web-Based Management Encapsulation: PPPoA, PPPoE, 1483 router, IPoA and 1483 Bridge. Please selct one according to your local ISP designation. (e.g. Singapore/Indonesia: PPPoA VCMUX; Malaysia/Thailand: PPPoE LLC) VPI/VCI: ATM VC of local ADSL Internet Service Provider. (e.g. Singapore: VPI/VCI=0/100; Malaysia: VPI/VCI=0/35; Indonesia: VPI/ VCI=1/33;...

  • Page 16: Status And Advanced Settings

    Section Four: Web-Based Management 4.3 Status and Advanced Settings 4.3.1 WAN/LAN Status. The WAN/LAN Status page shows the WAN , LAN interface status. 4.3.2 PPP Status. The PPP Status page shows the status of PPP for each PVC Connect and Disconnect allows users to manually connect/disconnect the PPP connection for one PVC.

  • Page 17: Adsl Status

    Section Four: Web-Based Management 4.3.3 ADSL Status. The ADSL Status page shows the ADSL physical layer status.

  • Page 18: Lan Configuration

    Section Four: Web-Based Management 4.3.4 LAN Configuration. The LAN page allows user to set the configuration for the LAN port. IP Address/Subnet: LAN address and subnet mask of the router. It can be specified if you need. (e.g. 192.168.0.1/255.255.255.0) DHCP Server System Allocated: The DHCP address pool is based on LAN port IP address plus 12 IP addresses.

  • Page 19: Ppp Configuration

    Section Four: Web-Based Management 4.3.5 PPP Configuration The ppp page allows user to set the sesstion name for PVCs. Showtime Firmware Version: This field displays the Conexant ADSL data pump firmware version number. ADSL Line Status: This field displays the ADSL connection process and status.

  • Page 20: Nat Configuration

    Section Four: Web-Based Management 4.3.6 NAT Configuration The NAT page allows users to set the configuration for the Network Address Translation. NAT Configuration The NAT option only maps single WAN IP address to the local PC IP address. It is peer-to-peer mapping. (1x1) For each PVC, only one local PC IP address can be associated with each WAN PVC.

  • Page 21: Virtual Server

    Section Four: Web-Based Management 4.3.7 Virtual Server The Virtual Server (Port Forwarding) page allows users to set the configuration of Virtual Server. If any specific local PCs need to be mapped to the UDP/TCP port on WAN side, please input the mappings here.

  • Page 22: Bridge Filtering

    Section Four: Web-Based Management 4.3.8 Bridge Filtering The Bridge Filtering page allows users to set the configuration of IP filtering. Source MAC: When the bridge filtering is enabled, enter the Source MAC address, select Block and click Add. Then all incoming WAN and LAN Ethernet packets matched with this source MAC address will be filtered out.

  • Page 23: Dns Configuration

    Section Four: Web-Based Management 4.3.9 DNS Configuration The DNS Configuration page allows users to set the configuration of DNS proxy. It supports the DNS proxy function. For the DHCP requests from local PCs, the DHCP server will set the LAN port IP as the default DNS server.

  • Page 24: Adsl Configuration

    Section Four: Web-Based Management 4.3.10 ADSL Configuration The ADSL Configuration page allows users to set the configuration for ADSL protocols... Trellis: Trellis Code. By default, it is always enabled. Handshake Protocol: This is for the ADSL handshake protocol. Wiring Selection: The wiring selection for the RJ-11. Bit Swapping: Disable by default.

  • Page 25: Learned Mac Table

    Section Four: Web-Based Management 4.3.12 Learned MAC Table The Learned MAC Table page shows the current learned Bridge MAC table. 4.3.13 RIP Configuration The RIP Configuration page allows the user to set the configuration for the system wide configuration of RIP. The actual RIP configuration is in the RIP Per Interface Configuration.
  • Page 26 Section Four: Web-Based Management RIP: This field allows the user to Enable or Disable the RIP session. The resulting RIP session will monitor all network interfaces that are currently available for messages from other RIP routers. Supplier Interval: This field allows the user to enter the Supplier Interval timer in second.

  • Page 27: Misc Configuration

    Section Four: Web-Based Management 4.3.14 Misc Configuration The Miscellaneous Configuration page allows users to set all the miscellaneous configurations. HTTP Server Access: This field allows the user to configure the Web pages can be accessed from. All: When this field is checked, it allows both WAN and LAN access to the Web pages.
  • Page 28 Section Four: Web-Based Management DMZ: A DMZ (De-Militarized Zone) is added between a protected network and an external network, in order to provide an additional layer of security. When there is a suspected packet coming from WAN, the firewall will forward this packet to the DMZ host. DMZ Host IP: The IP address of the DMZ host at LAN side.

  • Page 29: Admin Password

    Section Four: Web-Based Management 4.3.15 Admin Password The Admin Password page allows users to set the password for administrator. 4.3.16 System Log. The System Log page shows the events triggered by the system.

  • Page 30: Firmware Update

    Section Four: Web-Based Management 4.3.17 Firmware Update The Firmware Update page allows users to upgrade the image code locally. Please Click on "Image Download" button, the following dialog will appear Browse the location of file, firmware.dlf, and click the Upload to start the update.

  • Page 31: Section Five: Usb Driver Installation

    If there is no LAN card on your computer, you can use USB cable to connect it to your computer. 1. Connect the USB cable from the Hurricane 9000S to the USB port of your computer. 2. Windows (98/ME/2k/XP) will automatically detect “ USB Device”...

  • Page 32: Section Six: Troubleshouting And Faqs

    Section Six: Troubleshooting and FAQs 6. Troubleshooting and FAQs 6.1. I can not get any connection. Power LED and LAN LED light up, but the ADSL LED keeps blinking . 1) Ensure that the ADSL line is activated. 2) Check that the Telephone cable (RJ-11) is connected to LINE Jack on your router.
  • Page 33 Section Six: Troubleshooting and FAQs 6.4. How to set a static IP address on a PC? The Router, by default, assigns an IP address range of 10.0.0.3 to 10.0.0.14 using the DHCP server on the Router. To set a static IP address, you can only use the ranges 10.0.0.15 to 10.0.0.254 , Each PC or network device that uses TCP/IP must have a unique address to identify itself in a network.
  • Page 34 Section Six: Troubleshooting and FAQs B. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. C. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option.
  • Page 35 Cancel button under Firmware Update. B. Please contact modem vendor for servicing. 6.9 Does Hurricane 9000S series support VPN ? Yes. It can support VPN pass-through. But some VPN servers don’t allow IP: 10.0.0.X to log on, please try to change the default LAN IP from 10.0.0.2...

  • Page 36: Prolink Technical Support

    PROLiNK TECHNICAL SUPPORT At PROLiNK, we are committed to give you the best products as well as the best technical support for installation of ADSL Bridge/Router. If there is virus in your system, we may provide suggestions like where you can find the solution to clean the virus, but we are unable to assist you until the virus is cleaned.
