- Page 1 ® PROLiNK PHS101 USB HSDPA Modem with Micro-SD Slot Quick Installation Guide Version 1.10 (Jul’10) English...

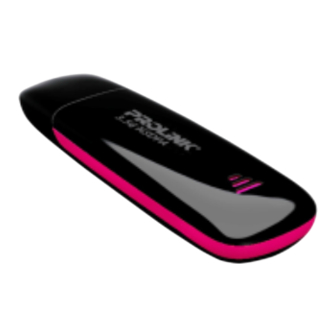

- Page 2 1. Slide the front cover and remove it. ® The following figure shows the appearance of the PROLiNK PHS101. It is only for your reference. The actual product may be different. 2. Inser t the SIM/USIM card into the SIM/USIM card slot.
- Page 3 When you see the following window, please click on “Next” button to proceed the installation 3. The Connection Manager will be auto-launched, and a shortcut icon – PROLiNK PHS101 Modem will be created on the desktop.
- Page 4 Click on the “Connect” button to connect to the internet. Note: If your SIM card can’t be detected by the utility automatically, you need to create a new profile: Click on “Settings” icon on the Utility, then click “Add” button under connection. “Connect”...
- Page 5 Block 16 Kallang Place, #06-02 Kallang Basin Industrial Estate, Singapore 339156. Malaysia FIDA SYSTEMS (M) SDN BHD 29 Jalan USJ 1/31, 47600 Subang Jaya, Selangor Darul Ehsan, Malaysia. Indonesia PROLiNK INDONESIA Jalan Cideng Barat No. 79, Jakarta Pusat 10150, Indonesia.
- Page 6 Email : support@prolink.co.id PROLiNK is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company na mes mentioned herein are trademarks of their respective owners. All specifications, designs and contents are subject to changes without prior notice. © Copyright 2010. PROLiNK all rights...
- Page 7 Please fill up for your self-keeping only. Please fill up and mail out immediately. Note: Warranty Card is only applicable to Indonesia region only. Note: Warranty Card is only applicable to Indonesia region only.
- Page 8 ® PROLiNK PHS101 USB HSDPA Modem with Micro-SD Slot Lembar Panduan Instalasi Versi 1.10 (Jul’10) Indonesia...
- Page 9 Geser tutup depan dan lepaskan. ® The following figure shows the appearance of the PROLiNK PHS101. It is only for your reference. The actual product may be different. Masukkan kartu SIM/USIM kedalam slot card SIM/USIM. Masukkan kartu microSD kedalam slot card microSD jika Anda memilikinya 1.
- Page 10 2. Tunggu sekitar 10-30 detik lalu OS akan secara otomatis mendeteksi dan mengenali perangkat baru, instalasi wizard akan dimulai. Ketika Anda melihat jendela berikut, mohon tekan tombol “Next” untuk proses instalasi. 3. Connection Manager secara otomatis akan muncul, dan icon – PROLiNK PHS101 Modem akan dibuat pada desktop.
- Page 11 Tekan tombol “Connect” untuk dapat terkoneksi ke internet. Catatan: Jika SIM card Anda tidak terdeteksi oleh utility secara otomatis, Anda perlu membuat profile baru berdasarkan SIM card yang Anda gunakan: Pilih icon “Settings” pada Utility, lalu tekan tombol “Add” dibawah connection. “Connect”...
- Page 12 Block 16 Kallang Place, #06-02 Kallang Basin Industrial Estate, Singapore 339156. Malaysia FIDA SYSTEMS (M) SDN BHD 29 Jalan USJ 1/31, 47600 Subang Jaya, Selangor Darul Ehsan, Malaysia. Indonesia PROLiNK INDONESIA Jalan Cideng Barat No. 79, Jakarta Pusat 10150, Indonesia.
- Page 13 Email : support@prolink.co.id PROLiNK is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents are subject to changes without prior notice. © Copyright 2010. PROLiNK all rights...
