PROLiNK PCM100 Quick Installation Manual

www.prolink2u.com
®

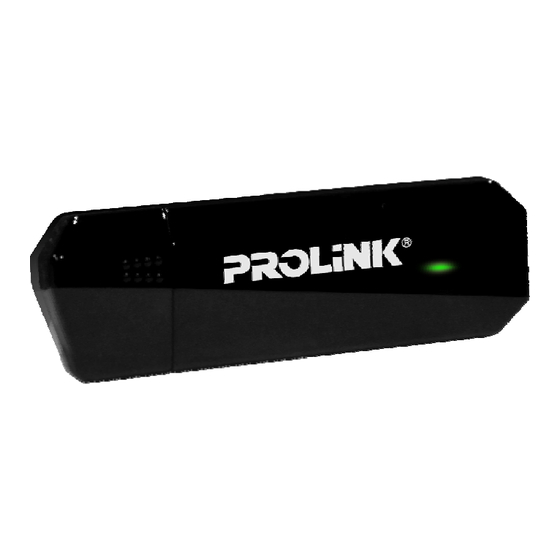

PROLiNK PCM100
EVDO USB Modem
Quick Installation Guide (QIG)
Revision: 1.00 (English)
BEFORE GETTING STARTED
This QIG is designed to aid in the quick installation of your
®
PROLiNK PCM100 EVDO USB Modem. If you experience
problems following these procedures or need further information
regarding your adapter, visit www.prolink2u.com/support to search
our online knowledge base for frequently asked questions and
other common troubleshooting tips and to download the full version
Quick Installation Guide.
4
®
PROLiNK PCM100
EVDO USB Modem
Quick Installation Guide
1. UIM Card Installation
a. Push away the protecting cover of the
product.
b. Insert the UIM Card firmly to the socket
in the direction shown.
c. Close the cover.
1
4. Connecting to the Internet
Click on the "Connect" button to connect
to the internet.
Note: If your ISP profile can't be detected
by the utility, you need to do the following
settings to create a new profile:
a. Click On "SETTING" in the Connection
Manager , Then click on connection
profile.
b. Click on "New", type your Profile Name,
User Name and Password (If needed),
then click on Finish button to save it.
5
2. To Insert Micro SD Card (Optional)
a. Push away the protecting cover of the
product.
b. Insert the Micro SD card into the socket
according to the indicated direction and
confirm the Micro SD card is inserted
completely
c. Close the cover.
2
c. After saved, click on the profile name you
created, press Default button to set it as
Default profile.
d. Click on OK Button , then click CONNECT
button to connect to the internet.
6
3. Driver and Utility Setup
a. Plug the USB Modem into the USB port
on the PC or Laptop.
Note: You can connect the PCM100 to a
laptop or desktop computer using the
USB cable for better signals. Do not
unplug the USB Modem during
installation process.
b. After correctly inserted, the installation
procedure will automatically operate; if
installation procedure can not pop up
automatically, please open My
Computer‐‐‐ MODEM Disk and then
double click Modem_installation.exe to
start installation. Moreover, in the
course of installation, please do not
disconnect the device;
c. After installation, restart the computer
and click and a shortcut icon – PROLiNK
PCM100 will be created on the desktop.
3

Technical Support

Register online for your free warranty.
FREE TECHNICAL SUPPORT HOTLINE:
Mon – Fri: 9am ‐ 6pm
(Closed on Saturdays, Sundays & Public Holidays)
•
Singapore : (65) 6357 0666
•
Malaysia : (60) 3 8024 9151
•
Indonesia : (62) 21 3483 1777
WALK‐IN:
Mon – Fri: 9am ‐ 6pm
(Closed on Saturdays, Sundays & Public Holidays)
ONLINE TECHNICAL SUPPORT:
support@fida.com
7
