Morco 24CPM User Instructions And Installation Manual page 25

- --· · -.·· ~ ''"-=

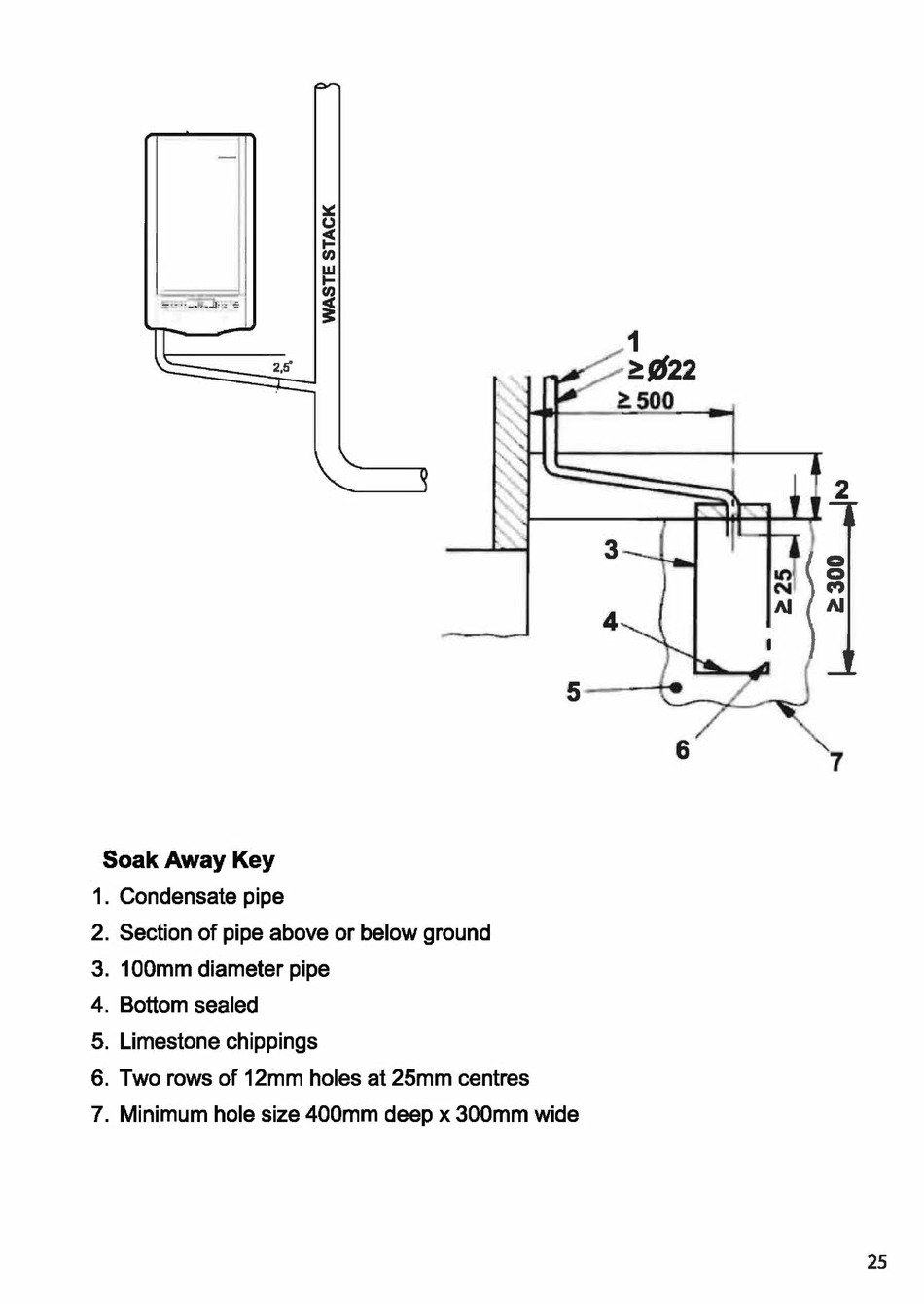

Soak Away Key
1. Condensate pipe
2. Section of pipe above or below ground
3. 100mm diameter pipe
4. Bottom sealed
5. Limestone chippings
6. Two rows of 12mm holes at 25mm centres
1
y ~f/J22
~500
4
5
- ----1"' ·
.-----..::..---~...;
7. Minimum hole size 400mm deep x 300mm wide
0
0
~
' AI
7
25
