  • Page 1: Combination Boiler

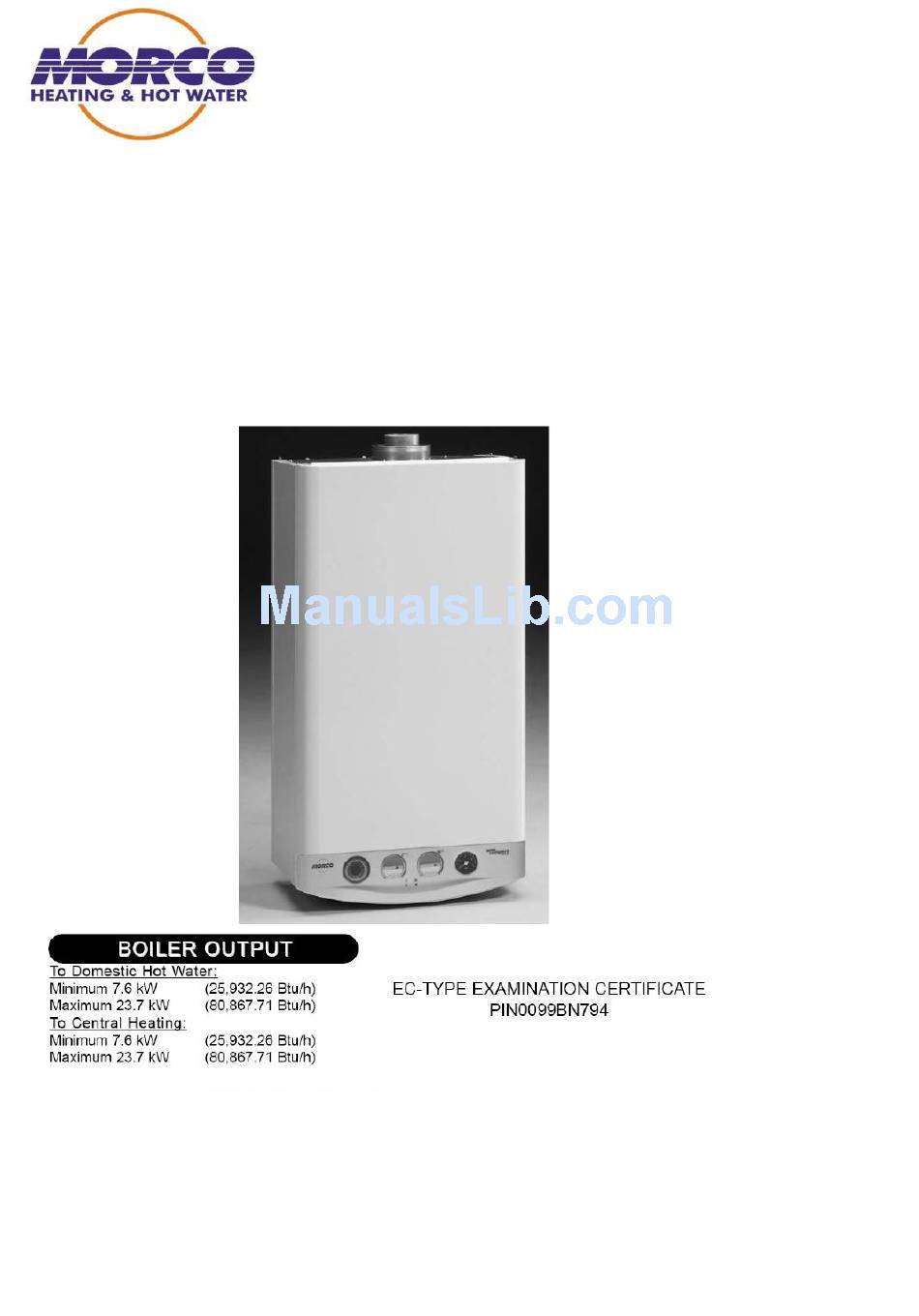

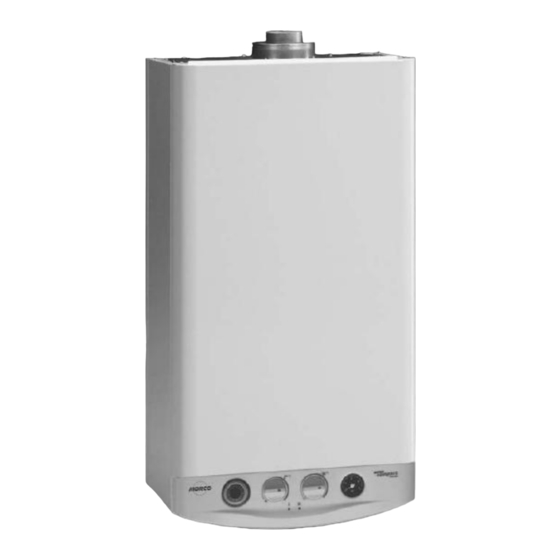

    FEB-24E UK SUPERCOMPACT COMBINATION BOILER USER MANUAL Morco Products Ltd Riverview Road, Beverley, East Yorkshire, HU17 0LD Telephone 01482 325456 Fax 01482 212869...
  • Page 3: Table Of Contents

    CONTENTS Section Page USERS INSTRUCTIONS GENERAL SPECIFICATIONS TECHNICAL DATA GENERAL INSTALLATION REQUIREMENTS INSTALLATION INSTRUCTIONS COMMISSIONING INSTRUCTIONS ROUTINE SERVING INSTRUCTIONS TROUBLESHOOTING (SELF DIAGNOSTIC CODES) 17/18...
  • Page 4: Users Instructions

    1.- USERS INSTRUCTIONS GAS SAFETY (INSTALLATION AND USE) REGULATIONS 1998 (AS AMENDED) It is the law that all gas appliances are installed by a registered person, in accordance with the above regu- lations. Failure to install appliances correctly could lead to prosecution. It is in your own interest, and that of safety, to ensure that the law is complied with.
  • Page 5 USING THE PROGRAMMABLE CLOCK Set the correct time by rotating the minute hand until the arrowhead points at the correct time on the 24 hour dial. 2. Check the position of the manual override switch (just to the bottom of the clock face). This has three positions: -Left: is ON overriding the timer mode -Middle is timer mode, with ON, OFF, times governed by the time clock.
  • Page 6: Frost Protection

    hot. DO NOT PLACE YOUR HANDS under the tap or use the shower until this initial flow has passed. - Allow time (30 seconds) for the temperature to stabilise after making an adjustment at the tap before mak- ing further adjustments. APPLIANCE SAFETY LOCK-OUT This boiler has a cut-out indicator built in to it.
  • Page 7: General Specifications

    A pre-winter check of the amount of antifreeze protection is strongly recommended. The level may have fallen due to leaks in the system requiring frequent refilling from the filling loop. 2.- GENERAL SPECIFICATIONS The Fagor FEB-24E is a wall hung, room sealed, Central heating expansion vessel.
  • Page 8: Electrical Circuit Diagram

    DIMENSIONS AND CONNECTIONS DETAILS T.A. Ø100 85.5 705.8 1.- 3/4” BSP Central heating return 2.- Mains cable 3.-1/2” BSP Domestic cold water inlet 4.- 3/4” BSP Gas inlet 5.- 1/2” BSP D.H.W. outlet FEB-24E 6.- 3/4” BSP Central heating flow 8.- Pressure Relief Valve 5 4 2 9.- Draining valve for central heating...
  • Page 9: Technical Data

    Dimensions (mm) Width Depth Bottom Minimum clearance (mm) Sides Front Gas inlet Domestic cold water inlet D.H.W.outlet Central heating flow Central heating return Net weight (kg) Type of gas Propane G-31 (FEB-24E UK GLP) ∗ ∗ ∗ ∗ 92/42/EEC Directive...
  • Page 10: General Installation Requirements

    4.- GENERAL INSTALLATION REQUIREMENTS 4.1 RECOMMENDATIONS - Ventilation requirements as stated in this manual must be observed. FOR THE USER - Minimum clearance as stated in the technical data This appliance must be installed, adjusted or adapt- must be observed. ed for use with another type of gas, only by a quali- 4.3 FLUE TERMINAL POSITION fied and competent person.
  • Page 11: Ventilation Requirements

    15mm before the boil- - A full bore isolation cock must be fitted in the sup- ply close to the boiler or use morco part number FW0391. - The complete installation must be tested for gas soundness.
  • Page 12: Pressure Relief Valve

    - The following paragraphs outline the specifications - The DHW performance is summarised in the graph: of the items fitted to the boiler. Expansion vessel. D H W Performance graph The following table gives the maximum system vol- ume that the integral 7 l expansion vessel can sustain 60 °C 60 °C 7.55 l/min...
  • Page 13: Installation Instructions

    5.- INSTALLATION INSTRUCTIONS 5.1 BOILER PACKAGING mostat is 24V (normally closed). Any 24V controls may be used, but gold contacts are recommended. The boilers are supplied in different packagings: DO NOT under any circumstances use a mains sup- - Boiler ply to the stat as you will blow the P.C.B.
  • Page 14 5.5 AIR/FLUE SYSTEM The standard flue kit supplied with the FEB-24E is a 1m horizontal coaxial air/flue kit as shown below. There are various other options available, including a vertical flue kit and other variations on the horizontal kit. Please ask for details. Never use a flue system which is not specifically approved for use with this appli- ance.
  • Page 15: Commissioning Instructions

    6.- COMMISSIONING INSTRUCTIONS Before commissioning the appliance, the whole gas 6.3 GAS CIRCUIT installation including the meter (if fitted) MUST be Purge the gas circuit as described above. Turn on purged and tested for gas soundness. the gas cock to the installation and check that there are no leaks using leak detection fluid.
  • Page 16: Front Cover Removal

    6.7 USER’S INSTRUCTIONS (red pilot light). Upon completion of testing the system, the installer To restart the boiler Set the main control on the should: position and then turn it back to the chosen position. The red indicator should go out. - Give the 'users Instructions' to the owner and emphasise their responsibilities under the "Gas IMPORTANT: Whenever the boiler has been left idle...
  • Page 17: Burner And Heat Exchanger

    The cover is held in place by four spring clips and can cold water inlet pipe be removed by grasping it at the top and pulling for- BURNER PRESSURE ward sharply to release. This is factory set, but should you suspect a problem Further access can be gained by removing the con- proceed as follows: There is an easily accessible trol panel.
  • Page 18: Fault Codes

    EXAMPLES: Fault 4, P.C.B. failure, would display the following sequence of the red neon: 5 seconds 1 sec 1 sec 1 sec 1 sec 5 seconds N.B. The sequence repeats itself until either the reset button is depressed or the fault is rectified. Some faults require the component temperature to return to within operating range before reset.
  • Page 20 01482 325456 or contact us at the address below. Our qualified C.O.R.G.I. registered personnel are ready to help and advise you. MORCO PRODUCTS LTD, MORCO HOUSE, RIVERVIEW RD, BEVERLEY HU17 OLD TEL:01482 325456 FAX:01482 212869 EMAIL: SALES@MORCOPRODUCTS.CO.UK WEBSITE: WWW. MORCOPRODUCTS.CO.UK...
