Summary of Contents for National Instruments sbRIO-9229
- Page 1 (217) 352-9330 | Click HERE Find the National Instruments sbRIO-9229 at our website:...

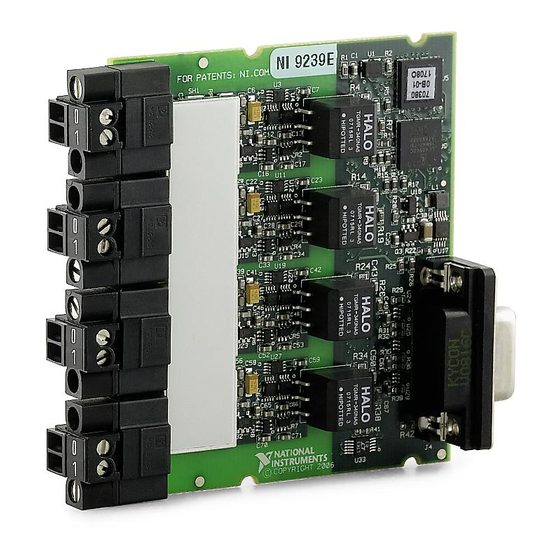

- Page 2 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9229E/9239E 4-Channel, ±60/±10 V, 24-Bit Simultaneous, Channel-to-Channel Isolated Analog Input Modules Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 3 This document describes how to use the National Instruments 9229E and National Instruments 9239E and includes dimensions, terminal assignments, and specifications. In this document, the NI 9229E and NI 9239E are referred to inclusively as the NI 9229E/9239E. Visit and enter ni.com/info...
- Page 4 The following figure shows the dimensions of the NI 9229E/9239E. 73.4 (2.89) 0.0 (0.00) Figure 1. NI 9229E/9239E Dimensions in Millimeters (Inches) © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 5 Connecting the NI 9229E/9239E The NI 9229E/9239E provides connections for four simultaneously sampled, isolated analog input channels. AI0+ AI0– AI1+ AI1– AI2+ AI2– AI3+ AI3– Figure 2. NI 9229E/9239E Terminal Assignments NI 9229E/9239E ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 6 Refer to Figures 3 and 4 for illustrations of how to connect grounded and floating signal sources to the NI 9229E/9239E. © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 7 Signal Source – AI– NI 9229E/9239E Figure 3. Connecting a Grounded Signal Source to the NI 9229E/9239E Signal Source – AI– NI 9229E/9239E Figure 4. Connecting a Floating Signal Source to the NI 9229E/9239E NI 9229E/9239E ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 8 Figure 5 for an illustration of the circuitry for one channel. Overvoltage Protection AI– Amplifier Prefilter NI 9229E/9239E Figure 5. Input Circuitry for One Channel of the NI 9229E/9239E © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 9 Understanding NI 9229E/9239E Filtering The NI 9229E/9239E uses a combination of analog and digital filtering to provide an accurate representation of in-band signals while rejecting out-of-band signals. The filters discriminate between signals based on the frequency range, or bandwidth, of the signal.
- Page 10 0.025 0.000 –0.025 –0.050 Frequency/Data Rate Figure 6. Typical Passband Flatness for the NI 9229E/9239E © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 11: Alias-Free Bandwidth
Stopband The filter significantly attenuates all signals above the stopband frequency. The primary goal of the filter is to prevent aliasing. Therefore, the stopband frequency scales precisely with the data rate. The stopband rejection is the minimum amount of attenuation applied by the filter to all signals with frequencies within the stopband. - Page 12 12.8 MHz, the NI 9229E/9239E has a different set of data rates. © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 13: Sleep Mode
Sleep Mode This module supports a low-power sleep mode. Support for sleep mode at the system level depends on the chassis that the module is plugged into. Refer to the chassis manual for information about support for sleep mode. If the chassis supports sleep mode, refer to the software help for information about enabling sleep mode. -
Page 14: Specifications
Accuracy........±100 ppm max Data rate range ( f ) using internal master timebase Minimum........1.613 kS/s Maximum ........50 kS/s © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 15 Data rate range ( f ) using external master timebase Minimum........390.625 S/s Maximum ........51.2 kS/s ÷ -------------------- - Data rates ) ........, n = 1, 2, …, 31 Input voltage ranges (AI+ to AI–) Module Nominal (V) Typical (V) Minimum (V) NI 9229E...
- Page 16 ±0.008% Uncalibrated max (–40 to 70 °C) ±1.2% ±0.55% Uncalibrated typ (25 °C, ±5 °C) ±0.3% ±0.11% Range equals 62.64 V © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 17 Accuracy, NI 9239E Percent of Percent of Reading Range Measurement Conditions (Gain Error) (Offset Error) Calibrated max (–40 to 70 °C) ±0.13% ±0.06% Calibrated typ (25 °C, ±5 °C) ±0.03% ±0.008% Uncalibrated max (–40 to 70 °C) ±1.4% ±0.70% Uncalibrated typ (25 °C, ±5 °C) ±0.3% ±0.11% Range equals 10.52 V...
- Page 18 Frequency ........0.453 · f Flatness ( f = 50 kS/s) ....±100 mdB max Stopband Frequency ........0.547 · f Rejection........100 dB © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 19 Alias-free bandwidth ......0.453 · f –3 dB prefilter bandwidth = 50 kS/s) ........24.56 kHz CMRR ( f = 60 Hz) NI 9229E ........116 dB NI 9239E ........126 dB SFDR (1 kHz, –60 dBFS)....128 dBFS Total Harmonic Distortion (THD) 1 kHz, –1 dBFS ......
-
Page 20: Power Requirements
Screw-terminal wiring ...... 16 to 28 AWG copper conductor wire with 7 mm (0.28 in.) of insulation stripped from the end © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 21 Torque for screw terminals ....0.22 to 0.25 N · m (1.95 to 2.21 lb · in.) Ferrules ..........0.25 mm to 0.5 mm Weight..........50 g (1.8 oz) Safety Isolation Voltages Connect only voltages that are within the following limits. Channel-to-channel Continuous .........
- Page 22 UL 61010-1, CSA 61010-1 For UL and other safety certifications, refer to the Note product label or the Online Product Certification section. © National Instruments Corp. NI 9229E/9239E Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 23: Online Product Certification
Certification column. Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications. -
Page 24: Environmental Management
Maximum altitude......2,000 m Pollution Degree (IEC 60664) ..2 Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. - Page 25 RoHS National Instruments (RoHS) National Instruments RoHS (For information ni.com/environment/rohs_china about China RoHS compliance, go to ni.com/ environment/rohs_china Calibration You can obtain the calibration certificate and information about calibration services for the NI 9229E/9239E at ni.com/ calibration Calibration interval ......1 year NI 9229E/9239E ni.com...
-
Page 26: Where To Go For Support
Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to ni.com/support everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. - Page 27 Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
