Convaid Carrot 3 Assembly Manual

Hide thumbs Also See for Carrot 3:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

See also: Instruction Manual
CARROT 3 BOOSTER KIT- CHILD RESTRAINT SYSTEM
For Children with Special Needs
Kit Assembly Manual
!
WARNING
Read all instructions
before using this
restraint system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carrot 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Convaid Carrot 3

Summary of Contents for Convaid Carrot 3

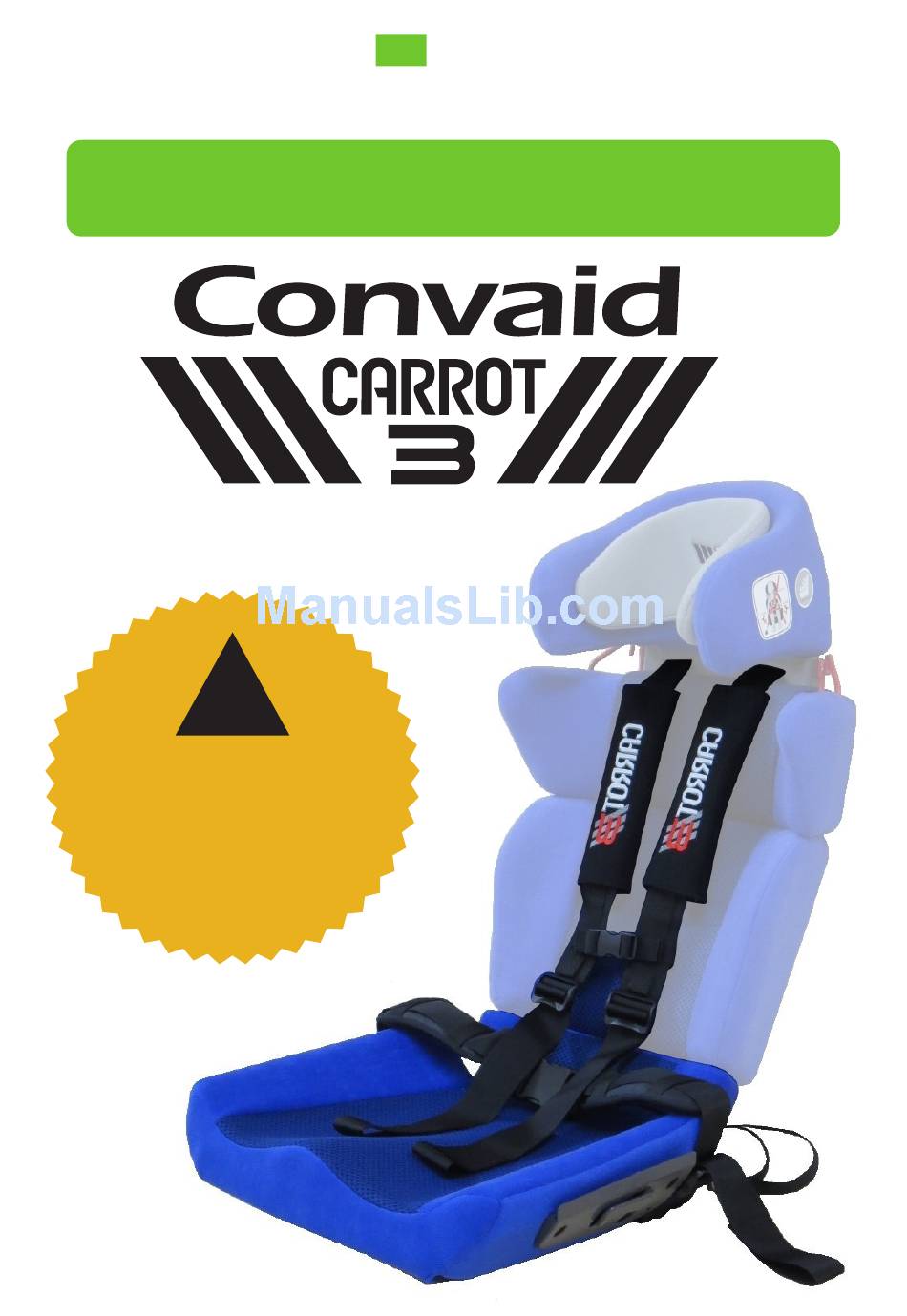

  • Page 1 CARROT 3 BOOSTER KIT- CHILD RESTRAINT SYSTEM For Children with Special Needs Kit Assembly Manual WARNING Read all instructions before using this restraint system.
  • Page 2 Carrot 3 Booster Seat The Carrot 3 Booster Seat offers a larger seat to meet the needs of children who have outgrown the standard Carrot 3 restraint system. Consult your doctor to make sure that this restraint system is suitable for your child.

  • Page 3: Booster Seat

    Booster Seat Replace the standard seat with the Booster Seat using the same backrest assembly. NOTE: Strongly recommend that this Booster Seat installation is done by your local dealer. Remove the Velcro tapes from the back of the Headrest and detach ®...
  • Page 4 The metal rods are interchangeable (Fig. G). Booster Seat Installation Insert the 2” (50mm) longer rods into the standard Carrot 3 backrest while simultaneously pulling the D-Shape Ring on the back (Fig. H & I). D-Shape Ring FIG.H...

  • Page 5: Harness Strap

    Harness Strap Remove the end loops from the Metal Yoke (Fig. J & K). Remove from the Metal Yoke 4-point H-Harness FIG.J FIG.K NOTE: Make sure that the webbing is not twisted. Fold the loop end of the harness into a triangle to easily threading through the front open slots located underneath the Headrest and pull out the back (Fig.
  • Page 6 Pull the H-harness padded cover strap through the same slot used to pull the H-Harness and attach to the back of the headrest with the end of the Velcro strap. Repeat on ® opposite side (Fig. O). H-Harness padded strap FIG.O Re-attach the back loop ends to the Metal Yoke and securely lock it on the eight (8) hooks located on the Yoke (Fig.
  • Page 7 (Fig. S). FIG.S 2” Backrest Extension After successfully converting your standard Carrot 3 child restraint system into a Carrot 3 Booster Seat, it is ready for use. NOTE: Read the Carrot 3 Booster Seat Instruction Manual before using this...
  • Page 8 2830 California Street, Torrance, CA 90503 (888) 266-8243 · (310) 618-0111 · Fax: (310) 618-2166 Website: www.convaid.com · Email: sales@convaid.com UG0022-ENG-Rev-02022016...
