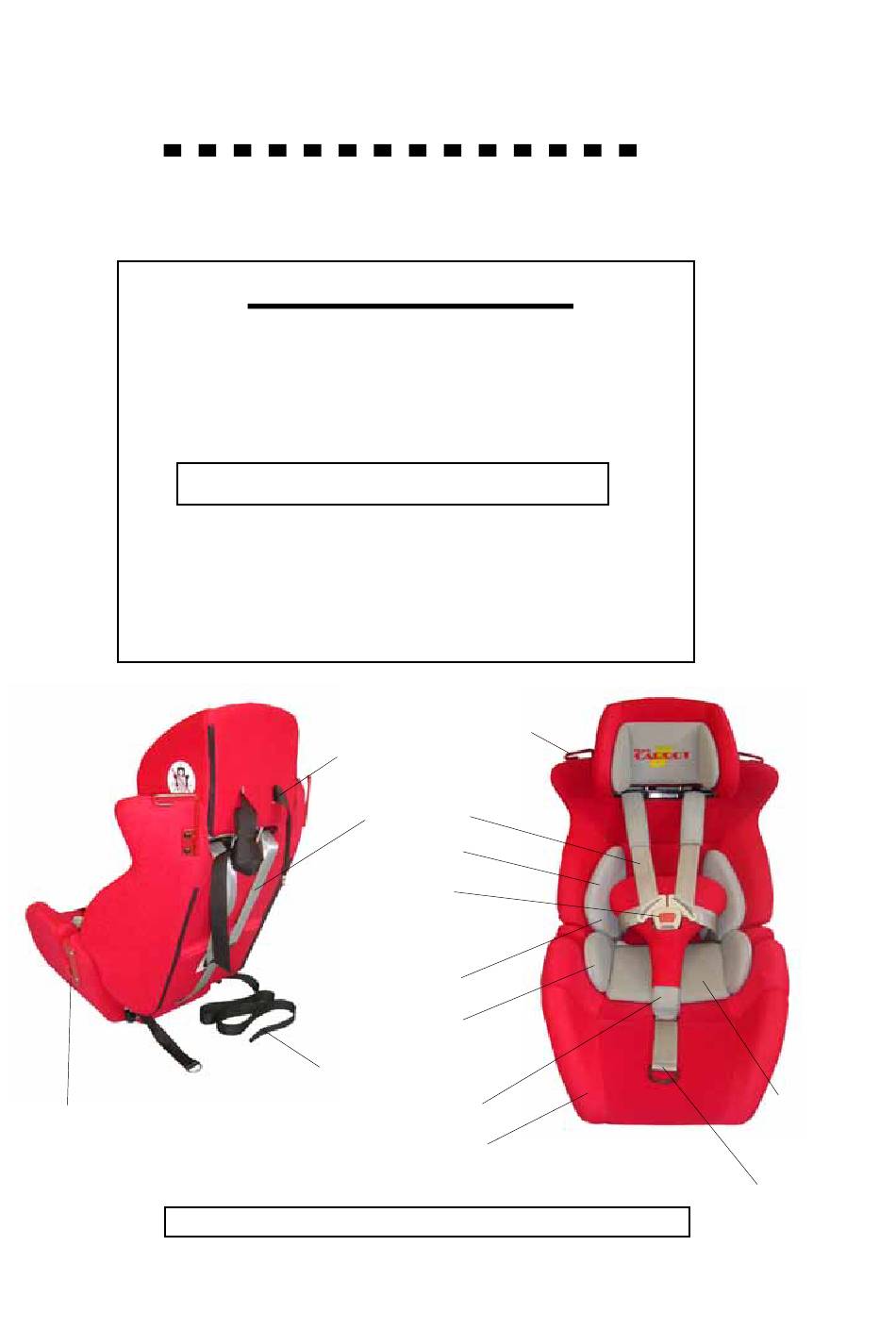

"CARROTⅡ" Support Seat for your car : INSTRUCTIONS Before using a CARROTⅡ ● To ensure safe use of CARROT please read and observe the instructions, Ⅱ particularly, the Safety Precautions. ● Please understand that the instructions must be changed according to the difference of the specifications. KEEPING of the instructions ● A letter of guarantee,is included in the last page. Please keep carefully so that you can take out whenever you need. ● The instructions must be always with the product, when you hand over or lend it . head rest shoulder belt holder fixed belt ,upper part shoulder belt chest pad buckle trunk pad side pad fixed belt, lower part seat pad crotch belt waist belt guide leg support hand-operated EURO CARROT II passed the crash test with a 49kg dummy belt adjuster European Safety Standards "ECE R 44/04 Special Needs Restraint" approved CARROTⅡ is a support seat developed for disabled children to enjoy safety and comfortable drive on your car.
BEFORE USING CARROTⅡ Who can use? ■ Age : 3 around 15 ( depending on a user's physique. See the size table.) ■ Weight: 15 below 49kg Do not use the following car seats for a CARROTⅡ. ■ a car seat without a seat belt ■ a car seat fixed sideways, or backward ■ a car seat of under 40cm in depth ■ a car seat with an extreme dent on the seat, which leads to unstable fixing ■ a car seat with a waist belt with ELR ■ a car seat with a passive seat and 2 point system ELR SAFETY PRECAUTIONS Warning [ This symbol denotes that improper handling poses a high risk of causing death or serious injury.] ■ Do not use a car seat without a seat belt. ■ Before attaching, make it sure that the seat belt is not twisted, and the buckles are locked. ■ Do not use a car seat with an extreme dent on the seat, which leads to unstable fixing. ■ There are various types of seat belts. Before attaching, make sure the type of your seat belt in your car instructions. ■ CARROTⅡ must be attached facing the front with the seat belt of your car. ■ For your safety, do not keep using CARROTⅡ after shocked by a strong collision, even if it looks with no damage. ■...
Page 3
THE WAY TO ADJUST You can adjust the height of the headrest, the backrest, and the chest pad, and also the depth of the seat. To decide the height and the depth to adjust, you put the product on your car seat tentatively, with your child sitting on. 1. Height of the headrest ( able to adjust by 25mm x 4 pitches ) Push the two buttons at the base of the headrest pipe, and pull out the headrest. For the height of more than 50 mm, you need to place the 50mm neck pad, an optional pad. For the height of 100 mm, place the 100 mm neck pad, an optional part.
Page 4
4. Height of the chest pad ( able to adjust 250 mm) You can adjust with the belt adjuster under the chest pad at the proper height of your child. * Ensure that the belt is locked by pulling it with hands after adjustment. Loosen the belt of Lock the belt after Ensure by pulling it out the adjuster belt and putting it through the with hands that the belt decide the height. adjuster. Put the rest is surely locked. of the belt into the gap of the buckle underside. HOW TO ATTACH A CARROTⅡ TO YOUR SEAT Attaching a CARROTⅡ to your car seat 1. Attach the junior seat firmly to your car seat with the fixed belts both on the upper and the lower parts of the CARROTⅡ back seat. In case of a separated car seat, use the upper and the lower fixed belts.
Page 5
USING YOUR CARROTⅡ Let's try CARROTⅡ after adjusting and fixing to your car seat. 1. With one touch of a button, you can adjust the belt to get on and off. CARROTⅡ's non-escape system keeps your child safe, and it makes possible to adjust the length of the belt with one touch of a button. Getting out: push the release button of the hand-operated belt adjuster on the inner part of the front seat, then the shoulder belt is released and the belt is pulled out. Getting on: Shorten the shoulder belt by pulling the belt on the front seat. pushing the release button pulling out the belt of the to pull out the belt hand-operated belt adjuster to shorten the shoulder belt 2. A SEAT BELT OF THREE-POINT-STYLE is a necessary article to fix "CARROTⅡ" to your car seat. Please remember, "CARROTⅡ" needs a seat belt of three-point-style on your car seat. After fixing CARROTⅡ to the seat belt of three-point-style, make sure that a child's neck and face are not disturbed by the belt. Pass your seat belt through the shoulder belt guide on the upper part of CARROTⅡ , and the waist belt guide on the waist part. Both are colored red. 3. Do not recline the back seat too much. Too much reclining may lead the seat belt useless and dangerous. 4. CARROTⅡ itself does not ensure your safety in case of collision. CARROTⅡ...
OPTIONAL PARTS Attachment is completed seat extra pads 50m/m 100m/m triangle mat Attachment is completed kit A Attachment is completed neck pad 100m/m Attachment is completed cushion table Attachment is completed example of a step kit putting together back extra pads 50m/m 100m/m SIZES OF PARTS whole width 470mm width of the trunk about 230mm 270mm(without the front seat) height of the back seat 580〜680mm 445mm(standard) weight seat depth 495mm(with 50mm extra pad) applied weight 15〜under 49kg 545mm(with 100mm extra pad) applied age 3〜around15 ...
Page 7
COVER REMOVE INSTRUCTIONS Remove the covers as follows.(You can put them on in reverse order) 8 Take away 4 bolts of the belt holders L/R on the 1 Take away the shoulder side of the back cushion belt at two points on the with a +screwdriver. back of the seat back. 9 Take away 2 handle nuts on the back of the back 2 Take off the headrest. cushion. 10 Take away the cover by 3 Take off the tongue peeling out the velcro on plate out of the buckle.
2 If unable to take away, please make contact with a dealer. LIMITED WARRANTY 1. The product is warranted free of charge during the period of a guarantee in case of the troubles caused by defects in material. 2. The product is warranted for a period of one year after purchase. 3. This warranty does not cover the following cases. You will bear the cost. (a) failure and improper use (b) modification (c) damages by natural calamity (d) the guarantee certificate without the name and the seal of the dealer where you purchased the product (e) in case you do not show the guarantee certificate 4. This warranty is valid only in case the product is installed in Japan. 5. This guarantee certificate shall not limit your legal rights. Maintenance Service In the event of a problem during the period of the warranty, please contact the dealer where you purchased the product with the guarantee certificate. CAUTION This guarantee certificate is not reissued. Keep it carefully. GUARANTEE CERTIFICATE GUARANTEE CERTIFICATE CARROTⅡ model address customer name date of purchase dealer general agency ...
