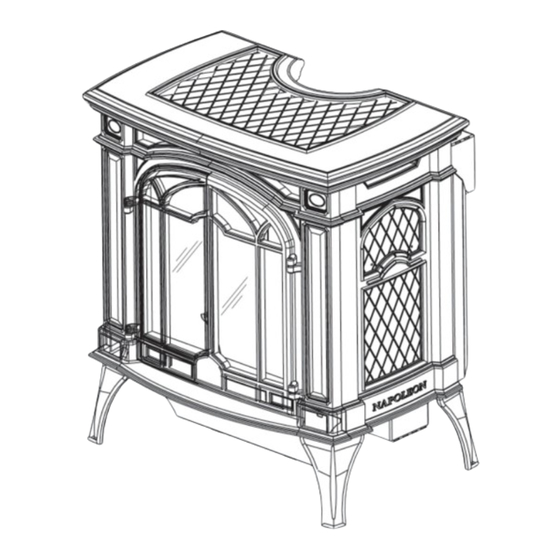

Napoleon GDS25N GDS25P Installation And Operation Instructions Manual

Napoleon fireplaces gds25n gds25p installation and operation instructions
Hide thumbs Also See for GDS25N GDS25P:
Table of Contents

Advertisement

Quick Links

1
W415-0547 / B / 05.08.06
W415-0547 / B / 05.08.06

Advertisement

Table of Contents
loading

Related Manuals for Napoleon GDS25N GDS25P

Summary of Contents for Napoleon GDS25N GDS25P

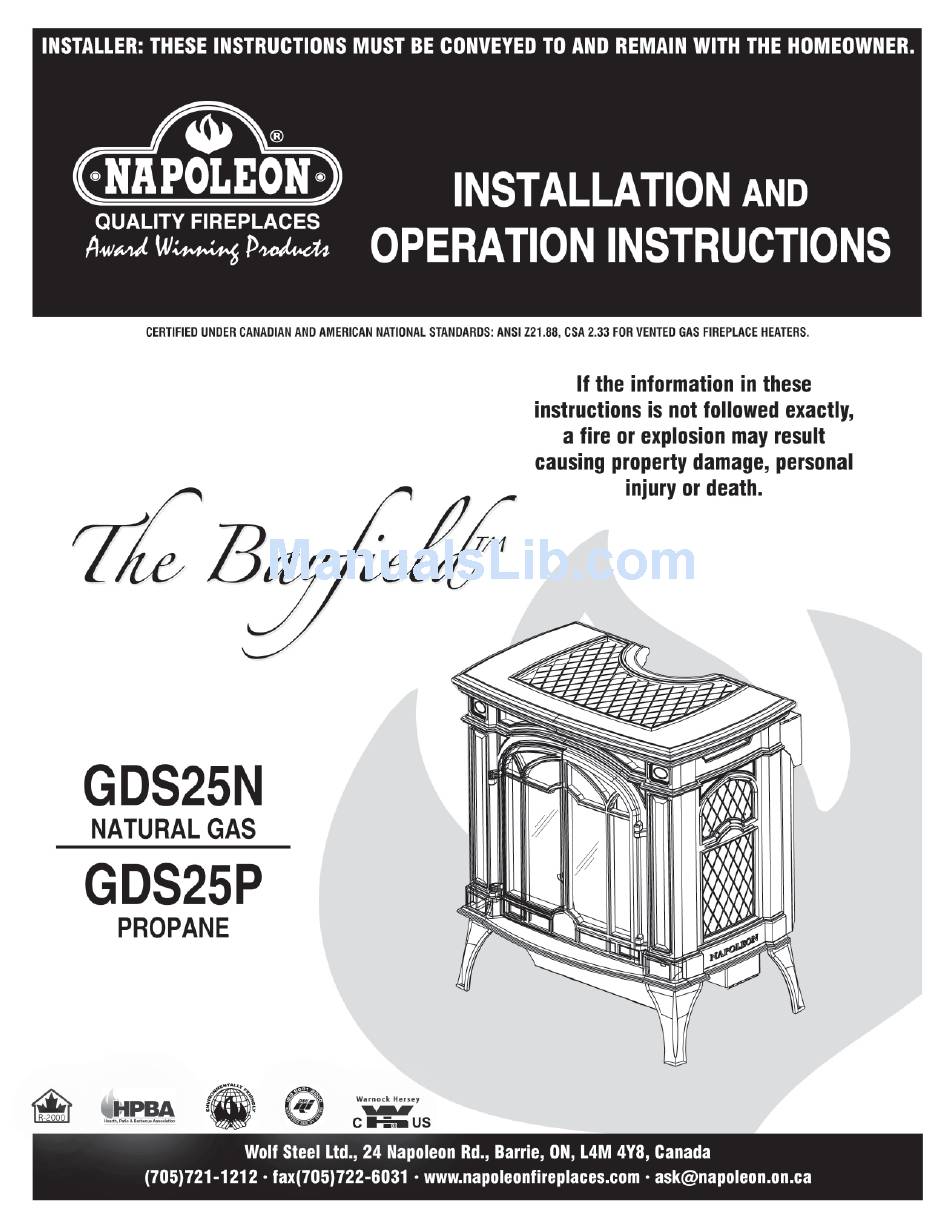

  • Page 1 W415-0547 / B / 05.08.06 W415-0547 / B / 05.08.06...

  • Page 2: Warnings And Safety Precautions

    WARNINGS & SAFETY PRECAUTIONS Do not store gasoline or other flammable vapours and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS Do not try to light any appliance. Do not touch any electrical switch. W415-0547 / B / 05.08.06 Installation and service must be performed by a qualified installer,...

  • Page 3: Table Of Contents

    TABLE of CONTENTS Warnings and Safety Precautions What to do if you smell gas Warranty General Instructions General Information Care of Glass and Plated Parts Location and Clearances Stove Dimensions Clearances to Combustibles Mantel or Shelf Clearances Blower Installation Terminal Installation Venting Venting Lengths and Air Terminal Locations 10.
  • Page 4 NAPOLEON products are manufactured under the strict Standard of the world recognized NAPOLEON products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fi red at a quality test station. The complete fi replace is test-fi...

  • Page 5: General Instructions

    GENERAL INSTRUCTIONS THIS GAS STOVE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local codes. Installation practices vary from region to region and it is im- portant to know the specifi cs that apply to your area, for example: in Massachusetts State: •...
  • Page 6 LOCATION & CLEARANCES Provide adequate accessibility clearance for servicing and operating the stove. Never obstruct the front opening of the stove. 2" AT A DISTANCE OF FROM THE WALL INSTALLATION OR SERVICE TO THE BLOWER MAY NOT BE PRACTICAL BE REQUIRED IN ORDER TO INSTALL THE BLOWER FIGURE 1 MAINTAIN THESE MINIMUM CLEARANCES TO COMBUSTIBLES:...
  • Page 7 BLOWER INSTALLATION Blower ( SEE LOCATION AND CLEARANCES 1. Cut and remove the tie securing the blower switch wires to the heat shield. 2. Connect the white wire coming from below the unit to the terminal on the blower. 3. Connect the black blower wire to the black wire coming from below the unit.
  • Page 8 AIR TERMINAL LOCATIONS INSTALLATIONS CANADIAN U.S.A. 12 INCHES 12 INCHES 12 INCHES 9 INCHES 12 INCHES* 12 INCHES* 18 INCHES** 18 INCHES** 12 INCHES** 12 INCHES** 0 INCHES 0 INCHES 0 INCHES*** 0 INCHES*** 2 INCHES*** 2 INCHES*** 3 FEET 3 FEET**** 3 FEET 3 FEET****...
  • Page 9 VENTING LENGTHS & AIR TERMINAL LOCATIONS Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp or American Metal Amerivent venting components. For Simpson Dura-Vent, Selkirk Direct Temp and American Metal Amerivent, follow the installation procedure provided with the venting components. All outer pipe joints of these venting systems must be sealed using Red RTV High Temperature Sealant.
  • Page 10 TYPICAL VENT INSTALLATIONS NOTE: When terminating vertically above 15', the restrictor plate must be in the fully closed po- sition. Refer to Restricting Vertical Vents. FIGURES 3 a-c SPECIAL VENT INSTALLATIONS PERISCOPE TERMINATION Use the GD201 periscope kit to locate the air termination above grade.
  • Page 11 DEFINITIONS for the following symbols used in the venting calculations and examples are: > - greater than > - equal to or greater than < - less than < - equal to or less than - total of both horizontal vent lengths (H ) in feet - combined horizontal vent lengths in feet - offset factor: .03(total degrees of offset - 135°*) in...
  • Page 12 HORIZONTAL TERMINATION when (H ) > (V Simple venting confi guration (only one 45º and 90° elbow) See graph to determine the required vertical rise V for the required horizontal run H REQUIRED VERTICAL RISE IN INCHES (V HORIZONTAL VENT RUN PLUS OFFSETS IN FEET The shaded area within the lines represents acceptable values for H and V...
  • Page 13 VERTICAL TERMINATION when (H ) < (V See graph to determine the required vertical rise V FIGURE 9 required horizontal run H For vent confi gurations requiring more than one 45º and one REQUIRED VERTICAL RISE IN FEET (V HORIZONTAL VENT RUN PLUS OFFSETS IN FEET The shaded area within the lines represents acceptable values for H...
  • Page 14 VERTICAL TERMINATION when (H ) > (V Simple venting confi gurations See graph to determine the required vertical rise V FIGURE 11 required horizontal run H For vent confi gurations requiring more than one 45º and one 90° elbow , the following formulas apply: REQUIRED VERTICAL R I S E...
  • Page 15 VERTICAL THROUGH EXISTING CHIMNEY INSTALLATION This appliance is designed to be attached to a 3" co-lin- ear aluminum fl ex vent system running the full length of a masonry chimney. The fl exliner accommdates any contours of a masonry chimney, however, it is necessary to keep the fl exible liner as straight as possible.
  • Page 16 WALL AND CEILING PROTECTION FIGURE 16 HORIZONTAL INSTALLATION This application occurs when venting through an exterior wall. Having determined the air terminal location, cut and frame a hole in an exterior wall with a minimum rectangle opening of 10" x 9". IMPORTANT: FOR OPTIMUM PERFORMANCE, THE STOVE PIPE SHOULD RISE ¼"...
  • Page 17 HORIZONTAL VENTING INSTALLATION FOR SAFE AND PROPER OPERATION OF THE STOVE, FOLLOW THE VENTING INSTRUCTIONS EXACTLY. ALL HORIZONTAL VENT RUNS MAY HAVE A 0" RISE PER FOOT. FOR OPTIMUM PERFORMANCE IT IS RECOMMENDED THAT ALL HORIZONTAL RUNS HAVE A MINIMUM ¼...

  • Page 18: Terminal Installation

    STOVE VENT CONNECTION 1. Attach the adjustable pipe to the last section of rigid pip- ing. Secure with screws and seal. 2. Install the 4" aluminium fl exible liner to the stove. Secure with 3 screws and fl at washers. Seal the joint and screw holes using high temperature sealant.

  • Page 19: Finishing

    GLASS DOOR INSTALLATION AND REMOVAL 1. Lift the top cast piece off of the unit. 2. Detach the front cast piece from the side pieces by re- moving the screws from the brackets located in the upper inside corners. 3. Slide the front straight up to remove. DOOR LATCHES SWITCH FUNCTIONS...
  • Page 20 Remove the backing from the the logo and position onto the control door as shown. It is not necessary to remove the cast front, however, this will make for a more simple log installation. In order to assemble the log set, the door must be removed, see Cast Front / Glass Door Removal in the FINISHING section of this manual.
  • Page 21 OPTIONAL SWITCH / WIRING DIAGRAM The on/off switch is located on the back of the GDS25 at the top right corner. For ease of acces- sibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient location. The recommended maximum lead length depends on wire size: Purge all gas lines with the glass door of the fi...
  • Page 22 Purge all gas lines with the glass door removed. Assure that a continuous gas fl ow is at the burner before reinstalling the door. FOR YOUR SAFETY READ BEFORE OPERATING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

  • Page 23: Adjustments

    TURN OFF THE GAS AND UNPLUG ELECTRICAL POWER BEFORE SERVICING THE STOVE! CAUTION: Label all wires prior to disconnection when servic- ing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. This stove and its venting system should be inspected before use and at least annually by a qualifi...
  • Page 24 Contact your dealer for questions concerning prices and availability of replacement parts. Normally all parts can be ordered through your Napoleon dealer or distributor. When ordering replacement parts always give the following information: FOR WARRANTY REPLACEMENT PARTS OF THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM REPLACEMENT PARTS PART #...
  • Page 25 * WARNING: This is a fast acting thermocouple. It is an integral safety component. Replace only with a fast acting thermocouple supplied by Wolf Steel Ltd. W415-0547 / B / 05.08.06...
  • Page 26 TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR REMOVED SYMPTOM PROBLEM Pilot will not light. - Wiring Makes noise with no spark at pilot burner - Loose connection - Module - Igniter Spark gap is...
  • Page 27 SYMPTOM PROBLEM - Wiring / Connection Pilot lights Stops sparking / pilot remains lit - Wiring harness but burner will not turn on - Module or Valve - Fireplace is spilling. Exhaust fumes smelled in room, headaches. - Air shutter has become Carbon is being depos- blocked ited on glass, logs or...
  • Page 28 W415-0547 / B / 05.08.06...
