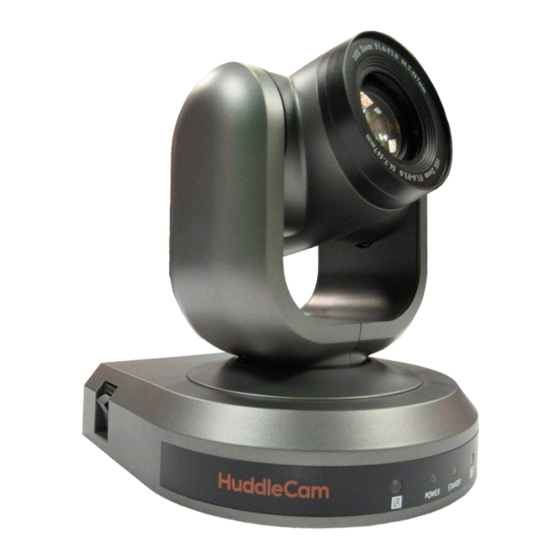

HuddleCamHD 10x (Gen 3)
USB 3.0 PTZ CAMERA
INSTALLATION & OPERATION MANUAL
Please check HUDDLECAMHD.com for
the most up to date version of this document
Ver 1.3 11/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the HC10X-GY-G2 and is the answer not in the manual?

Questions and answers

Summary of Contents for HuddleCamHD HC10X-GY-G2

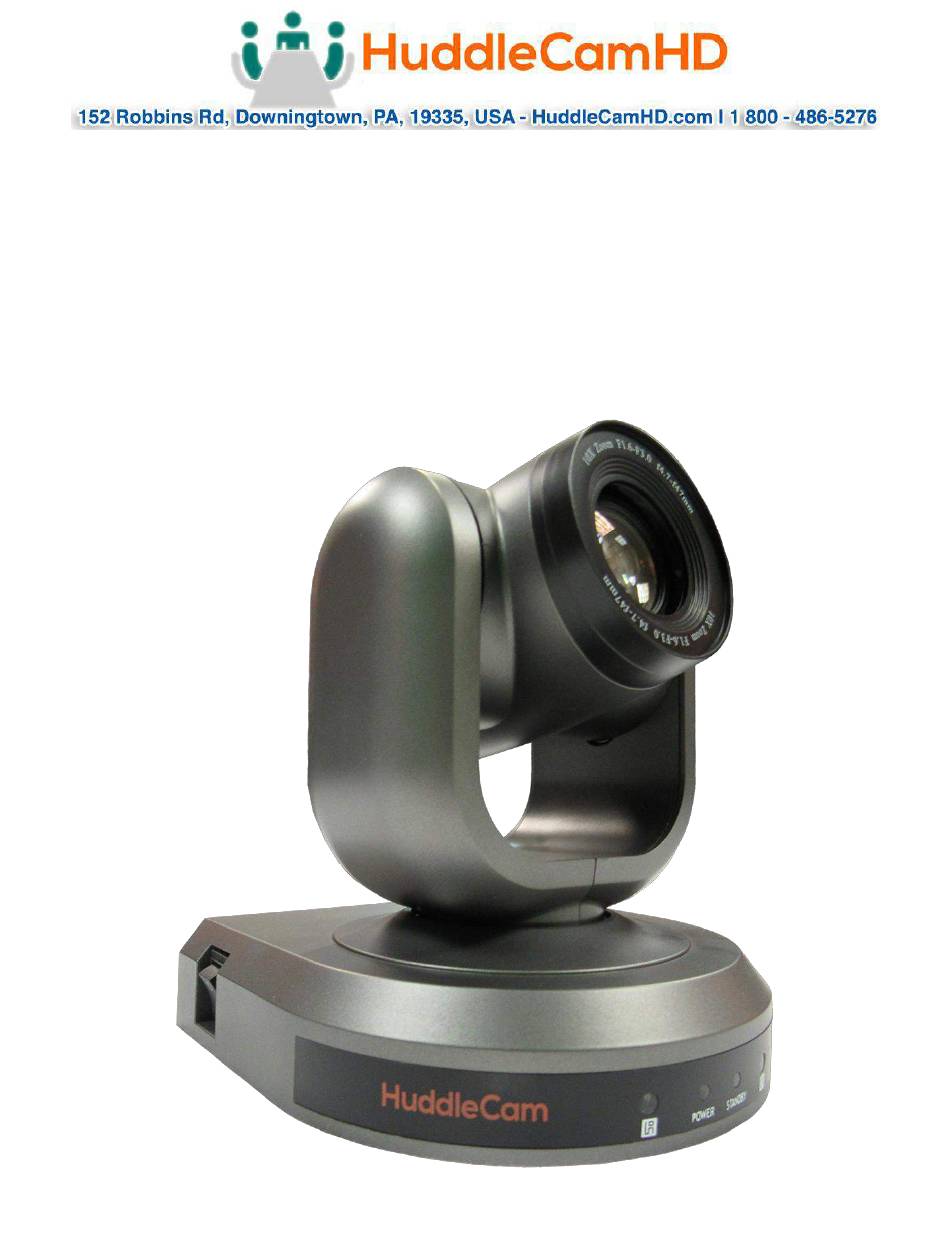

  • Page 1 HuddleCamHD 10x (Gen 3) USB 3.0 PTZ CAMERA INSTALLATION & OPERATION MANUAL Please check HUDDLECAMHD.com for the most up to date version of this document Ver 1.3 11/17...
  • Page 2 Precautions…………………………………………………………………………………………. Safety Tips……………………………………………………………………………………………. • Please read this manual carefully before using the camera. • Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage or installation. • Take care of the camera during installation to prevent damage to the camera case, ports, lens or PTZ mechanism.
  • Page 3 Physical Description……………………………………………………………………… Front View………………………………………………………………………………… Lens IR Receiver To receive IR remote controller signal. Power LED Blue LED lights when unit is powered and on. Stand by LED Orange LED lights when unit is powered and in standby. IR Receiver To receive IR remote controller signal. Page 3 of 19 Ver 1.3 11/17...
  • Page 4 2. Rear View…………………………………………………………………………………………. USB 3.0 Interface For connection to PC USB 3.0 port (also compatible with USB 2.0 port and driver). IR Selective Switch When using only one remote to control more than one camera, this switch will assign a unique ID to each camera. VISCA IN Port For hard wired remote control from a 3 party PC, joystick, etc...
  • Page 5 Bottom View…………………………………………………………………………………. 1. Dip-Switch Used for selecting baud rate and the remote signal output switch. 2. Tripod Will accept 1/4-20 bolt from 3 party tripod, wall or ceiling mount. Page 5 of 19 Ver 1.3 11/17...
  • Page 6 4. Dip-Switch Settings………………………………………………………………………….. Note: When changing Dip-Switch settings, make all changes with camera powered off. Dip-Switch 1 - (To set communication baud rate). Dip-Switch 2 - (To set control protocol). Dip-Switch 3 - (Set only for firmware upgrading). Dip Switch 4 & 5 - (To set camera’s RS232/RS485 ID number – for daisy chain wired control).
  • Page 7 Cable Connection Info………………………………………………………………………… VISCA RS-232C - IN Reference……………………………………………………………… VISCA RS-232C - Out Reference…………………………………………………………… Page 7 of 19 Ver 1.3 11/17...
  • Page 8 OSD MENU…………………………………………………………………………………………….. On Screen Display Menu - Use the OSD menu to access and change the camera’s settings. Note: You cannot manually move the camera (pan/tilt) when the OSD menu is visible on the screen. The Dome OSD Menu is as follows: •...
  • Page 9 ▪ Range = 50Hz or 60 Hz • Preset Freeze (Provides auto freeze frame when switching presets) Default Value: Off ▪ Range = On – Off The Lens OSD Menu is as follows: • BL (BACKLIGHT) Default Value: OFF o ON/OFF •...
  • Page 10 o Set Brightness 0 - 31 Page 10 of 19 Ver 1.3 11/17...
  • Page 11: Ir Remote Controller

    IR Remote Controller (Note: Some buttons do not operate for all camera models) Reset: Restarts the camera and restores it to Factory Default settings. (Note: Will delete all memory). Camera Selection Select Camera ID: 1, 2 or 3 Preset Positions 1-9: Preset Positions Set: Setting Preset Position Clear: Clear Preset Position...
  • Page 12 Pan/Tilt Function Zone L-Limit: Set left boundary limit scanning position Scan: Enable Boundary Scanning (Auto Panning) R-Limit: Set right boundary limit scanning position Home: Go to camera’s Home position Tour: Enable automatic patrol tour of presets Rev: Enable image flip for ceiling mounting Connection Instructions………………………………………………………………………...
  • Page 13 Installation Instructions……………………………………………………………………… Desktop Installation……………………………………………………………………………… When using the HuddleCam on a desk, Make sure that it will stand level. If you want to use the camera on an incline, make sure the angle is less than 15 degrees to ensure that the camera’s pan and tilt mechanism operates normally. Tripod Installation…………………………………………………………………………………...
  • Page 14 Ceiling Mount………………………………………………………………………………………… Step 1: Ceiling For hard ceilings Use the supplied plastic anchors and screws to fix the ceiling bracket to the ceiling. For acoustic tile ceilings cut a piece of plywood 12” x 23.75” to use Ceiling as a tile bridge above the ceiling tile. Use the supplied screws (without plastic anchors) to fix the ceiling bracket to the plywood, Bracket sandwiching the ceiling tile in between.
  • Page 15 Troubleshooting………….………………………………………………………………………… Problem Cause Resolution There is no power to the Power adapter is Check the connections camera. disconnected from mains between the camera, or from camera. power adapter and mains. If anything is disconnected, reconnect Power switch is set to Set the power switch to OFF.
  • Page 16 USB 3.0 camera connectivity. HuddleCam Cameras All HuddleCamHD cameras utilize the UVC (USB Video Class) drivers that are built into Windows, Mac OS and Linux to stream HD video to your device via your device’s USB port (USB 2.0 or USB 3.0 depending upon HuddleCam model).
  • Page 17 In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device (HuddleCamHD) as well as a USB 2.0 device with limited functionality (USB2.0 Camera). If your device has not connected to or has not recognized the HuddleCam as an imaging device (in which case, you may see a new “unknown device”, “Westbridge”...
  • Page 18 Similarly, you can see a connected device in System Information on a MAC. See screenshot below: In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device “HuddleCamHD” as well as a “USB2.0 camera” with limited functionality (USB2.0 camera). Page 18 of 19...
  • Page 19 Specs…………………………………………………………………………………………….. Model Number: HC10X-GY-G2 Camera & Lens • Video CMOS Sensor 1/2.8” CMOS 2.1 Mega Pixel • Frame Rate 30fps 1920 x 1080p, 30fps 1280 x 720p • Lens Zoom 10X Optical Zoom, f=4.7-47mm • Field of View 8° (tele) to 61° (wide) •...
