USING THE TOUCHSCREEN DISPLAY

To simplify use, the 44-850 only displays information relevant to the current mode of operation. When
adjustments are required, the thermostat will display additional information or functional icons. Based
on the thermostat configuration, some information and icons may not be displayed. The illustration

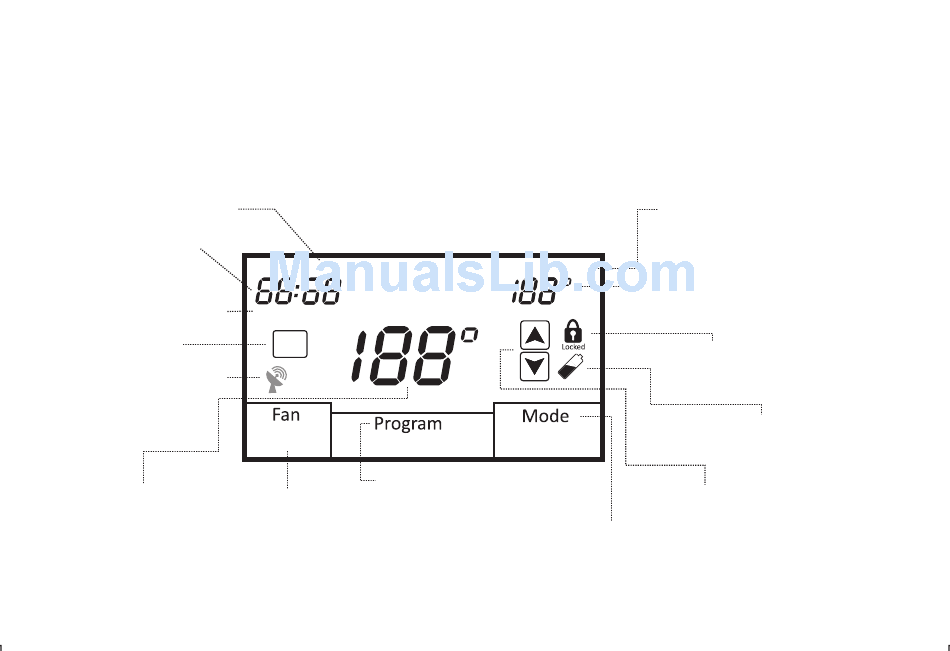

below shows all the LCD segments and icons along with abbreviated definitions.
DAYS OF THE WEEK
TIME OF DAY
12 HOUR ONLY
WITH AM/PM
INDICATION
DAY, MONTH, YEAR (Deg C)
MONTH, DAY, YEAR (Deg F)
CLEAN SCREEN
WHEN TOUCHED, ALLOWS
30 SECONDS TO
CLEAN SCREEN
NO
WHILE THERMOSTAT
FUNCTION
FUNCTIONS ARE
LOCKED
SPACE TEMPERATURE
Mon Tue Wed Thu Fri Sat Sun
PM
AM
88/88/2088
Clean
Screen
ERROR
Back
Automatic
Morning Day
Always On
Evening Night
PROGRAM
USED TO PROGRAM EVENTS
FAN
IN PROGRAMMABLE
USED TO SELECT
MODE
AUTOMATIC OR
ALWAYS ON
OPERATION
Outside Air Temperature
Cool
Heat Set
Next
Hold
Heat 2 3 Cool 2
Auto OFF E. heat
MODE
USED TO SELECT
HEAT, COOL, AUTO,
OFF OR E. HEAT
ALSO DISPLAYS
HEATING AND COOLING STAGES
FLASHES DURING TIME DELAY
4
DISPLAYED WITH OUTSIDE
AIR TEMPERATURE
(OPTIONAL OUTDOOR SENSOR REQUIRED)
SET TEMPERATURE
OR OUTDOOR TEMPERATURE
DISPLAY
LOCK ICON
DISPLAYED WHEN A
FUNCTION CAN NOT
BE ACCESSED OR
EXCEEDING A SET LIMIT
FLASHING LOW BATTERY
INDICATOR WITH
AUDIBLE BEEP EVERY MINUTE
UP AND DOWN ARROWS
USED TO SET TEMPERATURE,
TIME, DAY, MONTH, YEAR
AND OTHER VALUES
