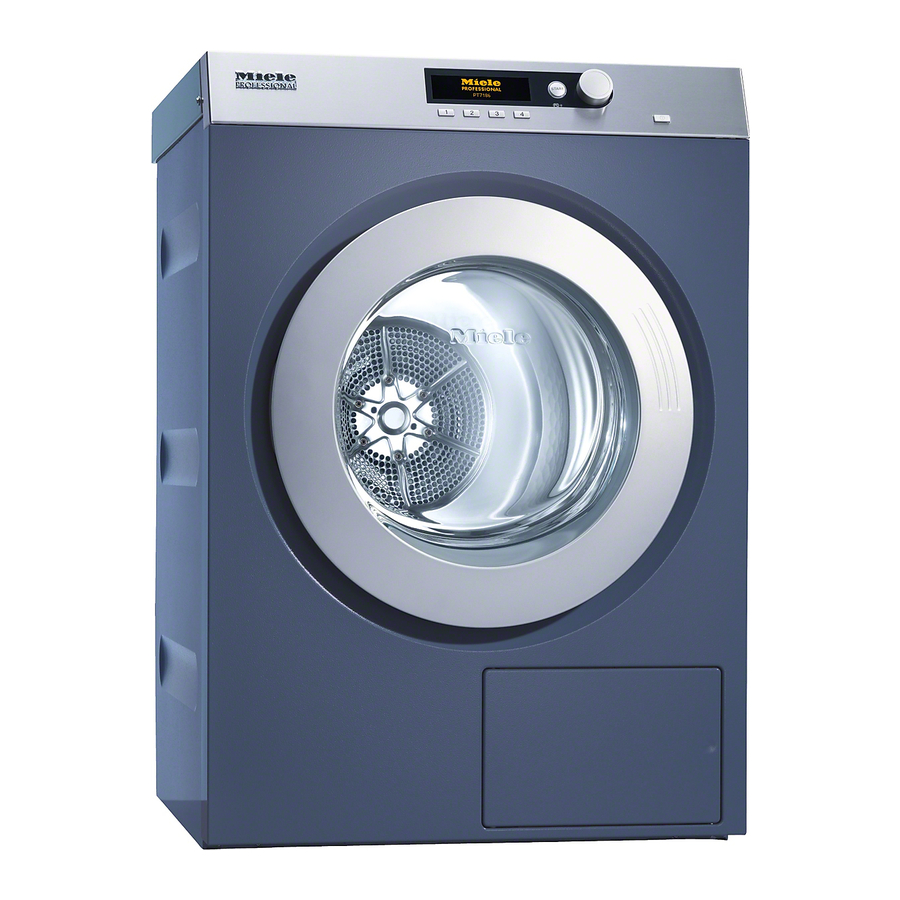

Miele PT 7186 Vario Instruction Manual
  1. Manuals
  2. Brands
  3. Miele Manuals
  4. Dryer
  5. PT 7186 Vario
  6. Instruction manual
Miele PT 7186 Vario Instruction Manual

Miele PT 7186 Vario Instruction Manual

Tumble dryer
Hide thumbs Also See for PT 7186 Vario:
Table of Contents

Advertisement

Quick Links

See also: Operating and Installation Instruction
Tumble dryer Commissioning,
Program chart and Settings
PT 7186 Vario
en - US
To prevent accidents
and appliance damage
read these instructions
before
installation or use.
M.-Nr. 09 146 110

Advertisement

Table of Contents
loading

Related Manuals for Miele PT 7186 Vario

Summary of Contents for Miele PT 7186 Vario

  • Page 1 Tumble dryer Commissioning, Program chart and Settings PT 7186 Vario en - US To prevent accidents and appliance damage read these instructions before installation or use. M.-Nr. 09 146 110...

  • Page 2: Table Of Contents

    Contents Commissioning the tumble dryer ........4 Program overview .
  • Page 3 Contents Clean out airways ..........30 Clean the filter .

  • Page 4: Commissioning The Tumble Dryer

    The commissioning process must be carried out in full to determine the settings for daily operation.* * Some settings can only be altered during the commissioning process. After that, these can only be changed by a Miele service technician. Setting the language J Settings #eština...
  • Page 5 Commissioning the tumble dryer To set the time of day The time may already have been set at the factory. If it has, and is correct, you can skip this section. It is possible to alter the time at any stage via the Settings menu. Settings Back A Time of day...
  • Page 6 Commissioning the tumble dryer Determining target groups By selecting target groups, you are determining the program range of the tumble dryer. You can see which programs are assigned to each target group under "Program chart" later in this booklet. Settings §...
  • Page 7 Commissioning the tumble dryer Payment system Each of these settings must now be Settings for coin operation. confirmed (and altered if required). More details about the settings are No coin box given at the end of this booklet. The additional settings (see below, Place a cross in the box Additional settings "Coin box") are indicate your selection, or fill in the...
  • Page 8 Commissioning the tumble dryer – Signal to pin 7 Supervisor level code Setting the feedback signal for the The Settings/Supervisor level menu can coin box. be locked with a code to prevent it being accessed by unauthorised Program finish personnel (the Language J setting can Release the start button still be altered).
  • Page 9 Commissioning the tumble dryer To repeat the commissioning process If you are not certain that all of the settings are correct, you will need to repeat the commissioning process. Set up successful Back A ^ Select Back and confirm your selection. To finish the commissioning process –...
  • Page 10 Commissioning the tumble dryer – 2. Start a cool air program To complete the commissioning process, a program cycle using cool air (Cool air or Timed drying cool air) needs to be started. If the power to the tumble dryer is switched off before the first program is started (e.g.

  • Page 11: Program Overview

    Program overview Basic programs (Factory default) Cottons max. 17.6 lbs (8 kg) Extra dry, Normal+, Normal Fabric type – Single and multi-layered cotton fabrics such as: – Towelling, T-shirts, underwear, bed linen and baby clothes. – Workwear, jackets, cotton blankets, aprons, face flannels, tea towels, bed linen, towels, table linen that can be washed hot, overalls.
  • Page 12 Program overview Delicates max. 8.8 lbs (4 kg) Normal+, Normal, Hand iron r Fabric type – Delicate items made of cotton, synthetic or blended fabrics, – Thin pullovers, dresses, trousers, overalls, table cloths, shirts, blouses. – Lingerie and appliquéd fabrics. Note –...
  • Page 13 Program overview Smoothing max. 6.6 lbs (3 kg) Fabric type – Cotton and linen fabrics. – Minimum iron items made of mixed fibers, cotton or synthetic fabrics, trousers, anoraks, shirts. Note – Smooths out creasing caused during the spin cycle in the washing machine.
  • Page 14 Program overview Hot air (15-120 min) max. 17.6 lbs (8 kg) Fabric type – Voluminous and multi-layered fabrics whose layers have different drying characteristics, – e.g. jackets, pillows. – For drying individual items. – Bath towels, swimwear, tea-towels. Note – Do not select the longest drying time to start with. Check the items as you are drying them to find the optimum time.

  • Page 15: Household

    Note – The drum does not rotate in this program. For this reason, airing and drying may only be carried out if the Miele drying basket (optional accessory) is fitted in the drum. – Use this program to dry items...

  • Page 16: Small Businesses

    Program overview Small businesses Cottons max. 17.6 lbs (8 kg) Dry plus, dry 0 % residual moisture Fabric type – Single and multi-layered cotton fabrics such as: – towelling, T-shirts, underwear, flannelette bed linen, baby clothes. – Workwear, jackets, cotton blankets, aprons, face flannels, tea towels, bed linen, towels, table linen that can be washed hot, overalls.
  • Page 17 Program overview Timed drying hot air (20-60 min) max. 17.6 lbs (8 kg) Fabric type – Voluminous and multi-layered fabrics whose layers have different drying characteristics, – e.g. jackets, pillows. – For drying individual items. – Bath towels, swimwear, tea-towels. –...

  • Page 18: Bedding

    Program overview Bedding Items are dried at "Normal" in all of these programs. Pillows 1-2 pillows Items – Feather or down pillows. Down duvets 1 duvet Items – Feather or down duvets. Synthetic duvets 1 duvet Items – Synthetic duvets and pillows. Natural fiber blankets 1 blanket Items...

  • Page 19: Fire Service

    Program overview Fire service Face masks 4 masks Items – Breathing masks with head straps Note – Breathing masks may only be dried if special holders (available as an optional accessory) are fitted in the drum. Protective clothing max. 8.8 lbs (4 kg) Normal+, Normal, Hand iron r Items –...

  • Page 20: Professional Cleaners

    Program overview Professional cleaners WetCare sensitive max. 8.8-11 lbs (4-5 kg) Items – For non washable garments Note – Items are dried and aired briefly. WetCare silks max. 6.6-8.8 lbs (3-4 kg) Items – For non washable garments which crease easily. Important –...

  • Page 21: Special Programs

    Program overview Special programs You can create 5 special programs and name these. Enter their details in the table below. – For example: Dry+ – – Residual moisture program – – Final residual moisture – level: -6 % – Additional drying time: 30 min –...

  • Page 23: Changing Default Settings

    Some of the settings may be changed. – Code required All of the settings may be changed. Please contact the Miele Service Department for details. Note regarding the commissioning of the tumble dryer The tumble dryer must be commissioned as described at the beginning of this...

  • Page 24: Settings/Supervisor Level Menu

    Settings/Supervisor level menu To open the Settings menu If the Settings menu is not locked, some of the settings may be changed. Cottons Program selection ... Minimum iron Settings F ... Woollens handcare 10:00 Smoothing ^ Select Settings J from the main menu and confirm your selection with the jog shuttle.

  • Page 25: To Open The Settings Menu Via The Supervisor Level

    Settings/Supervisor level menu To open the Settings menu via the Supervisor level The Settings menu can be locked against unauthorized use (the Language J can still be changed). It will then only be able to be accessed at Supervisor level by entering a code.

  • Page 26: Language J

    Settings/Supervisor level menu Language J Language menu The display can be set to appear in You can select whether you want an one of several different languages. additional welcome screen asking for a language to be selected to appear To select the language you want, go to again after the end of a program and the Languages J sub-menu.

  • Page 27: Supervisor Level

    Settings/Supervisor level menu Supervisor level Buzzer You can alter the access code to the When the buzzer function has been supervisor level. activated, an audible tone sounds at the end of a program. ^ Enter the current code. – Off ^ Enter a new code.

  • Page 28: Time Of Day

    Settings/Supervisor level menu Time of day Display contrast First select whether you want the Display brightness clock displayed as a 24 hour or 12 hour clock, or to not display it at all. There are ten different display Then set the current time of day. contrast and display brightness settings.

  • Page 29: Standby

    Settings/Supervisor level menu Standby You cannot extend the cooling down time for the Warm air, Cool air, To save energy, the display goes out Woollens handcare or Smoothing after 10 minutes and the indicator programs. light for the Start button flashes slowly.

  • Page 30: Drying Levels

    Settings/Supervisor level menu Drying levels Clean out airways The electronic unit in the dryer Cottons drying levels detects the degree of a blockage caused by fluff or detergent residues Minimum iron drying levels in the fluff filter or ducting, and the following prompt comes up in the Automatic drying levels display: Clean out airways...

  • Page 31: Clean The Filter

    Settings/Supervisor level menu Clean the filter Delay start The filter in the ducting should be You can set a later start time using cleaned regularly. the Timer (see "Timer" in the In addition to the Clean airways Operating and installation setting, you can decide after how instructions).

  • Page 32: Controls

    Supervisor level. If you need to access it please Compile the 12 programs first, contact the Miele Service before you activate the Laundrette Department. option (see Favorites setting in this...

  • Page 33: Logo

    Settings/Supervisor level menu Logo Special programs The welcome logo "MIELE" or You can create 5 special programs, "CUSTOMER'S LOGO" appears with which can either be residual moisture control options WS-shortcut keys + programs or timed programs and Logo, WS-shortcut keys ex/int time.

  • Page 34: To Set Special Programs

    Settings/Supervisor level menu To set Special programs Special programs must first be activated under the Target groups setting. Settings Back A Special programs S.prog1 S.prog2 S.prog3 ^ Select S.prog1, 2, 3, 4 or 5. Settings Back A Special programs Res. moisture prog. Timed program ^ Decide whether you want to select a residual moisture or a timed program.
  • Page 35 Settings/Supervisor level menu ^ Using the jog shuttle, select and Residual moisture program confirm each letter or symbol in turn Final residual moisture level to create the program name. – from -6% (dry) to 40% (damp). A maximum of 7 symbols may be entered.

  • Page 36: Settings Which Can Only Be Changed During The Commissioning Process

    If you wish to change the settings after programming changes can be made within a specified time period without the commissioning process, please contact the Miele Service Department. losing the coins. – Off Payment system – Immediately after starting A coin box needs to be fitted.

  • Page 37: T-Max Exceeded

    Settings/Supervisor level menu T-max exceeded Duration hot air T-max exceeded setting. A security This determines the maximum time margin to prevent the coin box duration for the Hot air program in being tampered with. Controls option WS short cut keys, ex/int time .
  • Page 40 Alteration rights reserved/4811 M.-Nr. 09 146 110 / 00 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
