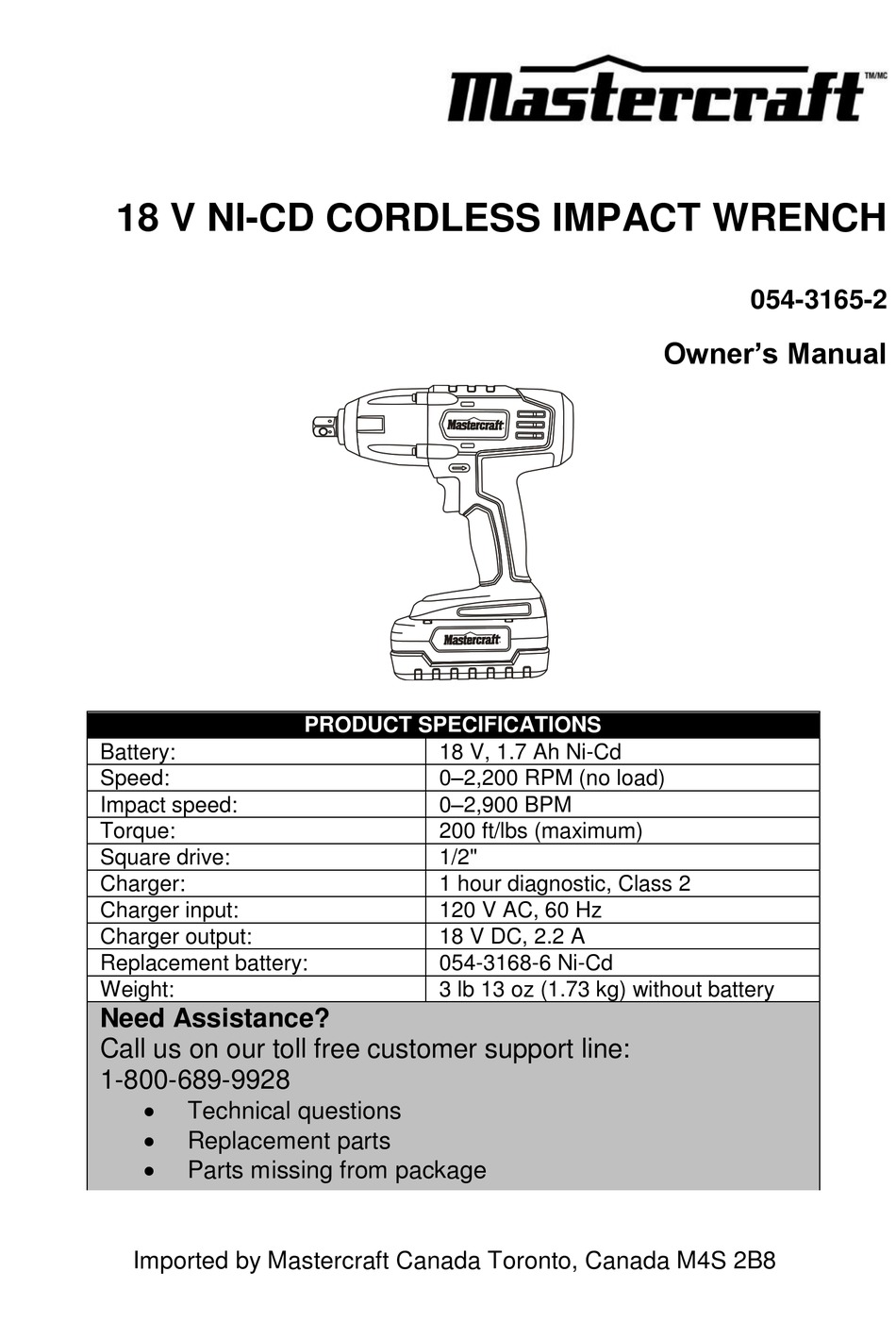

18 V NI-CD CORDLESS IMPACT WRENCH
Battery:
Speed:
Impact speed:
Torque:
Square drive:
Charger:
Charger input:
Charger output:
Replacement battery:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-800-689-9928
Technical questions
Replacement parts
Parts missing from package
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
PRODUCT SPECIFICATIONS
18 V, 1.7 Ah Ni-Cd
0–2,200 RPM (no load)
0–2,900 BPM
200 ft/lbs (maximum)
1/2"
1 hour diagnostic, Class 2
120 V AC, 60 Hz
18 V DC, 2.2 A
054-3168-6 Ni-Cd
3 lb 13 oz (1.73 kg) without battery
054-3165-2
Owner's Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MasterCraft 054-3165-2
Summary of Contents for MasterCraft 054-3165-2
-
Page 1: Product Specifications
Weight: 3 lb 13 oz (1.73 kg) without battery Need Assistance? Call us on our toll free customer support line: 1-800-689-9928 Technical questions Replacement parts Parts missing from package Imported by Mastercraft Canada Toronto, Canada M4S 2B8... -
Page 2: Table Of Contents
TABLE OF CONTENTS Product specifications ………….………………………………………………………………... Table of contents ……………………………………………………………………....General safety warnings ………………………………………………………………………… 3–4 Eye, ear & lung protection ………………………………………………………………………. 3–4 Electrical safety …………………………………………………………………………………... Power tool safety ……………………………………………………………………....5–6 General safety rules ……………………………………………………………………………... Work area ………………………………………………………………….……………………... Electrical safety …………………………………………………………………………………... Personal safety …………………………………………………………………………………... -
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product. -
Page 4: Electrical Safety
GENERAL SAFETY WARNINGS WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities. -
Page 5: Power Tool Safety
POWER TOOL SAFETY If operating a power tool in a damp location WARNING: Read all safety warnings is unavoidable, use a residual current device and instructions. Failure to follow the warnings (RCD) protected supply. Use of a ground fault and instructions may result in electric shock, fire circuit interrupter (GFCI) reduces the risk of and/or serious injury. -
Page 6: Power Tool Use And Care
POWER TOOL SAFETY PERSONAL SAFETY – cont’d Battery tool use and care Power tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for Do not force the power tool. Use the correct one type of battery pack may create a risk of fire power tool for your application. -
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES WARNING: After installing any accessory in the hex drive, Know your cordless impact pull outward on the accessory to ensure it is wrench. Do not plug in the charger or install properly installed and cannot be pulled out of the battery in the tool until you have read the hex drive. -
Page 8: Battery & Charger Safety
BATTERY & CHARGER SAFETY WARNING: Do not use the charger to charge any batteries Only use the charger other than the cordless impact wrench batteries. supplied with this kit to charge the 18V Other batteries may explode. battery. Charging any other batteries may damage the charger and possibly cause Do not operate charger if the cord or plug is serious injury. -
Page 9: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the cordless impact wrench. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes No load speed Hertz... -
Page 10: Know Your Cordless Impact Wrench
KNOW YOUR CORDLESS IMPACT WRENCH 1/2" square drive Air vents Forward / Variable speed reverse switch trigger switch Battery Battery charge #054-3168-6 indicator LED’s Battery charge test button Battery charger Green... -
Page 11: Assembly And Operating
ASSEMBLY AND OPERATING CHARGING THE BATTERY PACK Place the battery charger (1) in a dry location near a 120 V 60 Hz electrical outlet (Fig. 1) Turn the battery pack up side down and slide it onto the charger (2). NOTE: Make sure the battery pack is fully engaged with the charger. -
Page 12: Installing A Battery Pack In The Impact Wrench
ASSEMBLY AND OPERATING INSTALLING THE BATTERY PACK IN THE NOTE: Slide the socket fully onto the square IMPACT WRENCH drive so the socket retainer (3) will hold the socket firmly in place. Remove the discharged battery pack (1) from the tool by pressing the battery release button (2) on the rear of the battery downward (Fig. -
Page 13: Variable-Speed Trigger Switch
ASSEMBLY AND OPERATING VARIABLE SPEED TRIGGER SWITCH WARNING This impact wrench is equipped with a variable speed ON/OFF trigger switch. For safety reasons, the operator must read the sections of this Owner’s Manual To start the impact wrench, gently squeeze entitled "GENERAL SAFETY the trigger switch (2) (Fig. - Page 14 ASSEMBLY AND OPERATING REMOVING FASTENERS – cont’d Insert the battery in the tool (Fig. 4). Grasp the impact wrench handle (1) with one hand and the front housing of the impact wrench (2) with the other hand (Fig. 8). Place impact socket (3) onto the wheel nut. NOTE: Make sure the socket is fully engaged with the nut to avoid potentially damaging the socket or the wheel nut.
-
Page 15: Maintenance
MAINTENANCE GENERAL BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING WARNING: When servicing, use only To preserve our natural resources, please identical replacement parts. The use of any recycle or dispose of batteries properly. other part may create a hazard or cause product damage. -
Page 16: Nickel-Cadmium Battery Maintenance
MAINTENANCE NICKEL-CADMIUM BATTERY Every two months or after 30 MAINTENANCE charge/discharge cycles, whichever comes first, fully discharge your battery. Nickel-cadmium batteries are powerful, rugged To fully discharge the battery, place it in and provide hundreds of charge/discharge the tool that it came with and work with the cycles if properly maintained and periodically tool until it nearly stops and no longer "exercised". -
Page 17: Exploded View
EXPLODED VIEW... -
Page 18: Parts List
PARTS LIST ® WARNING: When servicing, use only Mastercraft replacement parts. The use of any other parts may create a safety hazard or cause damage to the tool. Any attempt to repair or replace electrical parts on this tool may create a safety hazard unless repairs are performed by a qualified technician. -
Page 19: Warranty
3-Year Limited Warranty This Mastercraft® product is guaranteed for a period of three (3) years from the date of original retail purchase against defects in workmanship and materials, except for the following components: Component A: Batteries, chargers and carrying cases, which are guaranteed for a period of two (2) years from the date of original retail purchase against defects in workmanship and materials;... - Page 20 Mastercraft® is a superior line of products selected for their workmanship and materials. These products are designed to meet rigorous quality and performance standards, and are approved by our Quality Assurance laboratory.
