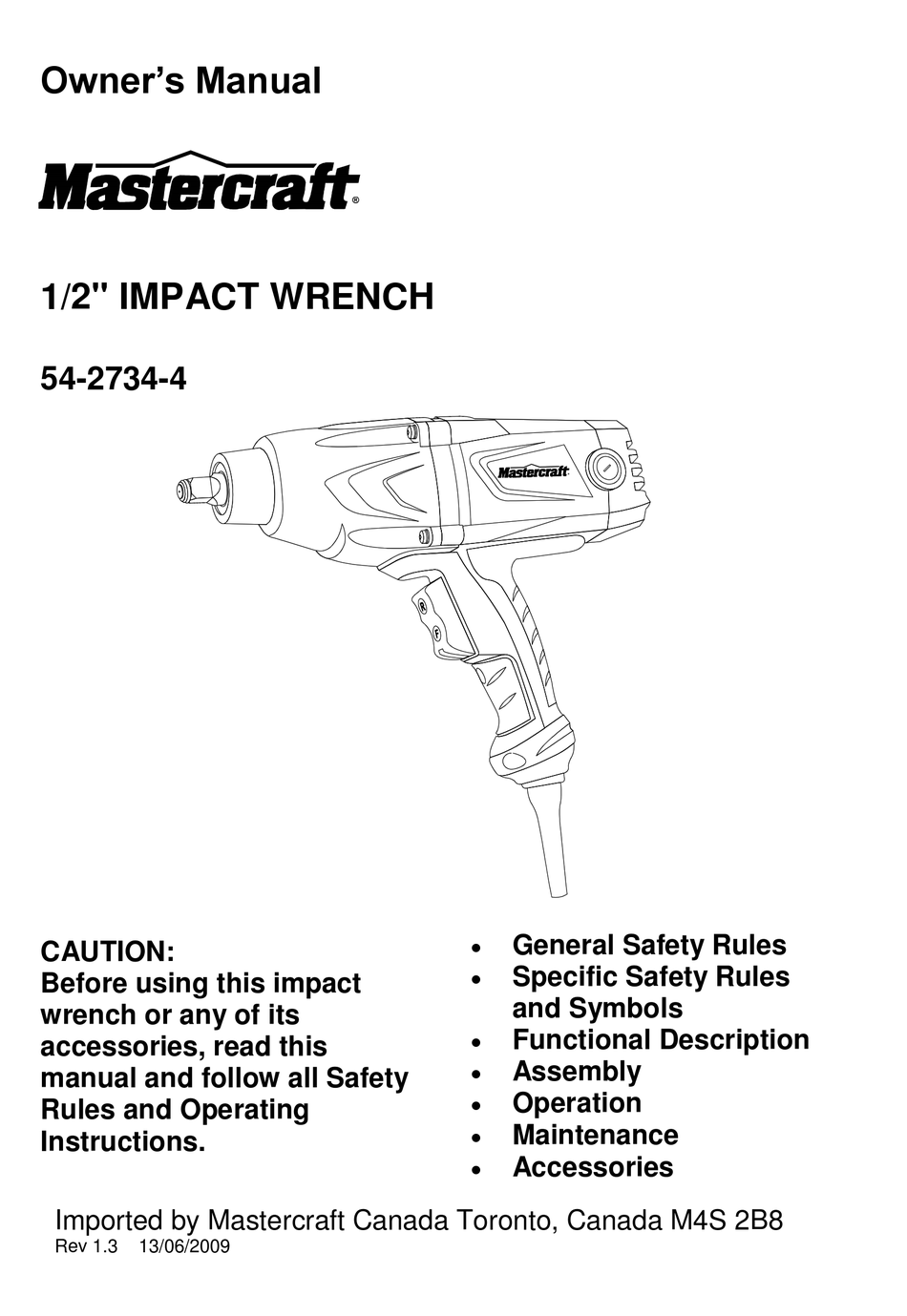

Owner's Manual
1/2" IMPACT WRENCH
54-2734-4
CAUTION:
Before using this impact
wrench or any of its
accessories, read this
manual and follow all Safety
Rules and Operating
Instructions.
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
Rev 1.3
13/06/2009
General Safety Rules
Specific Safety Rules
and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 54-2734-4 and is the answer not in the manual?

Questions and answers

Related Manuals for MasterCraft 54-2734-4

Summary of Contents for MasterCraft 54-2734-4

  • Page 1 Symbols wrench or any of its  Functional Description accessories, read this  Assembly manual and follow all Safety  Operation Rules and Operating  Maintenance Instructions.  Accessories Imported by Mastercraft Canada Toronto, Canada M4S 2B8 Rev 1.3 13/06/2009...

  • Page 2: Table Of Contents

    This product is not guaranteed if used for industrial or commercial purposes. Mastercraft is a superior line of products selected for their workmanship and materials. These products are designed to meet rigorous quality and performance standards, and are approved by our Quality Assurance laboratory.

  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS Rating ……………………………….. 120 V, 60 Hz, AC Amperes ……………………………. 7.5 Amperes Maximum torque: ………………….. 240 ft lbs (325 Nm) Blows per minute (BPM) ………….. 2700 Square drive ……………………….. ½" Net weight ………………………….. 7 lb 8 oz. (3.4 kg) POWER TOOL SAFETY WARNING: Some dust created by power sanding, sawing, grinding, drilling...
  • Page 4 POWER TOOL SAFETY GENERAL SAFETY RULES Do not expose power tools to rain or wet conditions. Water entering the power WARNING: tool will increase the risk of electric shock. Read and understand all instructions. Failure to follow all Do not abuse the cord. Never use the instructions listed below may result in cord to carry the tool or pull the plug from electric shock, fire and/or serious personal...
  • Page 5 POWER TOOL SAFETY PERSONAL SAFETY – cont’d Store idle tools out of reach of children and other untrained persons. Tools are Remove adjusting keys or wrenches dangerous in the hands of untrained users. before turning the tool ON. A wrench or Maintain tools with care.

  • Page 6: Specific Safety Rules

    SPECIFIC SAFETY RULES Never use the impact wrench as a WARNING: Know your impact wrench. Read the Owner’s Manual torque wrench. Always use a torque carefully. Learn the tool’s applications wrench to adjust the fastener to the specified torque. and limitations, as well as the specific potential hazards related to this tool.

  • Page 7: Extension Cord Safety

    EXTENSION CORD SAFETY WARNING: Keep the extension MINIMUM GAUGE (AWG) EXTENSION CORDS cord clear of the working area. Position (120 V use only) the cord so it will not get caught on the Ampere Rating Total length in feet workpiece, tools or any other obstructions while you are working with More More...

  • Page 8: Symbols

    SYMBOLS WARNING: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. three-phase alternating volts current with neutral amperes direct current hertz...

  • Page 9: Know Your Impact Wrench

    KNOW YOUR IMPACT WRENCH Socket retainer ½" square drive Front housing Forward/reverse switch Handle ACCESSORIES & CARTON CONTENTS Carefully unpack the impact wrench. AVAILABLE ACCESSORIES Compare against the “IMPACT WRENCH COMPONENTS” chart at right. WARNING: Use only accessories NOTE: See product diagram on Page 10. recommended for this impact wrench.

  • Page 10: Carton Contents

    CARTON CONTENTS ASSEMBLY AND OPERATION INSTALL SOCKET To install a socket, press the square portion of the socket (1) onto the square WARNING: drive (2) of the impact wrench (see Fig. 1). Use only impact NOTE: Slide the socket fully onto the sockets and accessories that are square drive so the socket retainer (3) will designed for use with an impact wrench.
  • Page 11 ASSEMBLY AND OPERATION FORWARD/REVERSE SWITCH WARNING This impact wrench is equipped with a Have you read “POWER TOOL rocker style forward/reverse switch (1) (see SAFETY”, “SPECIFIC SAFETY Fig. 2). RULES”, EXTENSION CORD SAFETY” and “SYMBOLS” on pages To operate the impact wrench in the 3, 4, 5, 6, 7 &...
  • Page 12 ASSEMBLY AND OPERATION REMOVING FASTENERS – cont’d When removing fasteners, do not allow the impact wrench to operate more than 15 Install the correct size of impact socket seconds unless the fastener begins to turn. on the impact wrench as outlined on If the fastener fails to turn within 15 Page 10.

  • Page 13: Maintenance

    MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. Use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

  • Page 14: Parts & Service

    PARTS DIAGRAM – MODEL 54-2734-4...
  • Page 15 PARTS LIST – MODEL 54-2734-4 ® WARNING: When servicing, use only Mastercraft replacement parts. Use of any other parts may create a safety hazard or cause damage to the tool. Any attempt to repair or replace electrical parts on this power tool may create a safety hazard unless repair is performed by a qualified technician.
  • Page 16 This symbol designates that this tool PARTS LIST – MODEL 54-2734-4 is listed with both Canadian and Key # Part # Part Name Quantity U.S. 012009-31 Brush holder requirements 012009-32 Housing 012009-33 Name plate Underwriters 012009-34 Screw / ST3.9x18F Laboratories.
