Industrial 900-MHz Wireless Modem
User Manual
Standard and Rated C1D2 versions are available.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Support
www.blackbox.com • info@blackbox.com
Information
MDR100A-R5
MDR112A-R5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box MDR100A-R5
Summary of Contents for Black Box MDR100A-R5

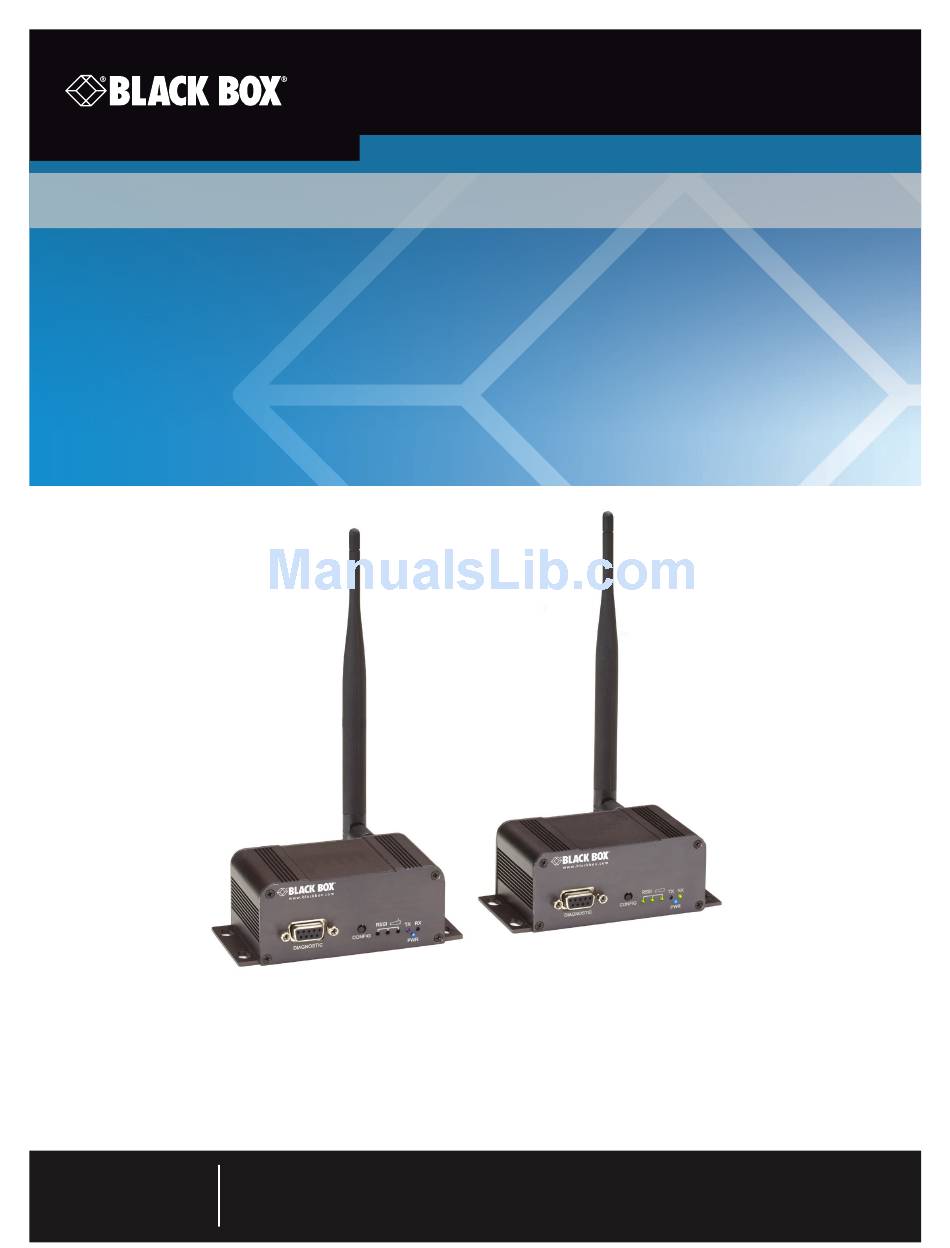

- Page 1 MDR100A-R5 MDR112A-R5 Industrial 900-MHz Wireless Modem User Manual Standard and Rated C1D2 versions are available. Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Support www.blackbox.com •...
- Page 2 Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
- Page 3 Disclaimer: Black Box Network Services shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Network Services may revise this document at any time without notice.
- Page 4 NOM Statement Instrucciones de Seguridad (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
-
Page 5: Table Of Contents
Table of Contents Table of Contents Quick Start Guide ................................7 What's Included ..............................7 Additional Items You Will Need ..........................7 Setup Procedure ..............................7 1. Specifications................................8 2. Overview ................................9 Introduction ..............................9 Features ..............................9 What’s Included............................9 Hardware Description ..........................5 3. Operating Modes ............................... 14 Command Mode ............................ - Page 6 Table of Contents S107 Static Mask ............................36 S108 Output Power ..........................36 S109 Hop Interval ..........................37 S110 Data Format ...........................38 S112 Packet Max Size ..........................38 S113 Packet Retransmissions ........................38 S115 Repeat Interval ..........................38 S116 Character Timeout .........................39 S118 Roaming ............................39 S119 Quick Enter to Command Mode ....................40 S123 Average RSSI ..........................40 S130 No Sync Intake ..........................40 S133 Network Type ..........................40...
-
Page 7: Quick Start Guide
The HyperTerminal window should show the response “NO CARRIER OK.” At this point, both MDR100A-R5 or MDR112A-R5 radios are in COMMAND MODE. To configure one module as the Master, type AT&F6 [Enter], then type AT&WA [Enter]. This module’s TX LED (red) should light. To configure the other module as the Slave, type AT&F7 [Enter], then type AT&WA [Enter]. -
Page 8: Specifications
Chapter 1: Specifications 1. Specifications Electrical/General Frequency 902–928 MHz Spreading Method Frequency-Hopping/DTS Band Segments Selectable via Frequency Restriction Error Detection 32 bits of CRC, ARQ Data Encryption (Optional) 128-bit or 256-bit AES Encryption (requires an export permit outside U.S. and Canada) Range 60+ miles (100 km) Speed... - Page 9 Chapter 1: Specifications Dimensional Diagrams Dimensions for the modem are shown in Figures 1-1 through 1-3. Figure 1-1. MDR100A-R5 top view. Figure 1-2. MDR100A-R5 front view. Figure 1-3. MDR100A-R5 back view. 724-746-5500 | blackbox.com Page 9...
-
Page 10: Overview
(FHSS) technology. It provides reliable wireless asynchronous data transfer between most equipment types that use an RS-232, RS-422, or RS-485 interface. The small size and superior performance of the MDR100A-R5 or MDR112A-R5 makes it ideal for many applications. Some typical uses for this modem include: •... -
Page 11: Hardware Description
2.4 Hardware Description The MDR100A-R5 or MDR112A-R5 provides a fully enclosed, standalone modem, requiring only cabled connections. The MDR100A-R5 or MDR112A-R5 can be used on a table top surface or mounted on a flat surface or a wall using the mounting holes. - Page 12 Chapter 2: Overview Table 2-2. RS-232 diagnostic port pinout. Signal Name Pin Number Input or Output — — — — — Data Port (RS-232 Port DCE) The DATA (RS-232 Port (DCE) on the rear of the circuit board is used for: •...
- Page 13 Chapter 2: Overview RS-422/485 Port The RS-422/485 Port is used to interface the MDR100A-R5 or MDR112A-R5 to a DTE with the same interface type. Either the RS-232 or RS-422/485 interface is used for data traffic. Vin+/Vin– is used to power the unit. The input Voltage range is 9–30 VDC.
-
Page 14: Operating Modes
3.1 Command Mode In this mode: • The MDR100A-R5 or MDR112A-R5 module is offline (data is not passing through the unit via it’s local data lines or RF communications). • The MDR100A-R5 or MDR112A-R5's configuration options (registers) may be viewed and modified. -
Page 15: Slave
Chapter 3: Operating Modes If a local device is attached to a Repeater‘s serial data port, the Repeater will also behave as a Slave (aka Repeater/Slave). Adding one or more Repeaters within a network will HALVE the throughput; the throughput is halved only once, i.e., it does not decrease with the addition of more Repeaters. -
Page 16: Network Topologies
Chapter 4: Network Topologies 4. Network Topologies The MDR100A-R5 or MDR112A-R5 may be configured to operate in a number of different operating modes and participate in various network topologies. NOTE: This section describes network topologies and also contains details about related factory default settings to enable the reader to readily see the correlation between various registers. - Page 17 Chapter 4: Network Topologies Figure 4-1. &F6 Master Configuration View. The screen captures on this page clearly show that most of the registers in both the Master and the Slave have the same values. (S105 is not visible in the Master view: its value is, and must be, 1.) The differences are S101 (Operating Mode), S105 (Unit Address), and S140 (Destination Address).
-
Page 18: Point-To-Multipoint (Pmp)
Chapter 4: Network Topologies Master • Enter into Command Mode. • Change S141 (Repeaters Y/N) to 1 (which means “Yes”). • Save the change using the AT&W command. • Go online with the ATA command. Repeater • Enter into Command Mode. •... - Page 19 Chapter 4: Network Topologies Figure 4-3. &F1 Master Configuration View. The factory default PMP Master configuration reveals the following differences with respect to the PTP factory default Master: S133=0 (PMP network) and S140=65535 (the broadcast address, indicating that this Master [point] will send its data to all modems—multipoint).
-
Page 20: Point-To-Multipoint Tdma
Chapter 4: Network Topologies In Figures 4-3 and 4-4, the difference between the factory default for the PMP Master and PMP Slave are simply the Operating Mode (S101), Unit Address (S105), and the Destination Address (S140). With the exception of the Master modem, all modems in a PMP network have a Destination Address of 1—the UA of Master modem—to which all data is destined. -
Page 21: Adaptive Tdma
Chapter 4: Network Topologies Changes to be made to the Master: S244=1 S251=3 ATT0=3 ATT1=7 ATT2=10 ATT3=15 ATT4=21 ATT5=0 (this terminates the list) The Master will “poll” (give the opportunity to transmit) the Slave with UA 3. This Slave will transmit all of its data and then inform the Master of the same. -
Page 22: Gps Indexed Tdma (Adhoc)
Chapter 4: Network Topologies To view the current TDMA table, issue the AT&R1 command on the Master. The Master unit is always present in the TDMA list as unit address 1. 4.2.3 GPS Indexed TDMA (ADHOC) For GPS applications, GPS TDMA may be an ideal operating mode for some customers. Unlike other types of TDMA, GPS TDMA doesn’t use master units to synchronize and maintain timing of the network. - Page 23 Chapter 4: Network Topologies At the start of a Fast TDMA Frame, the Master unit sends information to all the units in the TDMA network. Included in this information is: 1. SYNC Packet—used for system synchronization. 2. TDMA Table/List—This is the list of all the addresses of all the remote units in the network, as well as the order and frequency in which they are to transmit data.
- Page 24 Chapter 4: Network Topologies Example: You have a system with 5 remotes and 1 master as shown below: Slave 2 Slave 22 UA = 2 UA = 22 Slave 11 Master UA = 11 UA = 1 Slave 7 Slave 5 UA = 7 UA = 5 Figure 4-6.
- Page 25 Chapter 4: Network Topologies S212: Max Expected Packet Size—(Set only on Master). S212 is the maximum packet size the remote units can send to the master, therefore defining the duration of the data slot for the remote units. The remote S112 register must be equal to or less than the value of the master’s S212 register.
- Page 26 Chapter 4: Network Topologies Default TDMA table for 1s polling time: 1, // 0 2046, // 48 2001, // 1 2047, // 49 2002, // 2 2048, // 50 2003, // 3 2049, // 51 2004, // 4 2050, // 52 2005, // 5 2051, // 53 2006, // 6...
-
Page 27: Peer-To-Peer
Chapter 4: Network Topologies 4.3 Peer-to-Peer (P2P) P2P mode is used for communications between pairings of Remote modems, e.g. Slave 12 can exchange data with (only) Slave 14, Slave 6 can exchange data with (only) Slave 7, etc. There are no specific factory default settings for P2P modems. To establish a basic P2P network: Master •... - Page 28 • Interfacing with the module, and • Inputting the desired values into a variety of registers. Interfacing to the MDR100A-R5 or MDR112A-R5 to configure it may be done in a number of ways: If mounted in a MDR100A-R5 or MDR112A-R5 Interface Card combination: •...
- Page 29 Chapter 4: Network Topologies Once connected and in Command Mode, changes to the MDR100A-R5 or MDR112A-R5’s configuration are made using convenient AT commands, the majority of which involve Settings (S) Registers. As discussed in Section 5, there are several factory default settings that can make configuration of the modules quite simple.
-
Page 30: Configuration
Data Mode. g, G Spectrum Analyzer This is a very useful feature of the MDR100A-R5 or MDR112A-R5. ATg or ATG will provide a display of signal levels received within the operating environment and frequency range of the modem under test. -
Page 31: N Advanced Spectrum Analyzer
8 Slow Mode PTP Master 9 Slow Mode PTP Slave NOTES: Slow Mode is an option for the MDR100A-R5 or MDR112A-R5. If the module being configured does not support Slow Mode, do not load a Slow Mode factory default configuration. 724-746-5500 | blackbox.com... -
Page 32: H0 Frequency Restriction
Description &H0 Frequency Restriction By default, the MDR100A-R5 or MDR112A-R5 will hop on frequencies across the entire 900-MHz ISM bands. For some applications or within certain operating environments, You might want to prohibit the modem from operating on specific frequencies or range(s) of frequencies. The modem will not allow “too many”... -
Page 33: H1 Repeater Registration
Chapter 5: Configuration Table 5-1 (continued). AT commands. y < command command name > x Description &H0 (continued) &H0 Frequency Restriction (continued) Figure 5-3. Restricted Bands. 905.500 was entered as the “start” and “end” of Band 1; this will restrict the frequency of 905.500 MHz. -
Page 34: Settings (S) Registers
MDR112A-R5 module via a telephone modem connection interface. S101 Operating Mode The operating mode defines the role of a modem. A MDR100A-R5 or MDR112A-R5 modem may be configured for any role required within a radio network. The default operating mode depends on which factory default option is selected. -
Page 35: S102 Serial Baud Rate
Faster link rates result in greater throughput; however, for each “step” increase in link rate, there is an approximately 1 dB reduction in sensitivity. Values: 0 19200* 1 115200** MDR100A-R5 or MDR112A-R5** 2 172800** 3 230400** 8 1.2 Mbps***... -
Page 36: S104 Network Address
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S104 Network Address All modems in a given network must have the same Network Address. This unique network address is not only a security feature for a particular network, but also allows other networks—with their own unique network address—to operate in the same area without the possibility of undesired data exchange between networks. -
Page 37: S109 Hop Interval
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S109 Hop Interval This register is effective only on the Master and is responsible for establishing the rate at which all modems within a particular network change frequency (hop—from fre- quency to frequency). -
Page 38: S110 Data Format
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S110 Data Format This register determines the format of the data on the serial port. The default is 8 data bits, No parity, and 1 Stop bit. Values: 1 8N1 6 7N2... -
Page 39: S116 Character Timeout
If the timer detects a gap in the data exceeding the Character Timeout value, the modem will transmit the data. The MDR100A-R5 or MDR112A-R5 will accumulate data in its buffers until either (a) Maximum Packet size (S112) has been accumulated, or (b) Minimum Packet Size (S111) has been accumulated AND the Character timeout has expired—whichever... -
Page 40: S119 Quick Enter To Command Mode
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S119 Quick Enter to If this register is set to 1, a delay of 5 seconds is introduced at power-up before the Command Mode modem will go into Data Mode. -
Page 41: S140 Destination Address
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S140 Destination Address As the name implies, this register specifies the ultimate destination for a modem’s data. Different network topologies dictate the configuration of S140: PMP: Master S140=65535, Remote S140=1 PTP: Master S140=UA of Remote, Remote S140=1 P2P: Master S140=65535, S140 of each (of 2/pair) remote modems is the UA of the... - Page 42 Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S143 (continued) Sleep Mode (continued) This register applies only to Remote (i.e. not Master) modems, and determines if the Remote should remain active continuously (S143=0, default), or enter a timer-based sleep mode.
-
Page 43: S144 Sleep Time
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S144 Sleep Time This register applies only to Remote modems and is only effective when S143>0. Defines sleep duration for up to approximately 18 hours. Two conditions will awaken a Remote: 1. -
Page 44: S151 Fast Sync Timeout
FEC may be all that is required to maintain the integrity of that data at that distance. Types of FEC available within the MDR100A-R5 or MDR112A-R5: Hamming (7,4) : Information rate 0.5, corrects 1 out of 7 bits Hamming (15,11) : Information rate 0.66, corrects 1 out of 15 bits... -
Page 45: S159 Encryption Mode (Aes)
Using AES encryption, and export laws governing AES, vary from country to country. The AES option is only available by special order. Contact Black Box Technical Support at 724-746- 5500 or info@blackbox.com. -
Page 46: S217 Protocol Type
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S217 Protocol Type For most applications, the default value of 0—resulting in transparent operation—will be maintained in this register. Setting this register to a value of 1 specifies MODBUS operation, in which the modem will frame the output data and comply with MODBUS specifications. -
Page 47: S248 Sync Timeout
Chapter 5: Configuration Table 5-2 (continued). S Register settings. y < command command name > x Description S248 Sync Timeout This register defines how many hop intervals elapse before the slave will become unsynchronized and begins to search for a master. Values: 1–65534 NOTE: In a “clean”... -
Page 48: Cn Data Carrier Detect (Dcd)
Chapter 5: Configuration Table 5-3. Serial Interface Commands. Command Command Name Description &Cn Data Carrier Detect Controls the module’s DCD output signal to the attached device. Determines (DCD) when the DCD line is active. Values: 0 DCD always on 1 DCD on when modems synchronized* 2 DCD used for output data framing and Modbus mode *DCD always on when module configured as a Master &Dn... -
Page 49: Installation
Section 5.0 detailed the various network topologies that the MDR100A-R5 or MDR112A-R5 will support. Determine which topology meets your specific requirements. Throughput The MDR100A-R5 or MDR112A-R5 is capable of 230.4 kbps asynchronous serial data throughput. The network topology has an effect on how this available throughput is “shared” between all nodes on the network. Distance The physical distance between the modems determines the required antenna performance and heights, and whether or not a Repeater(s) is required. -
Page 50: Path Calculation
Power Requirements The MDR100A-R5 or MDR112A-R5 may be integrated into a system that accepts a range of DC input voltages (supply current requirements must also be met). In some deployments, power consumption is critical. A number of features related to minimize power consumption are available with the MDR100A-R5 or MDR112A-R5 Series: sleep/sniff modes, LED dimming, and the ability to operate at less transmit power given the receive sensitivity of the distant modem. -
Page 51: Installation Of Antenna System Components
CAUTION: Never work on an antenna system when there is lightning in the area. WARNING: Direct human contact with the antenna is potentially unhealthy when a MDR100A-R5 or MDR112A-R5 is generating RF energy. Always ensure that the equipment is powered down (off) duringinstallation. -
Page 52: Coaxial Cable
N-type female. 6.2.4 External Filter Although the MDR100A-R5 or MDR112A-R5 is capable of filtering-out RF noise in most environments, there are circumstances that require external filtering. Paging towers and cellular base stations near the MDR100A-R5 or MDR112A-R5’s antenna can desensitize the receiver. -
Page 53: Appendix A: At Command Quick Reference
Appendix A: AT Command Quick Reference Appendix A: AT Command Quick Reference The following commands may be used when the modem is in COMMAND MODE; all are to be preceded with “AT” and followed with [Enter]. An asterisk (*) indicates a default setting, where applicable. Table A-1. - Page 54 Appendix A: AT Command Quick Reference Table A-1 (continued). AT Command Quick Reference. Command Command Name Description &H0 Frequency Follow onscreen prompts to input undesired frequencies. Restriction &H1 Repeater When more than one repeater exists in a network, the repeaters should be Registration “registered”...
-
Page 55: Appendix B: Settings (S) Register Quick Reference
Appendix B: Settings (S) Register Quick Reference Appendix B: Settings (S) Register Quick Reference The registers described in this Appendix are ones which are normally “visible” to the user. The values stored in these registers effect the operation of the modem. An asterisk * represents the default value (if applicable). Query format: ATSxxx? [Enter] where xxx is S register number detailed below Change format: ATSxxx=y [Enter] where xxx is S register number and y is desired value Table B-1. - Page 56 Appendix B: Settings (S) Register Quick Reference Table B-1 (continued). S-Register Quick Reference. Command Command Name Description S109 Hop Interval (ms) • 0–230400 • 11–40 • 1–115200 • 12–50 • 2–57600 • 13–60 • 3–38400 • 14–70 • 4–28800 • 15–80 •...
- Page 57 Appendix B: Settings (S) Register Quick Reference Table B-1 (continued). S-Register Quick Reference. Command Command Name Description S144 Sleep Duration (seconds) 0–65535 S145 Awake Timeout (seconds) 0–65535 S149 LED Brightness (%) 0–100 *100 S150 Quick Sync Mode 0-*normal sync 1-quick sync mode, wait for acknowledgement 2-quick sync mode, wait for timeout S151 Quick Sync Timeout (ms)
-
Page 58: Appendix C: Rs-485 Wiring
4-wire RS-485 A MDR100A-R5 or MDR112A-R5 can also be connected into a RS-485 network in a four-wire configuration as shown in Figure C-2. In a four-wire network, one node must be a master node and all others must be slaves. The network is connected so that the master node communicates to all slave nodes. -
Page 59: Appenidx D: Troubleshooting
If you determine that your Industrial 900-MHz Wireless Modem is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: •... - Page 60 About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 60 seconds or less.
