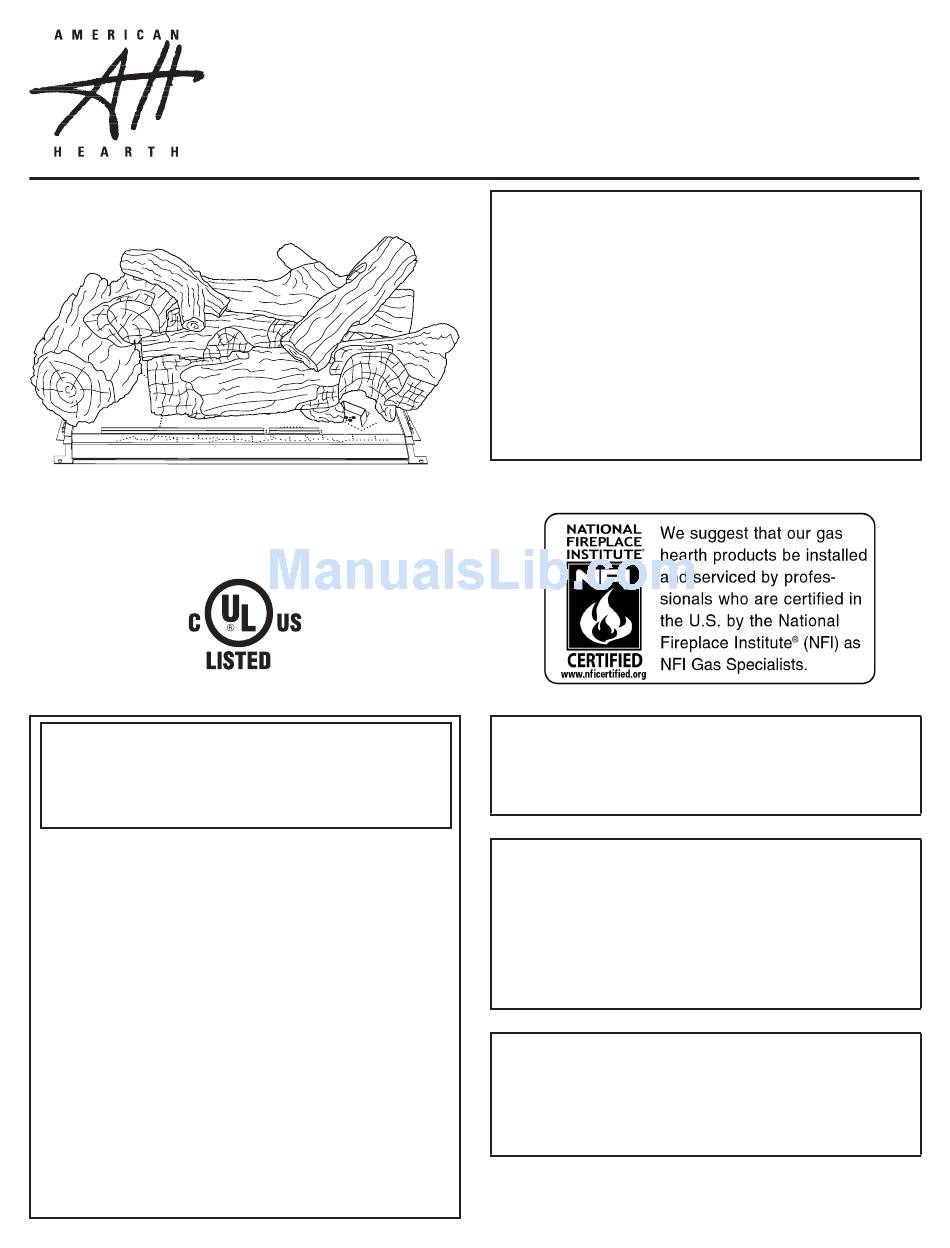

REVOLUTION
GAS-FIRED
WARNING: If the information in these in-
structions are not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the vi-
cinity of this or any other appliance.
— wHAT TO DO If YOu SMeLL gAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do
not use any phone in your building.
•
Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
•
If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency or the gas supplier.
INSTALLATION INSTrucTIONS
AND OwNer'S MANuAL
Installer: Leave this manual with the appli-
Consumer: Retain this manual for future
Log sets comply with ANSI Z21.11.2 Unvented
Heaters and also comply with ANSI Z21.60
Decorative Vented Appliances for Solid Fuel
Burning Fireplaces. State or local codes may
only allow operation of log sets in a vented
configuration. Check your state or local
codes.
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer's
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
LOg SeT fOr uNVeNTeD
gAS LOg HeATer
Or
VeNTeD DecOrATIVe APPLIANce
MODeLS
ALX-24Vr-1
ALX-30Vr-1
ance.
reference.
Page 1
Advertisement
Table of Contents
Related Manuals for American Hearth ALX-24VR-1
Summary of Contents for American Hearth ALX-24VR-1
-
Page 1: Installation Instructions
AND OwNer'S MANuAL REVOLUTION LOg SeT fOr uNVeNTeD gAS LOg HeATer VeNTeD DecOrATIVe APPLIANce MODeLS ALX-24Vr-1 ALX-30Vr-1 GAS-FIRED Installer: Leave this manual with the appli- WARNING: If the information in these in- ance. structions are not followed exactly, a fire... -
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page Important Installation Guidelines .............. 3 General Information ................. 3 Requirements for Canada ................ 4 Parts List & Parts View ................5 Log Placement ..................6 - 12 Placement of Glowing Embers ............13 - 15 Master Parets Distributor List ..............16 How To Order Repair Parts .............. -
Page 3: Important Installation Guidelines
IMPORTANT INSTALLATION GUIDELINES Proper Log Placement wArNINg: Do not allow fans to blow directly into the fireplace. Log placement is critical to proper burner performance. Logs must Avoid any drafts that alter burner flame patterns. be correctly positioned onto the burner. The photos in this manual wArNINg: Do not use a blower insert, heat exchanger insert or show the proper pinned position for logs on this set. -
Page 4: Requirements For Canada
REQUIREMENTS FOR CANADA This unit cannot be installed in an UNVENTED application, this WARNING; DO NOT OPERATE THIS GAS LOG SET WITH unit can only be installed as a VENTED application with these gLASS DOOrS cLOSeD requirements. • Clothing or other flammable material should not be placed on IMPOrTANT SAfeTY INfOrMATION or near the appliance. -
Page 5: Parts List & Parts View
Attention: When ordering parts, it is very important that part number and description of part coincide. ALX-(24,30)VR-1 INDeX INDeX TOP VIew frONT VIew Part No. Index No. Description ALX-24VR-1 ALX-30VR-1 R10547 R10547 LEFT LOG R10549 R10555 CENTER LOG R10550 R10556... -
Page 6: Log Placement
LOG PLACEMENT Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs, wash your hands gently with soap and water. All Logs The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are not properly and firmly positioned in the appliance. - Page 7 LOG PLACEMENT Place Left Log (A) onto pins 4 and 8. frONT VIew TOP VIew R10580-2-0311 Page 7...
- Page 8 LOG PLACEMENT Place Center Log (B) horizontally onto pin 1. Log fits over the gap and rests against the Rear Log Shelf. frONT VIew TOP VIew Page 8 R10580-2-0311...
- Page 9 LOG PLACEMENT Place Rear Log (C) onto pin 3 and rest against Rear Log shelf next to (B) Log. frONT VIew TOP VIew R10580-2-0311 Page 9...
- Page 10 LOG PLACEMENT Place Front Log (E) onto pins 5, 6 and 7. frONT VIew TOP VIew Page 10 R10580-2-0311...
- Page 11 LOG PLACEMENT Place Top Left Log (F) onto boss on (A) Log and resting on (B) Log. frONT VIew TOP VIew R10580-2-0311 Page 11...
-
Page 12: Log Placement
LOG PLACEMENT Place Right Top Log (F) onto (C) Log and rectangle boss on (E) Log. frONT VIew TOP VIew Page 12 R10580-2-0311... -
Page 13: Placement Of Glowing Embers
PLACEMENT OF GLOWING EMBERS R10580-2-0311 Page 13... - Page 14 PLACEMENT OF GLOWING EMBERS Page 14 R10580-2-0311...
-
Page 15: Placement Of Glowing Embers
PLACEMENT OF GLOWING EMBERS Placement of the glowing embers is very individual and light Replacement glowing embers must be purchased from Empire coverage will provide your best effects. We recommend separation Comfort Systems, Inc. Application of excess glowing embers of the glowing embers by hand and make your coverage as light may adversely affect performance of the heater and may cause and fluffy as possible. -
Page 16: Master Parets Distributor List
MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit. -
Page 17: Appliance Service History
APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes R10580-2-0311 Page 17... - Page 18 APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes Page 18 R10580-2-0311...
- Page 19 APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes R10580-2-0311 Page 19...
- Page 20 A Registered Trademark of Empire Comfort Systems Inc. 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.americanhearth.com Page 20 R10580-2-0311...
