Rehau NEA HT Manual page 41

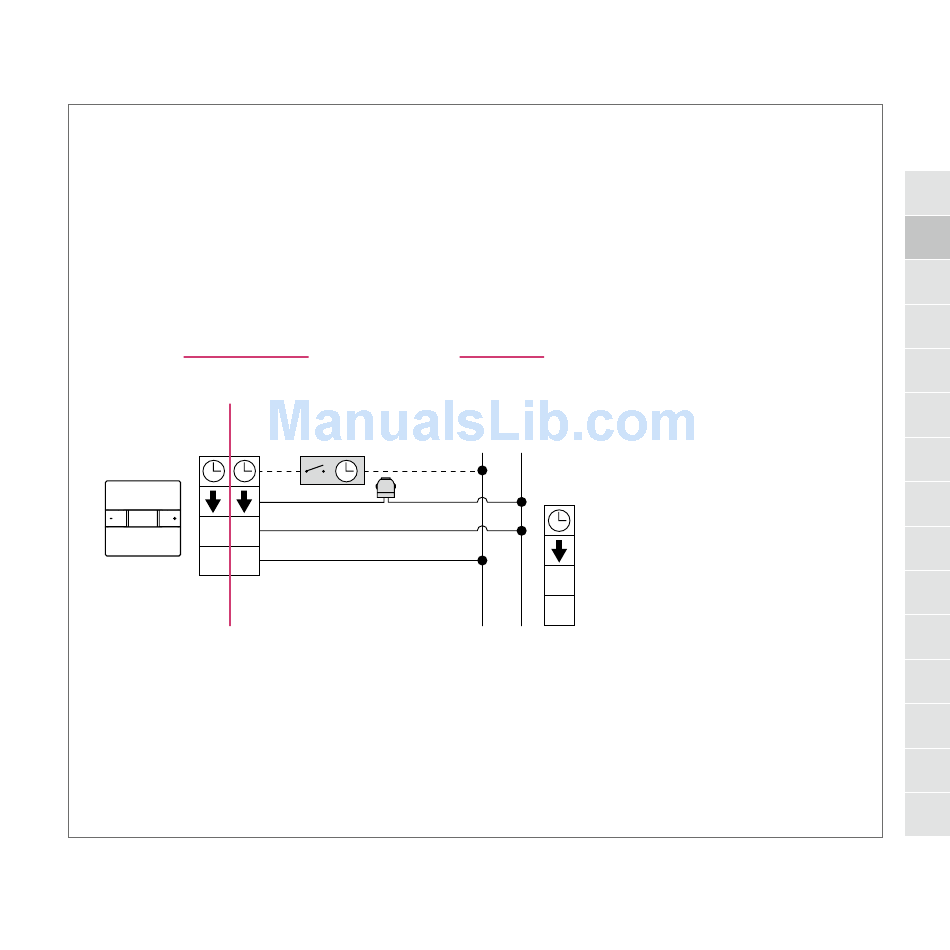

Nea HT wiring
230 V AC / 0.2 A
Resistive Load
24 V AC / 1 A
Resistive Load
HT* HT*
230 V 24 V
N L2
L L1
HT* HT*
230 V 24 V
* Room thermostat Nea HT 230 V and 24 V are separate models
230 V AC
L
24 V AC
L1
Optional External Time Switch L/L1 N/L2
Max. 5 Thermal Actuators
N
L2
External time switch (Phase balance)
Load (Thermal Actuators)
N
Neutral
L
Phase
