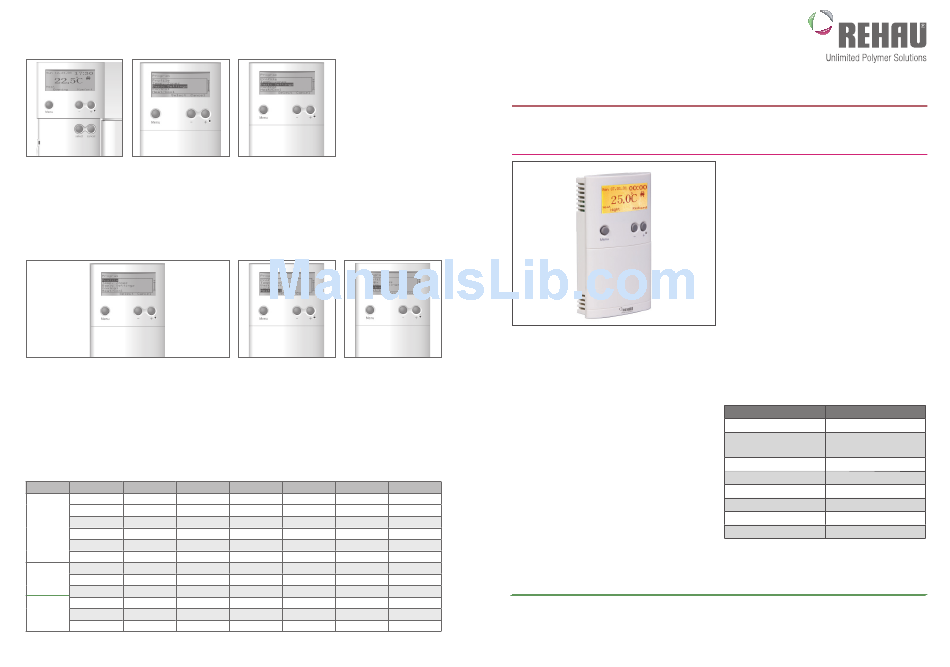

Rehau STAR 50 Operating Instructions

Program - Menu
To enter the program menu, you have to press + or – fi rst before the
following procedures.
Program Menu Basic Settings
To access the program menu, Enter the Basic Settings menu to
open the hatch and press select adjust Date/Time, Language and
and cancel at the same time for Maintenance settings
three seconds.
Profi le
Enter the Profi le menu to adjust the detailed settings of the Family,
Single, Offi ce, Name 1 and Name 2 Profi les
You can adjust the profi les to your needs, by varying the 6 daytimes
and allocate them new temperature zones. This can be done for a
single day or weekday and weekend. You can rename profi les and
copy settings inside a profi le and from one profi le to another. In the
following table, you can fi nd the factory defaulted settings.
Daytimes Time Family
Mon-Fri Early Morning 06:00 – 08:00 Comfort
Morning 08:00 – 12:00 Standard
Noon 12:00 – 14:00 Comfort
Afternoon 14:00 – 18:00 Standard
Evening 18:00 – 23:00 Comfort
Night 23:00 – 06:00 Reduced
Sat-Sun Early Morning 06:00 – 08:00 Comfort
Morning 08:00 – 12:00 Standard
Noon 12:00 – 14:00 Comfort
Afternoon 14:00 – 18:00 Standard
www.rehau.co.uk
Evening 18:00 – 23:00 Comfort
Night 23:00 – 06:00 Reduced
Temp. Zones If you modify a temperature zone,
the temperature settings within
Enter the Temp. zones Menu to
the profi les will change as well.
adjust the temperatures of the
The zones are factory defaulted
comfort, standard and reduced
with these temperatures.
zones. The three temperature
Comfort 24°C
zones can be allocated to the six
Standard 20°C
day times. Reduced 16°C
Heat Control Control
Enter the Heat Menu to activate Enter the Control menu to male
heat of the controls changes on the Span, Setback,
Frost*, Output and VP Settings.
* Controller serves as protection
against frost and prevents
temperature from going below
5°C
Single Offi ce Name 1 Name 2
Comfort Comfort Comfort Comfort
Standard Standard Standard Standard
Comfort Comfort Comfort Comfort
Standard Standard Standard Standard
Comfort Comfort Comfort Comfort
Reduced Reduced Reduced Reduced
Comfort Comfort Comfort Comfort
Standard Standard Standard Standard
Comfort Comfort Comfort Comfort
Standard Standard Standard Standard
Comfort Comfort Comfort Comfort
Reduced Reduced Reduced Reduced
REHAU STAR CONTROLS
STAR 50 - PROGRAMMABLE ROOM CONTROLLER
The REHAU Star 50 programmable room controller is an
electronic room temperature control for underfl oor heating.
Programming and Operating made Simple
The built-in user profi les make the REHAU Star 50 one of
the most convenient controllers on the market. With 3
default profi les to choose from, the controller is ready for
use without any user programming for most cases. Two
freely adjustable profi les and the option of manual overri-
de, allows the end user to set the controller to their own
needs.
The large text display and self evident navigation turns the
operation and programming of the unit into a breeze -
without even needing to pick up the instructions.
REHAU Star 50 basic features:
- 3 preset profi les and 2 freely programmable profi les
- 3 diff erent display screens selectable
- Possible to change current temperature at any time
- Manual mode
www.rehau.co.uk
08.2008
- In-built frost protection
- Large backlit display
- Simple keypad operation
- Menu driven navigation
- Selectable Night Setback available
- Pulse-Width-Modulation (PWM - switchable)
- Usable as master controller or stand alone
- Valve protection feature (switchable)
- Easy to install
- Tested and approved
- Frost protection mode
- Holiday Feature
- Available in 8 languages
- Keypad lock
- Operating hours counter
Technical Data 230V
Article No: 205576
Voltage Supply: 2 x size AA batteries (int)
230VAC / 50Hz (ext)
Max. switching current: 10 (3) A
Hysteresis: 0.5K
Protection Rating: IP 30
Dimensions H/W/D: 154mm/83mm/39mm
Temperature range: 10°C to 35°C
Storage temperature: -10°C to 60°C
