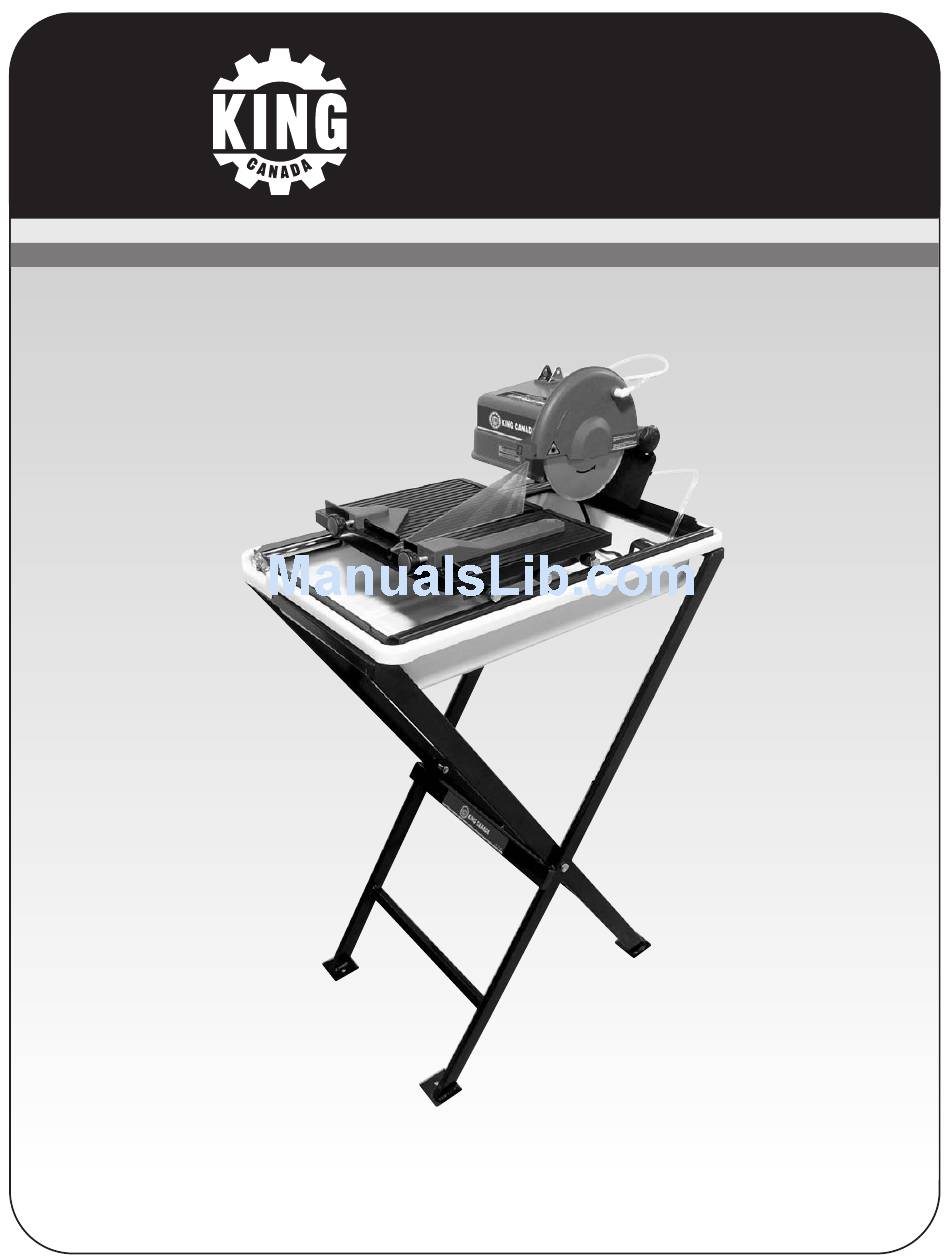

Page 1: Instruction Manual

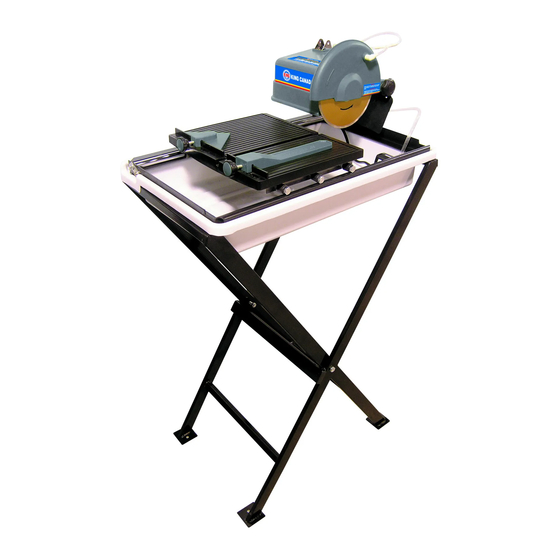

KING CANADA 7” SLIDING TILE SAW WITH LASER GUIDE • Enhanced laser effect MODEL: KC-3008 INSTRUCTION MANUAL COPYRIGHT © 2010 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Warranty Information
LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS VOLTAGE WARNING: Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the voltage supplied is the same as that specified on the nameplate of the tool. A power source with voltage greater than that for the specified tool can result in SERIOUS INJURY to the user - as well as damage to the tool. -
Page 4: Additional Safety Instructions
14. Keep your work space clear and free of all debris. 15. Keep the tile cutter clean and maintained to achieve the safest and highest performance for each job. KEEP THESE SAFETY RULES FOR FUTURE REFERENCE TILE SAW SPECIFICATIONS Model ......................................KC-3008 Voltage ......................................120V Horsepower ....................................3/4 HP Amperage ....................................4.2 Amp. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE TILE SAW DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! 120V GROUNDED POWER SUPPLY OUTLET... - Page 6 ASSEMBLY UNPACKING, ASSEMBLY & SET UP Caution: Follow all of the assembly & installation instructions completely before connecting the tile saw to a power source or turning the motor on. Carefully open the main box and the stand box and remove all the saw components and packing materials.
-
Page 7: Operation
OPERATION INSTALLING BLADE GUARD/ SETTING UP WATER PUMP Warning! Do not operate without the blade guard in place! Do not turn on water pump without having water in the water tray. 1) Place the blade guard (A) Fig.6 and water pipe assembly over the blade and fix the blade guard to the motor housing using the lock knob (B) found in the loose contents. - Page 8 OPERATION/MAINTENANCE Cutting Tiles: 1) Place the marked tile on the table and brace it against the rear of the table. Turn on laser guide and align the cut mark with the laser beam. 2) Once the tile saw has been turned on, allow the blade to speed up to full speed. Make sure that the pump is supplying a continuous flow of water to the blade.
