UNIVERSAL MASTERPIECE BORN IN JAPAN
INSTRUCTION MANUAL FOR MIYOTA WATCH MOVEMENT
CALIBER NO. 0S90
CHRONOGRAPH FUNCTION: CENTER SECOND HAND CHRONOGRAPH 1/100 sec.
Timing up to 59 minutes 59 seconds 99
BATTERY: SR927W

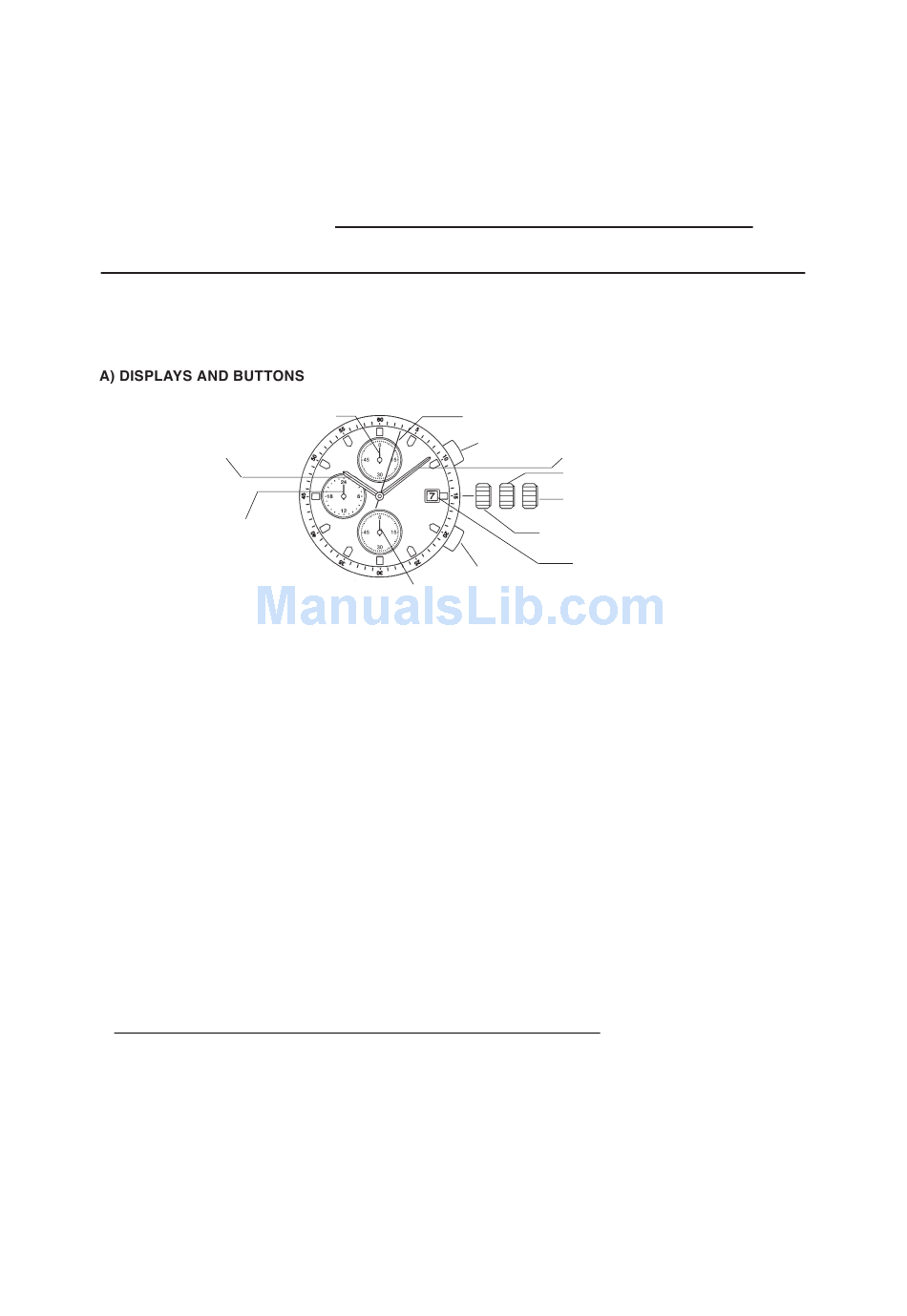

A) DISPLAYS AND BUTTONS
B) SETTING THE TIME
C) SETTING THE DATE
D) USING THE CHRONOGRAPH
E) CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)
Chronograph second hand
(Chronograph minute hand)
Hour hand
24 hour hand
B) SETTING THE TIME
1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.
C) SETTING THE DATE
1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the
following day.
3. After the date has been set, push the crown back to the normal position.
D) USING THE CHRONOGRAPH
The chronograph is able to measure and display time in 1/100 second united up to maximum of 59
minutes 59 seconds 99.
<The chronograph 1/100 second hand>
• The chronograph 1/100 second hand moves for 61 seconds after measurment is started, after which
time it will stop at 0 position. After that time, it then changes to demonstration operation, making one
revolution every minute.
＜ To start the chronograph ＞
• Press button A.
• The small second hand will advance to the zero position at the same time the chronograph starts, and
then begin to run as the chronograph second hand.
Passed at 1 minute and 1 second after the chronograph has been started:
• The chronograph second hand will change over to running as the chronograph minute hand.
＜ To stop the chronograph ＞
• Press button A.
• When the measured time is less than 61 seconds, the chronograph minute, second and 1/100 second
hands will stop at the measured time.
• When the measured time is over 61 seconds, the chronograph minute and second hands will stop at
measured time. The chronograph 1/100 second hand will remain stopped at the zero position. Read the
seconds and minutes from the chronograph at this time.
Next, press button A again to advance the chronograph 1/100 second hand to the measured time.
Read the time in 1/100 seconds from the chronograph at this time.
＜ To reset the chronograph ＞
• Press button B.
• The chronograph second hand will change over to running as the second hand for current time.
The other chronograph hands are returned to the zero position.
MIYOTA
MADE IN JAPAN
METAL MOVEMENT
Chronograph
1/100 second hand
Button A
Button B
Small Second hand
(Chronograph second hand)
Minute hand
1st position
2nd position
Normal crown position
Calendar
