Summary of Contents for dixell iCHILL IC200CX

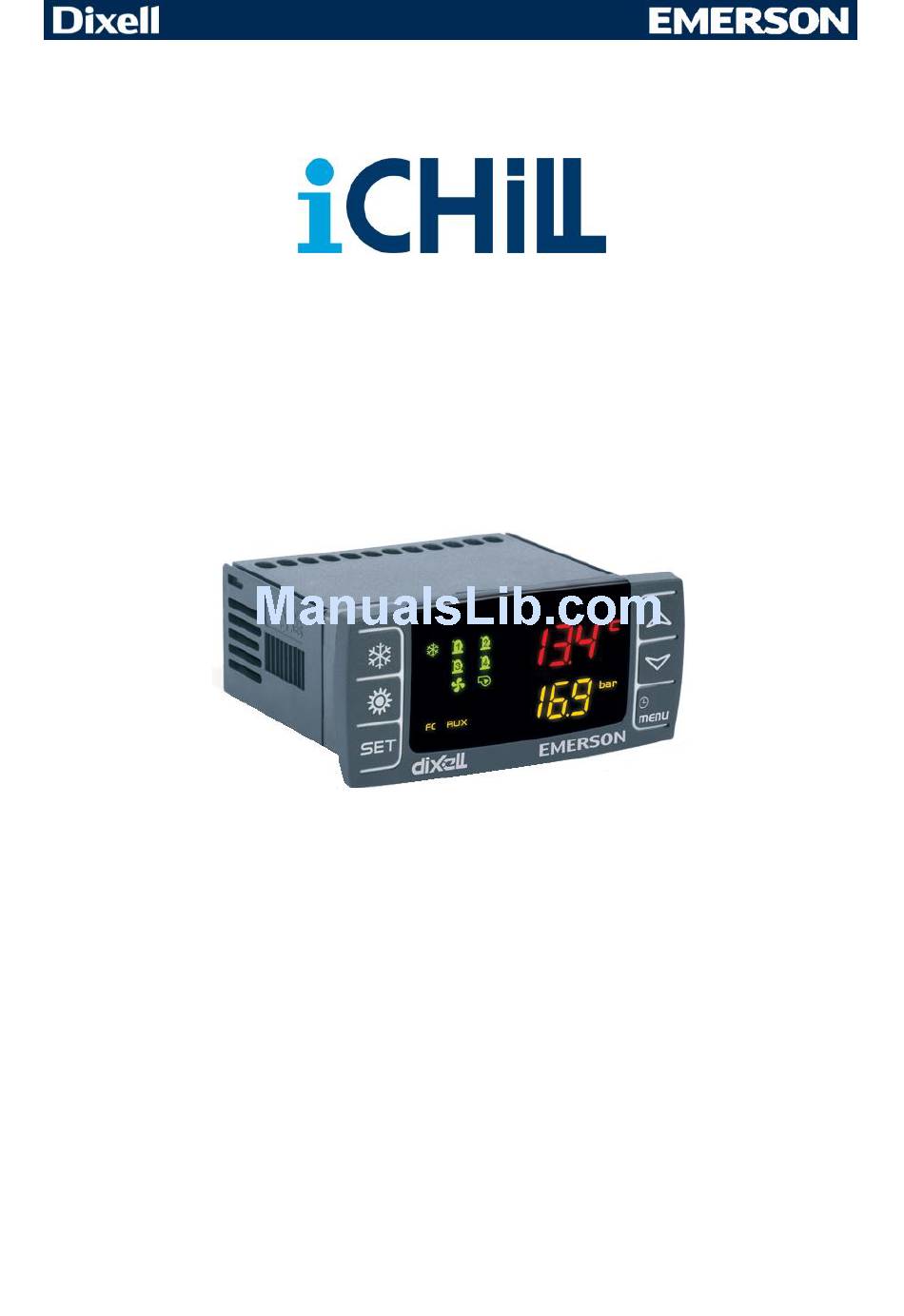

- Page 1 QUICK REFERENCE GUIDE IC200CX (v. 1.0)
-
Page 3: Table Of Contents
INDEX GENERAL WARNING ....................5 PLEASE READ BEFORE USING THIS MANUAL ............5 SAFETY PRECAUTIONS ..................... 5 PRODUCT DISPOSAL (WEEE)..................... 6 USING THE QUICK REFERENCE GUIDE ..............6 IC200 CX TABLE OF THE FEATURES ..............7 USER INTERFACE ....................8 MEANING OF THE LEDS ...................... - Page 4 16.3 DIGITAL INPUTS ......................... 29 16.4 ANALOG INPUT FOR PRESSURE TRANSDUCER PP30 (4 ÷ 20MA SIGNAL) ....30 16.5 ANALOG INPUT FOR PRESSURE RATIOMETRIC TRANSDUCER PPR30 (0 ÷ 5V SIGNAL) 16.6 PWM OUTPUT FOR CONDENSING FAN SPEED CONTROL ..........32 16.7 PROPORTIONAL OUTPUT FOR FAN CONDENSING CONTROL OR FOR COMPRESSOR INVERTER CONTROLLED OR FOR AUXILIARY OUTPUTS ............
-
Page 5: General Warning
It cannot be used as a safety device. Check the application limits before proceeding. Dixell Srl reserves the right to change the composition of its products, even without notice, ensuring the same and unchanged functionality. SAFETY PRECAUTIONS ... -
Page 6: Product Disposal (Weee)
USING THE QUICK REFERENCE GUIDE In this guide, there are some general guidelines regarding the product; more details are in the full manual, to be requested from the Dixell Customer Service department. 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0... -
Page 7: Ic200 Cx Table Of The Features
IC200 CX TABLE OF THE FEATURES CHARACTERISTICS IC206CX IC208CX N° KEYS RELAYS DIGITAL INPUTS Configura Configura ANALOG INPUTS 4 NTC – PTC Configura Configura 2 NTC - PTC - 4÷20mA - 0 ÷ 5Volt PROPORTIONAL OUTPUTS Configura Configura 2 configurables (signal 0÷10V) -
Page 8: User Interface
USER INTERFACE MEANING OF THE LEDS DISPLAY AND ICONS ICON MEANING / FUNCTIONNING °C °F Lighted when the display shows a temperature or pressure Lighted when the bottom display shows the clock Lighted during the programming parameters if it is time based Lighted in function menu when the display shows the defrost delay Alarm: blinking in case of alarm Lighted when sanitary hot water function is active... -
Page 9: Display Layout
Flow switch alarm / supply fan overload (air / air unit) Water pump: lighted if at least one pump is ON Condenser fan: lighted if at least one fan is ON Lighted when a compressor is ON Blinking = when the delay of activation is running Lighted when auxiliary function is active Lighted when the controller is ON in cooling or heating Lighted when the Free cooling is active... -
Page 10: Other Display Information
Fig.1 Fig.2 OTHER DISPLAY INFORMATION READ THE SET POINT VALUE Press and release the SET key: If the unit is on standby: lower display shows SEtC (set chiller); press SET key again, lower display shows SEtH (set heat pump, if it is enabled); ... -
Page 11: Key Function
KEY FUNCTION ACTION FUNCTION Show chiller set point SetC, heat pump set point Push and release SetH, sanitay water set point SetS In chiller or heat pump if the Energy saving or the Push once again Dynamic setpoint are enabled it shows the real setpoint Setr. -
Page 12: Key Combinantion
KEY COMBINANTION ACTION FUNCTION Push for 3 seconds together Enter the programming parameters Only in Pr3 level: push SET and Select the parameter level visibility Pr1 / Pr2 / DOWN key Push once together Exit the programming parameters Push 5 seconds in heat pump Manual defrost mode Only in Pr3 programming level:... -
Page 13: Parameters Programming With The "Hot Key 64
PARAMETERS PROGRAMMING WITH THE “HOT KEY 64” HOW TO PROGRAM AN INSTRUMENT WITH AN ALREADY PROGRAMMED “HOT KEY” (DOWNLOAD) 1. Power off the instrument 2. Insert the hot key already programmed (by software Wizmate or other instrument) 3. Power on the instrument 4. -
Page 14: Enter The Programming Level Pr2
Push SET key and the top display shows “0” blinking Push UP or DOWN to select Pr1 password Push SET and, if the value is correct, the top display shows the first family of parameters “ALL” Push UP or DOWN to select the parameter family Push SET to enter;... -
Page 15: Alarm List: Read And Reset
• press the UP or DOWN button to select the submenu; • press the SET to enter the submenu. Exit menu functions: • Press the menu button or wait the time-out. Entering the menu, it is possbile to: Read and reset the alarms (ALrM) Read and reset the alarm log (ALOG) Upload the parameter into the Hot Key (UPL) Enable –... -
Page 16: Remote Keyboard Vicx620 Evo
Erase the Alarm log list Push MENU key Push UP or DOWN to select ALOG Push the SET key Push UP or DOWN keys and search the ArSt label on the bottom display; the top display shows PAS. Push SET; the bottom display shows PAS and the top display shows “0” blinking Push UP or DOWN to set the password If the password is OK the label ArST blinks for 5 seconds then the display returns to normal condition read-out... - Page 17 dP06..dP09 • the load status Compressor/s Economy function (blinking during the start up delay) Water pump / Supply fan Unloading function Condenser fan Economy or ON/OFF by timetable Electric heater Defrost Sanitary water Alarm Recovery enabled Meaning of the keys: Allows to read the value of the Allows to read/modify the set point probes configured in the Ichill...
-
Page 18: Probes Visualization
13.1 PROBES VISUALIZATION Press key to visualize the value of the probes configured in the Ichill and I/O expansion (press to visualize all the probes). 13.2 VISUALIZZAZIONE / MODIFICA SET POINT Press key to read the value of the set point (cooling set point if the Ichill is in cooling mode, heating set point if the Ichill is in heating mode, cooling and hating set point if the Ichill is in STD_BY or remote OFF, Sanitary water when enabled). -
Page 19: Alarm Visualization
press to confirm the operation 13.3 ALARM VISUALIZATION Press key to read the alarm status; the alarm status can be: Active: the alarm is still active and it is not possible to reset it Reset: the alarm is not active and it is possible to reset it Manual reset procedure: press to select the alarm;... -
Page 20: Table Of The Output Status In Alarm Condition
TABLE OF THE OUTPUT STATUS IN ALARM CONDITION ALARM: “A” TYPE AND STATUS OF THE LOADS IN CASE OF 14.1 ALARM Alarm Alarm Compressor Anti Support Evap. Condenser Cond. Auxili Code description freeze heaters Pump. Pump heaters Supply Cir1 relay Boiler Cir2 ACF1... - Page 21 Generic ALc2 alarm n°2 and AL56=0 Phase ALSF sequence alarm Low air temperature of the ALti evaporator inlet (air / air unit) Alarm Ap1 .. Yes (6) Spent Probe failure o (2) APE1 expansion APE8 probes Solar panel APFL water pump flow alarm Remote...
-
Page 22: Alarm: "B" Type And Status Of The Loads In Case Of Alarm
Sanitary AtHS heater overload Supply fan AtSF overload alarm Serial communicati failure AUAL with expansion valve driver Contemporar y activation of cooling heating request condensing unit (1) = if probe configured as anti-freeze / boiler control and Ar10 = 0 (2) = if probe configured to control the auxiliary output (3) = if the alarm is manual reset (4) = compressors off if only 1 water pump configured or if 2 water pumps and both in alarm... -
Page 23: Alarm: "C" Type And Status Of The Loads In Case Of Alarm
Circuit disabled from b(n)ds keyboard Unloading from evaporator b(n)Eu low temp/press of the circuit High pressure switch circuit OFF after b(n)HP 60 seconds High condensing pressure of OFF after b(n)hP the circuit (n) 60 seconds High condensing temperature OFF after b(n)hP from NTC of the circuit (n) 60 seconds... -
Page 24: Warning
14.1 WARNING Alarm Alarm description Code ACP1 Condenser water pump 1 maintenance ACP2 Condenser water pump 2 maintenance AEP1 Evaporator water pump 1 maintenance AEP2 Evaporator water pump 2 maintenance AEUn Unloading caused by evaporator high temp. ArtC Clock setting ArtF Clock failure ASAn... -
Page 25: 208Cx Connections
16.2 IC208CX CONNECTIONS 8 digital outputs (relays) MAX. current on the relay contacts 5(2)A 250V MAX. Current on the coomon line (C1R and, C2R) 10A 250V 11 digital inputs (free of voltage) 6 analogue inputs: 4 NTC / PTC probes ... -
Page 26: Remote Keyboard Connection
16.1 REMOTE KEYBOARD CONNECTION It is possible to connect to the instrument up to two remote terminals VICX620 EVO, available with / without temperature probe on board, or an LCD keyboard Visograph 2.0 (V2I820 without probes on board); the use of keyboards VICX620 EVO exclude the possibility of use of the keyboard Visograph and vice versa. - Page 27 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 27/40...
-
Page 28: Analog Inputs Ntc - Ptc Probes
NTC – PTC P 16.2 NALOG NPUTS ROBES PbC = common terminal Pb1…Pb6 = probe inputs 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 28/40... -
Page 29: Digital Inputs
16.3 IGITAL NPUTS GND = common terminal ID1…ID11 = digital inputs 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 29/40... -
Page 30: Analog Input For Pressure Transducer Pp30 (4 ÷ 20Ma Signal)
16.4 30 (4 ÷ 20 NALOG NPUT FOR RESSURE RANSDUCER SIGNAL 12V = power supply for pressure transducers Pb3 and Pb4 = pressure transducer inputs 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 30/40... - Page 31 16.5 30 (0 NALOG NPUT FOR RESSURE ATIOMETRIC RANSDUCER ÷ 5V SIGNAL +5V = power supply for pressure transducers GND = ground for pressure transducers Pb3 and Pb4 = pressure transducer inputs 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 31/40...
-
Page 32: Pwm Output For Condensing Fan Speed Control
16.6 PWM O UTPUT FOR ONDENSING PEED ONTROL OUT3 and OUT4 = signals for the modulation of the condenser fan GND = ground for pressure transducers The compatible modules are the following: XV05PK mono-phase 500 Watt (2A) XV10PK mono-phase 1000 Watt (4A) XV22PK mono-phase 2200 Watt (9A) 1592022760 Quick reference guide iCHILL 200CX EVO rel. -
Page 33: Proportional Output For Fan Condensing Control Or For Compressor Inverter Controlled Or For Auxiliary Outputs
16.7 ROPORTIONAL UTPUT ONDENSING ONTROL OR OMPRESSOR NVERTER ONTROLLED OR UXILIARY UTPUTS OUT1…OUT4 = signals for the modulation of the condenser fan GND = ground for pressure transducers 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 33/40... -
Page 34: Proportional Output 0
16.8 0..10 PROPORTIONAL OUTPUT V TO CONTROL DUMPER MOTORS OUT1…OUT4 = signals for the modulation of the dumper motor GND = ground If the dumper motor has a common line between a pole of the power supply and the “–“ pole of the 0..10V signal, it is necessary to use two transformers for the power supply of the controller Ichill and the power supply of the dumper motor. - Page 35 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 35/40...
-
Page 36: Proportional Outputs Configured For Aux Relay Control
16.9 ROPORTIONAL OUTPUTS CONFIGURED FOR AUX RELAY CONTROL OUT1…OUT4 = signals for relays GND = ground 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 36/40... -
Page 37: Installing And Mounting
INSTALLING AND MOUNTING 17.1 PANEL CUT- OUT The instrument must be mounted on vertical panel with cut-out 71x29mm, and fixed using the special supplied bracket. Avoid locations subject to heavy vibration, corrosive gases or excessive dirt. Ensure ventilation around the instrument. 17.2 VERTICAL BOARDS VI620CX PANEL CUT-OUT The keyboard must be mounted on vertical panel with cut-out 72x56 mm, and screwed with two... -
Page 38: V2I820 Panel Cut-Out
WALL MOUNTING: use the vertical V-KIT (black, white and grey) as described in the following scheme: 17.1 V2I820 PANEL CUT-OUT ELECTRICAL CONNECTIONS The instrument is provided with: 2 removable terminal blocks MOLEX MICROFIT 14 and 18 ways for power supplay / digital and analogue inputs and modulating outputs ... -
Page 39: Technical Data
Wire size: signal cable AWG 24 power supply cable AWG 22 relay output AWG 17 General notes: Keep low voltage cables, such as analogue/digital inputs/outputs and probes, away from power cables. Respect the minimum load current of each relay output, in case of power loads use filtered contactors. - Page 40 1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 40/40...
