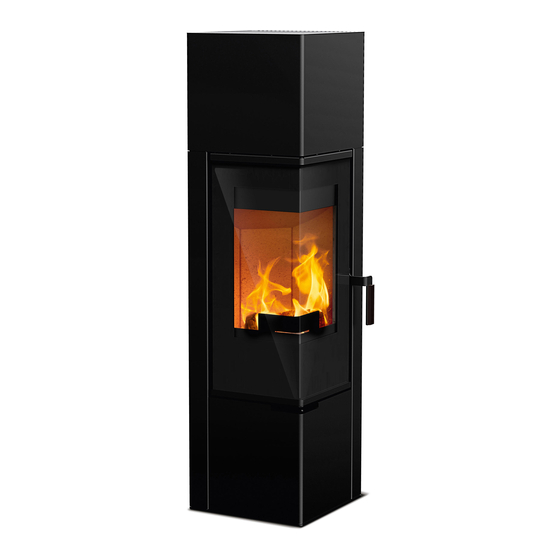

FORMA
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RIKA FORMA

Summary of Contents for RIKA FORMA

  • Page 1 FORMA Operating Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE Dimensions ......................................3 Amount of fuel ......................................3 Technical data ......................................3 Packaging .........................................3 Explanations to symbols ...................................3 Spare part overview - exploded diagram ..............................4 Spare part overview - article numbers ..............................6 2. IMPORTANT INFORMATION General warning and safety information ..............................7 First heating......................................7 Safety distances ......................................7 Prior to set up ......................................8...

  • Page 3: Preface

    1. PREFACE Dimensions Technical data RO-T2 Technical data RO-T3 RO-S Heating power range [kW] 3,5 - 7 Room heating capacity (depending on house [m³] 70 - 190 insulation) Fuel consumption [kg/h] to 1,7 Efficiency 81,3 10,0 CO-emission on 13% OO [mg/m Dust emission [mg/m...

  • Page 4: Spare Part Overview - Exploded Diagram

    Spare part overview - exploded diagram...

  • Page 6: Spare Part Overview - Article Numbers

    Spare part overview - article numbers Art.Nr.: Description Art.Nr.: Description Z36032 Door glass B17935 Bottom front panel complete Z36274 Glass retainer, upper N112170 Hexagon socket screw N100751 Flat allen screw M05 N100172 Washer N111643 Round hollow seal Ø12 N106175 Hexagonal nut B17568 Combustion chamber door black N111965...

  • Page 7: Important Information

    > 80 cm b > 20 cm RIKA stoves should only be installed in rooms with normal humidity (dry areas according to VDE 0100 Part 200). The furnaces are not splash water please observe a minimum distance of 20 cm behind and sideways the stove protected and may not be installed in wet areas.

  • Page 8: Prior To Set Up

    Prior to set up Stoves type 1 (BA 1): Suitable for multiple occupancy. (Note the different country regulations.) Floor bearing capacity Ensure that the substructure is capable of bearing the weight of the stove prior These may only be operated with the combustion chamber door closed. to set-up.

  • Page 9: Brief Information On Combustible Logs

    3. BRIEF INFORMATION ON COMBUSTIBLE LOGS Suitable fuels and fuel amounts Output controlling Your stove is generally suitable for burning dry firewood. You can also burn The output of your stove is regulated manually or via the Rikatronic-control. combustibles such as wood briquettes. Please observe that the output of your stove also depends on the chimney draught and the amount of fuel added.

  • Page 10: Installing The Stove

    The stove can also be pushed on this cardboard or carpet. Feeding in external combustion air We recommend original flue pipes from RIKA for proper connection. only for devices which are able to run in room-air independent operation. Connection to the chimney Combustion air must be fed to the stove from outside via a sealed pipe for operation independent of the room air.

  • Page 11: Assembly/Dismantling Stone And Options

    Cut out the rear wall of the green mark. For connection rear or lateral mount the 90° knee with cleaning lid from the standard RIKA flue pipe range. Please pay attention to be air tight! Mount the air inlet. The corresponding top panel (sold separately) is simply placed here, for example, for rear connection.

  • Page 12: Manual Operation

    6. MANUAL OPERATION Operating the riddle grate Correct heating up The ash is moved from the combustion chamber to the ash drawer by pushing 1. Press the control knob completely into “heating-up position” – primary and the riddle grate handle back and forth. This frees the way for the primary air secondary air intakes are opened completely in the heating-up position.

  • Page 13: Cleaning And Maintenance

    7. CLEANING AND MAINTENANCE Basic information Cleaning painted surfaces Wipe the painted surfaces with a damp cloth, do not scrub. Do not use solvent- Note containing cleaners. When you vacuum clean around the stove ensure that you do not vacuum into the combustion air intake during heating operation.

  • Page 14: Problems Possible Solutions

    8. PROBLEMS POSSIBLE SOLUTIONS Problem 1 Problem 2 Fire burns with weak, orange flame, window is sooted up. Stove smells strongly and / or fumes are emitted. Cause(s) Cause(s) Poor chimney draught Burning-in phase (taking into service) Damp wood Stove has accumulated dust and/or dirt Possible solution(s) Incorrect heating up Wait to end of burning-in phase and vent sufficiently...

  • Page 15: Guarantee

    In case of doubt as well as missing or incorrect translations, the German version is the only valid one. For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint.
  • Page 16 Technical and design changes, as well as typesetting and printing errors reserved © 2015 | RIKA Innovative Ofentechnik GmbH RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at RIKA.AT...
