Electrical system

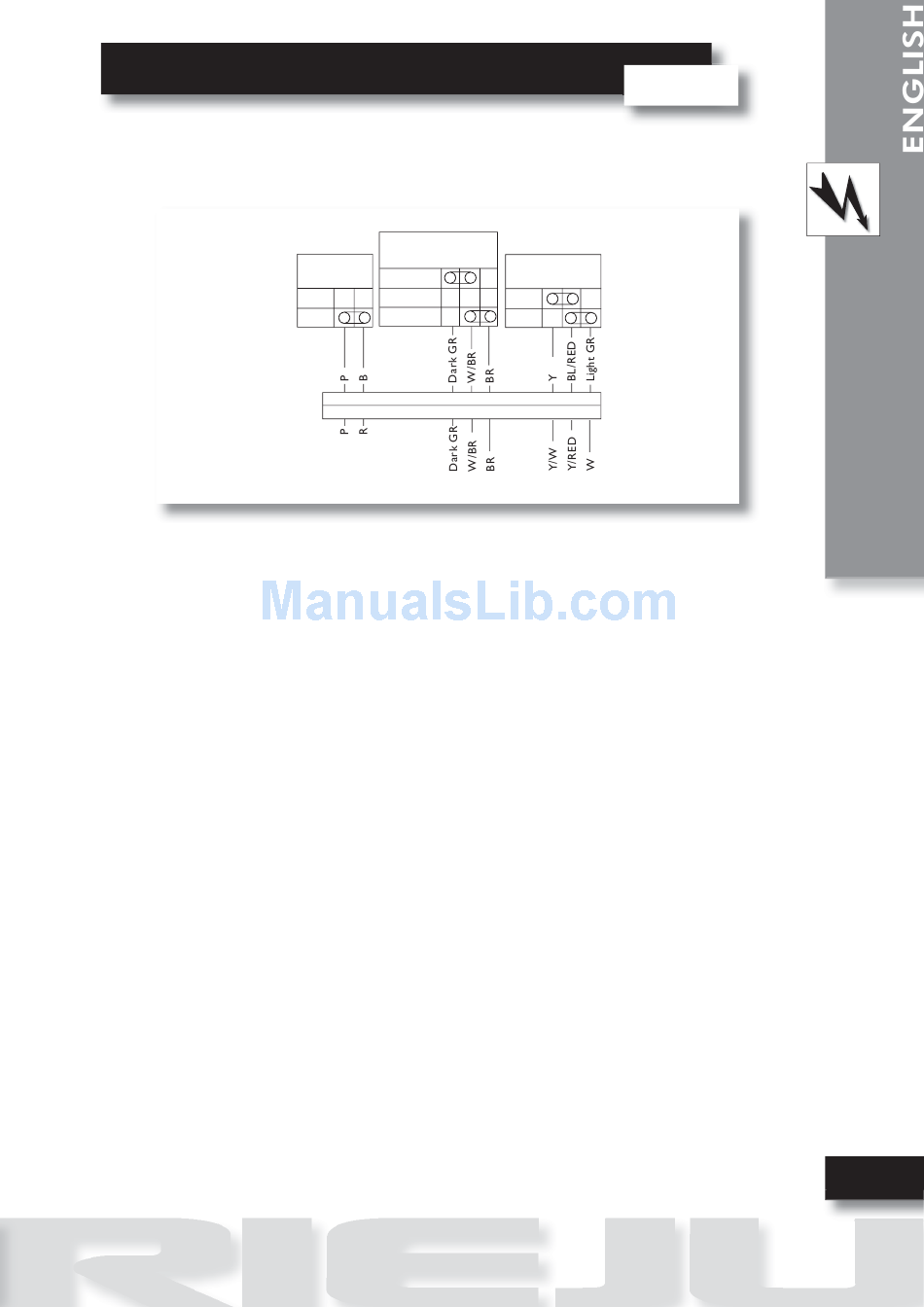

Checking the right controls:
Light switch, turn indicator switch and horn button.
HORN
BUTTON
OFF
ON
Check that there is a circuit between the connector cables.
Horn button
Pressing the horn button should create a circuit between the cables.
Colour: PINK/BLACK
Turn indicators switch
R/HAND position. Circuit between cables
Colour: Dark GREEN and WHITE/BROWN
L/HAND position. Circuit between the cables
Colour: WHITE/BROWN and BROWN
Light switch
HI position. Circuit between the cables
Colour: YELLOW and BLUE/RED
LO position. Circuit between the cables
Colour: BLUE/RED and Light GREEN
TURN INDICATOR
SWITCH
LIGHT
R/HAND
SWITCH
OFF
HI
L/HAND
LO
Chassis
61
