Removal

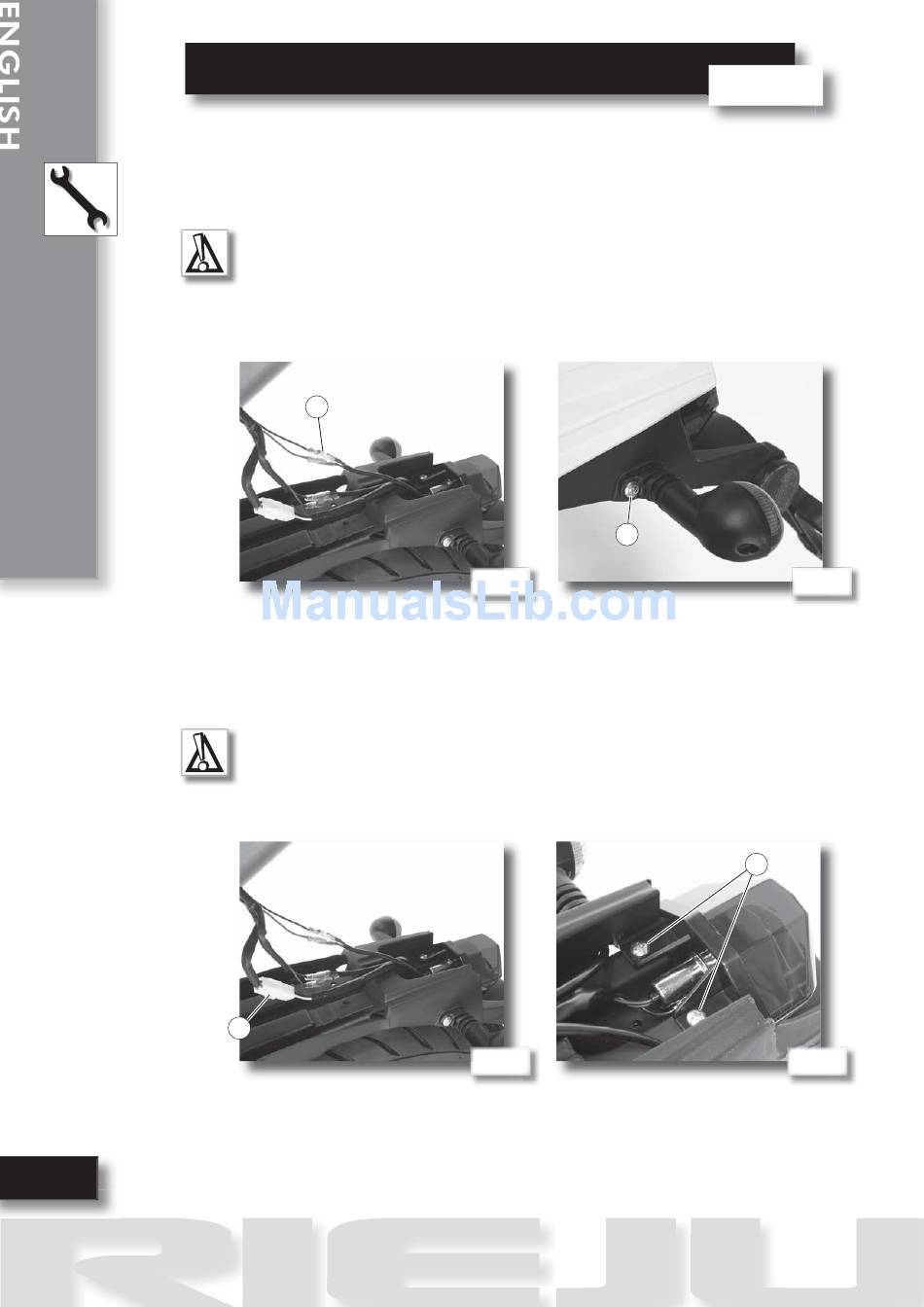

29. REAR TURN INDICATORS

* Carry out the first 2 steps in section 4. Rear cowling (F5-F6).
ATTENTION: Before removing the lights, pay attention to the sequence of the terminals
for later refitting (see wiring diagram).
Disconnect the cables (A/F-60) from the general wiring.
Then loosen the screw (B/F-61) securing the nut on the inside, and pull out the cable to
remove the light.
A

30. REAR LIGHT BULB

* Carry out the first 2 steps in section 4. Rear cowling (F5-F6).
ATTENTION: Before removing the lights, pay attention to the sequence of the terminals
for later refitting (see wiring diagram).
Disconnect the cables (A/F-62) from the general wiring.
Loosen the two screws (B/F-63) and remove the light.
A
B
F-60
F-62
Chassis
F-61
B
F-63
