Engine - RIEJU MRT 50 Chassis Workshop Manual

Removal
Chassis

25. ENGINE

* Remove the seat, the front and rear side covers, the fuel tank and the transmission chain.
Disconnect the 2 heater pipes from the cylinder head, disconnect the suction pipes (A/F-47)
and seperate the connector from the spark plug.
Disconnect the thermo-switch cable.
Disconnect the neutral cable, located at the bottom of the engine, the magneto cables and
the ECU cables.
Unscrew the bolts from the cover of the oil mixer and disconnect the transmission.
Empty the coolant circuit using the drain bolt (B/F-48).
Disconnect the cylinder head-radiator and pump-radiator hoses(C/F-48).
Remove the 3 self-locking nuts and remove the 3 bolts (D/F-49) securing the engine.
ATTENTION: leave the front bolt till last.
To remove the engine from the chassis cavity, do so from the left-hand side and withdrawing
the front part first.
A
C
B

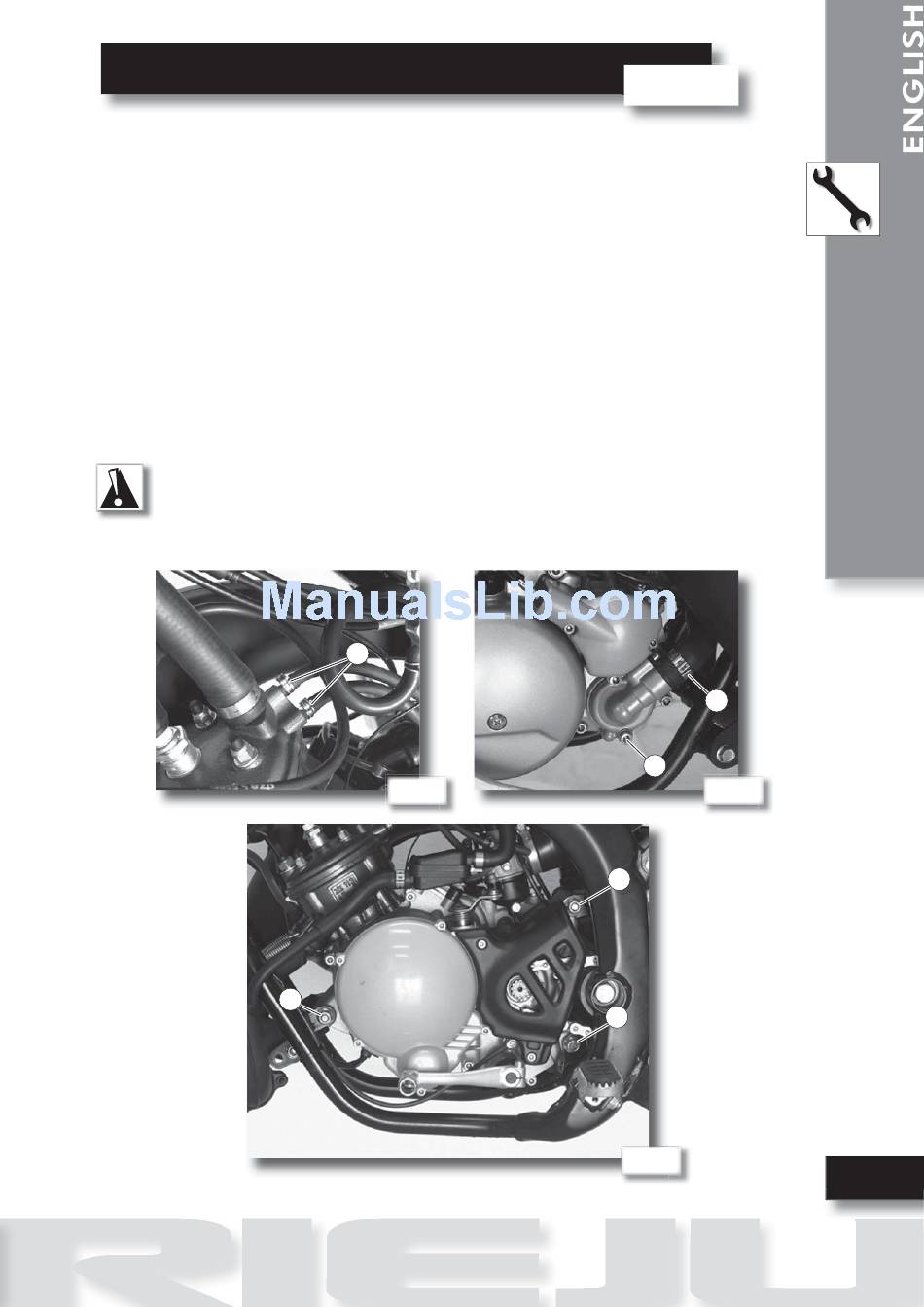

F-47 F-48
D
D
D
F-49
