Shock Absorber - RIEJU MRT 50 Chassis Workshop Manual

Removal

22. SHOCK ABSORBER

* Remove the seat, the front side covers, the rear fairings and the filter canister.
Unscrew the bolt and the top nut (A/F-40-42) securing the shock absorber to the chassis.
Unscrew the bottom bolt and the nut (B/F-41-43) from the rod (MRT SM version).
ATTENTION: Before removal, secure the chassis at the bottom to prevent the swinging
arm and the wheel from falling.
ATTENTION: Pay attention to the position of the shock absorber, to ensure it is refitted
correctly.
ATTENTION: the top shock absorber bolt in the MRT SM version is located in the rear
hole.
ATTENTION: the top shock absorber bolt in the MRT version is located in the front hole
rear.

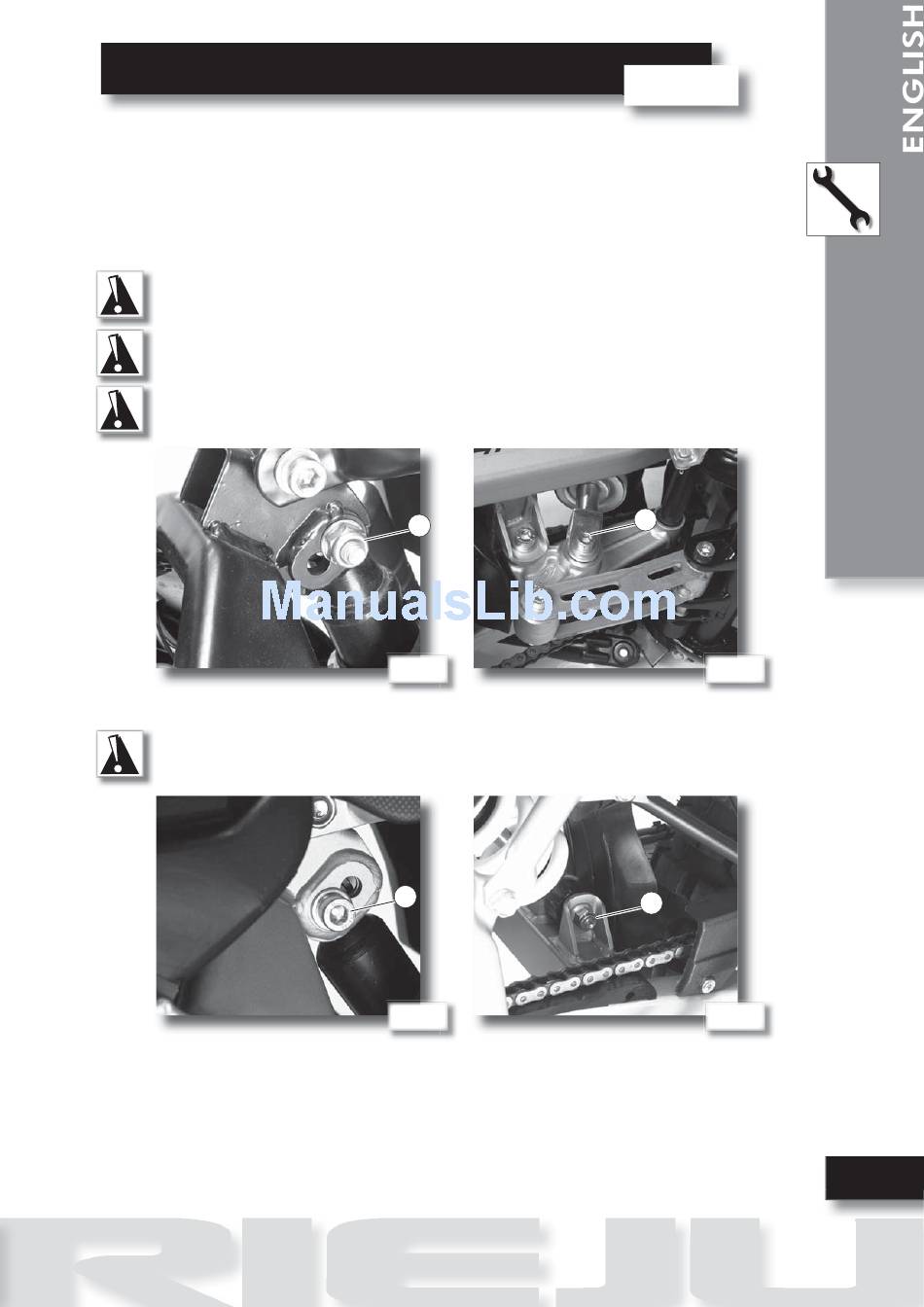

MRT SM
A
F-40
MRT
A
F-42
Chassis
MRT SM
B
F-41
MRT
B
F-43
