36
Removal

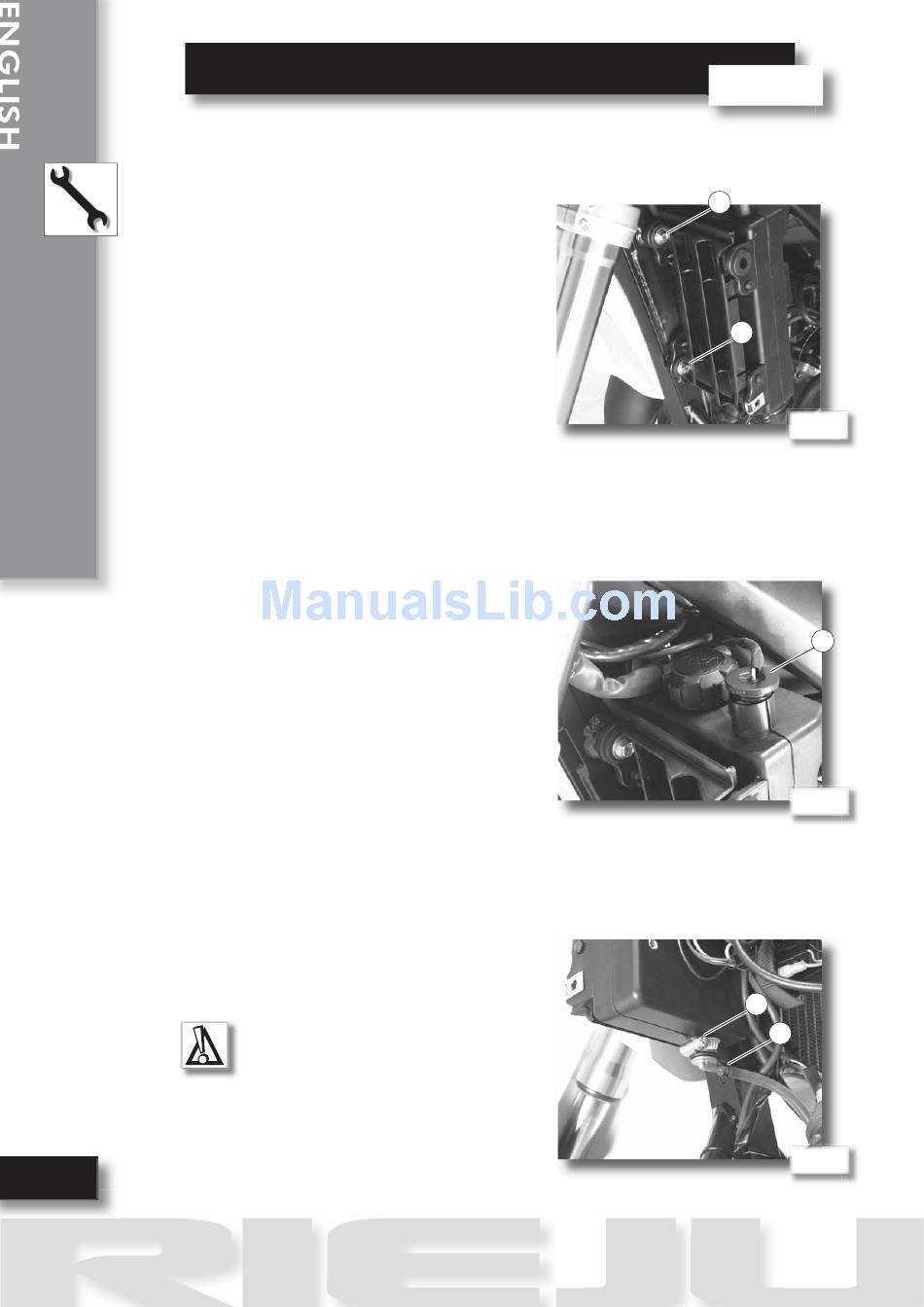

14. OIL TANK

* Remove the seat, the front left-hand side co-
ver, the oil sensor and the oil filter.
Unscrew the 2 screws (A/F-30) securing the
tank to the chassis, and remove it.

15. OIL SENSOR

* Remove the front left-hand cover. Discon-
nect the sensor from the general wiring and
pull it (A/F-31) upwards to withdraw it.

16. OIL FILTER

Loosen the clamp (A/F-32) and the clip
(B/F-32) securing the filter to the oil tank.
To remove it, pull it out.
ATTENTION: Place a container undernea-
th to collect the oil from the tank.
Chassis
A
A
F-30
A
F-31
B
A
F-32
