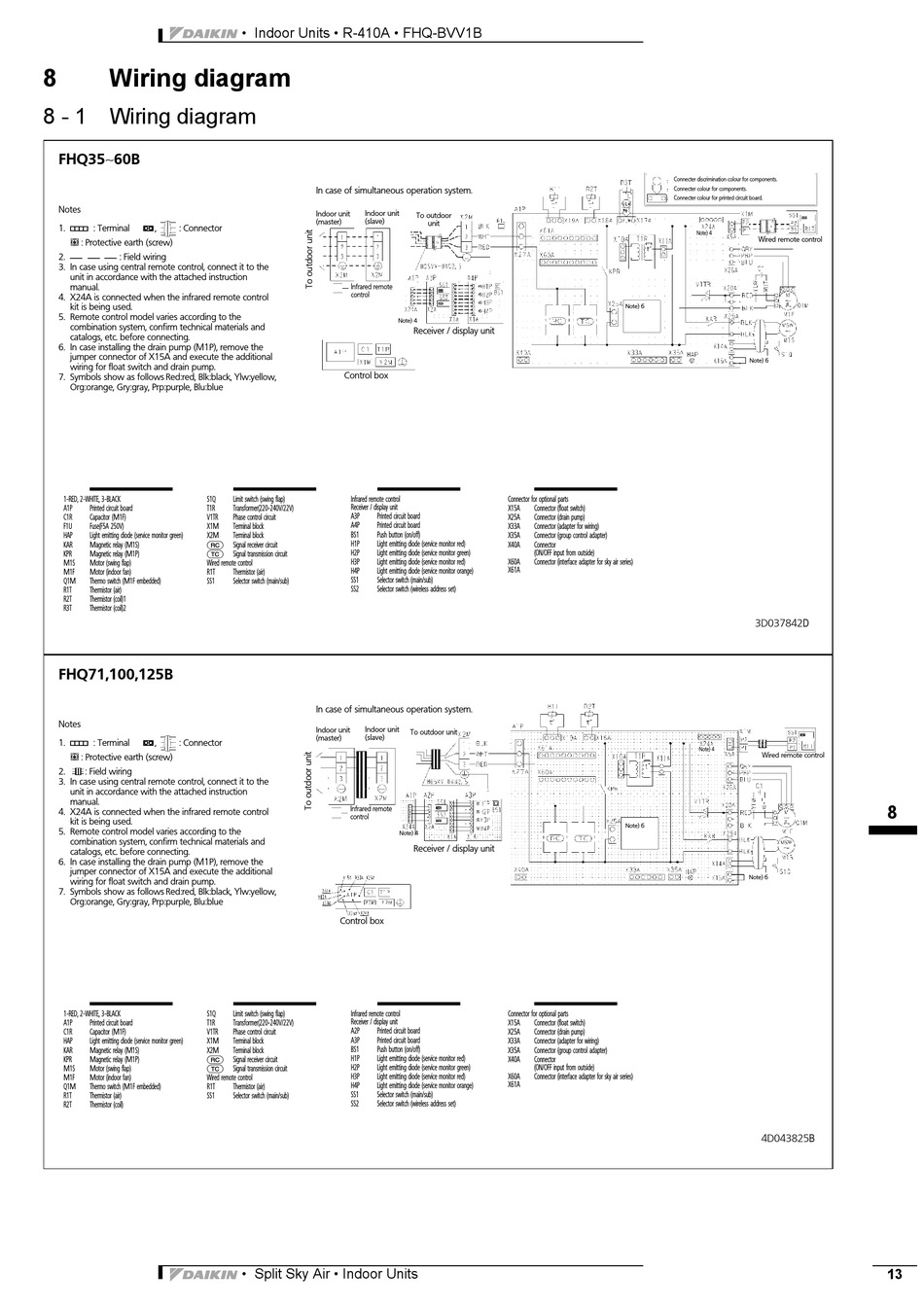

Wiring diagram

8 - 1 Wiring diagram
FHQ35∼60B
Notes
1. D : Terminal F , : Connector
b : Protective earth (screw)
2. B : Field wiring
3. In case using central remote control, connect it to the
unit in accordance with the attached instruction
manual.
4. X24A is connected when the infrared remote control
kit is being used.
5. Remote control model varies according to the
combination system, confirm technical materials and
catalogs, etc. before connecting.
6. In case installing the drain pump (M1P), remove the
jumper connector of X15A and execute the additional
wiring for float switch and drain pump.
7. Symbols show as follows Red:red, Blk:black, Ylw:yellow,
Org:orange, Gry:gray, Prp:purple, Blu:blue
1-RED, 2-WHITE, 3-BLACK S1Q
A1P Printed circuit board T1R
C1R Capacitor (M1F) V1TR
F1U Fuse(F5A 250V) X1M
HAP Light emitting diode (service monitor green) X2M
KAR Magnetic relay (M1S) ?
.
KPR Magnetic relay (M1P)
M1S Motor (swing flap) Wired remote control
M1F Motor (indoor fan) R1T
Q1M Thermo switch (M1F embedded) SS1
R1T Thermistor (air)
R2T Thermistor (coil)1
R3T Thermistor (coil)2
FHQ71,100,125B
Notes
1. D : Terminal F ,
: Connector
b : Protective earth (screw)
2. : Field wiring
3. In case using central remote control, connect it to the
unit in accordance with the attached instruction
manual.
4. X24A is connected when the infrared remote control
kit is being used.
5. Remote control model varies according to the
combination system, confirm technical materials and
catalogs, etc. before connecting.
6. In case installing the drain pump (M1P), remove the
jumper connector of X15A and execute the additional
wiring for float switch and drain pump.
7. Symbols show as follows Red:red, Blk:black, Ylw:yellow,
Org:orange, Gry:gray, Prp:purple, Blu:blue
1-RED, 2-WHITE, 3-BLACK S1Q
A1P Printed circuit board T1R
C1R Capacitor (M1F) V1TR
HAP Light emitting diode (service monitor green) X1M
KAR Magnetic relay (M1S) X2M
?
KPR Magnetic relay (M1P)
.
M1S Motor (swing flap)
M1F Motor (indoor fan) Wired remote control
Q1M Thermo switch (M1F embedded) R1T
R1T Thermistor (air) SS1
R2T Thermistor (coil)
• Indoor Units • R-410A • FHQ-BVV1B
In case of simultaneous operation system.
Indoor unit
Indoor unit
(master) (slave)
Infrared remote
control
Note) 4
Control box
Limit switch (swing flap) Infrared remote control
Receiver / display unit
Transformer(220-240V/22V)
A3P Printed circuit board
Phase control circuit
A4P Printed circuit board
Terminal block
BS1 Push button (on/off)
Terminal block
H1P Light emitting diode (service monitor red)
Signal receiver circuit
H2P Light emitting diode (service monitor green)
Signal transmission circuit
H3P Light emitting diode (service monitor red)
H4P Light emitting diode (service monitor orange)
Thermistor (air)
SS1 Selector switch (main/sub)
Selector switch (main/sub)
SS2 Selector switch (wireless address set)
In case of simultaneous operation system.
Indoor unit
Indoor unit
(master) (slave)
Infrared remote
control
Note) 4
Control box
Limit switch (swing flap) Infrared remote control
Receiver / display unit
Transformer(220-240V/22V)
A2P Printed circuit board
Phase control circuit
A3P Printed circuit board
Terminal block
BS1 Push button (on/off)
Terminal block
H1P Light emitting diode (service monitor red)
Signal receiver circuit
H2P Light emitting diode (service monitor green)
Signal transmission circuit
H3P Light emitting diode (service monitor red)
H4P Light emitting diode (service monitor orange)
Thermistor (air)
SS1 Selector switch (main/sub)
Selector switch (main/sub)
SS2 Selector switch (wireless address set)
• Split Sky Air • Indoor Units
To outdoor
unit
Receiver / display unit
Connector for optional parts
X15A Connector (float switch)
X25A Connector (drain pump)
X33A Connector (adapter for wiring)
X35A Connector (group control adapter)
X40A Connector
(ON/OFF input from outside)
X60A Connector (interface adapter for sky air series)
X61A
To outdoor unit
Receiver / display unit
Connector for optional parts
X15A Connector (float switch)
X25A Connector (drain pump)
X33A Connector (adapter for wiring)
X35A Connector (group control adapter)
X40A Connector
(ON/OFF input from outside)
X60A Connector (interface adapter for sky air series)
X61A
Connecter discrimination colour for components.
Connecter colour for components.
Connecter colour for printed circuit board.
Note) 4
Wired remote control
Note) 6
Note) 6
3D037842D
Note) 4
Wired remote control
Note) 6
Note) 6
4D043825B
