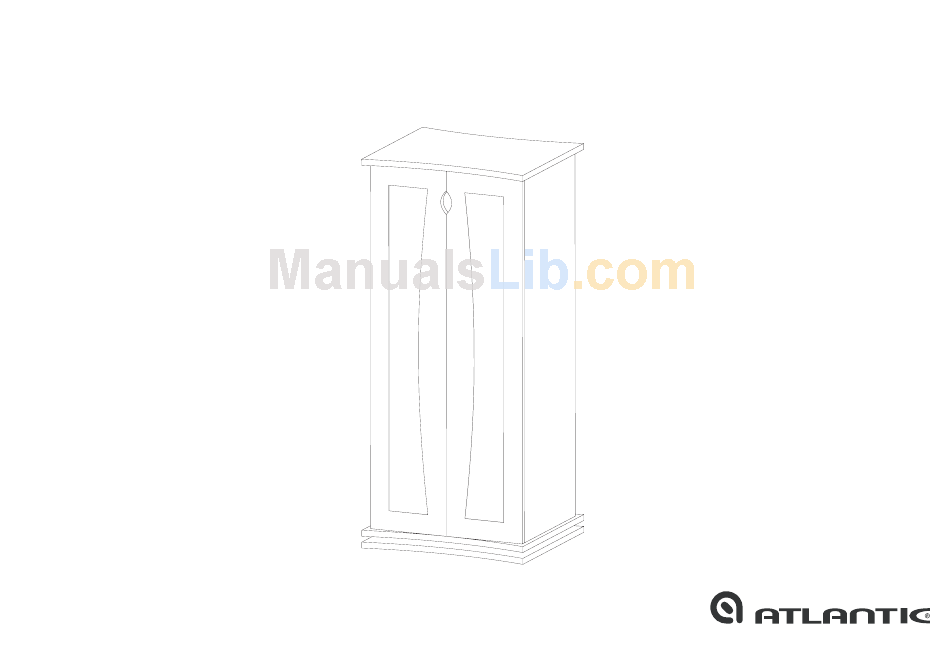

- Page 1 Eclipse 442 CD / 200 DVD # 33335427...
-
Page 2: Parts List
Las Herramientas Incluyeron Hex Key / Clef De Sortilège / Llave De Tuerca hexagonal s í á r É t é ä l ä s t i é r é e l l é t l l R5.1 070412 # 33335427... - Page 3 1 - Insert (K) into panels (E) and (F). Arrows should point towards screw opening, see diagram (1-A). Insérez (K) dans les montants (E) et (F). Les flèches doivent pointer vers l'ouverture prévue pour la vis, voir le schéma (1-A). Inserte (K) en los paneles (E) y (F).
- Page 4 5 - Attach panels (E) and (F) to panel (A). Turn cam locks (K) clockwise to secure. See diagram (5-A). Fixez les panneaux (E) et (F) au panneau (A). Tournez les serrures à came (K) dans le sens des aiguilles d’une montre pour maintenir en place. Voir le schéma (5-A). Conecte los paneles (E) y (F) al panel (A).
- Page 5 9 - Attach doors (G) and (H) to (A) and (B) with pins (P). Fasten bottom shelf (B) to (E) and (F) with screws (Q). À l’aide des broches (P), placez les portes (G) et (H) sur (A) et (B). Fixez le rayon du bas (B) à (E) et (F) à l'aide de vis (Q).
- Page 6 Coloque los estantes (I) sobre los pines (P). Placez les rayons (I) sur les taquets (P). s í á r É t é ä l ä s t i é r é e l l é t l l R5.1 070412 # 33335427...
