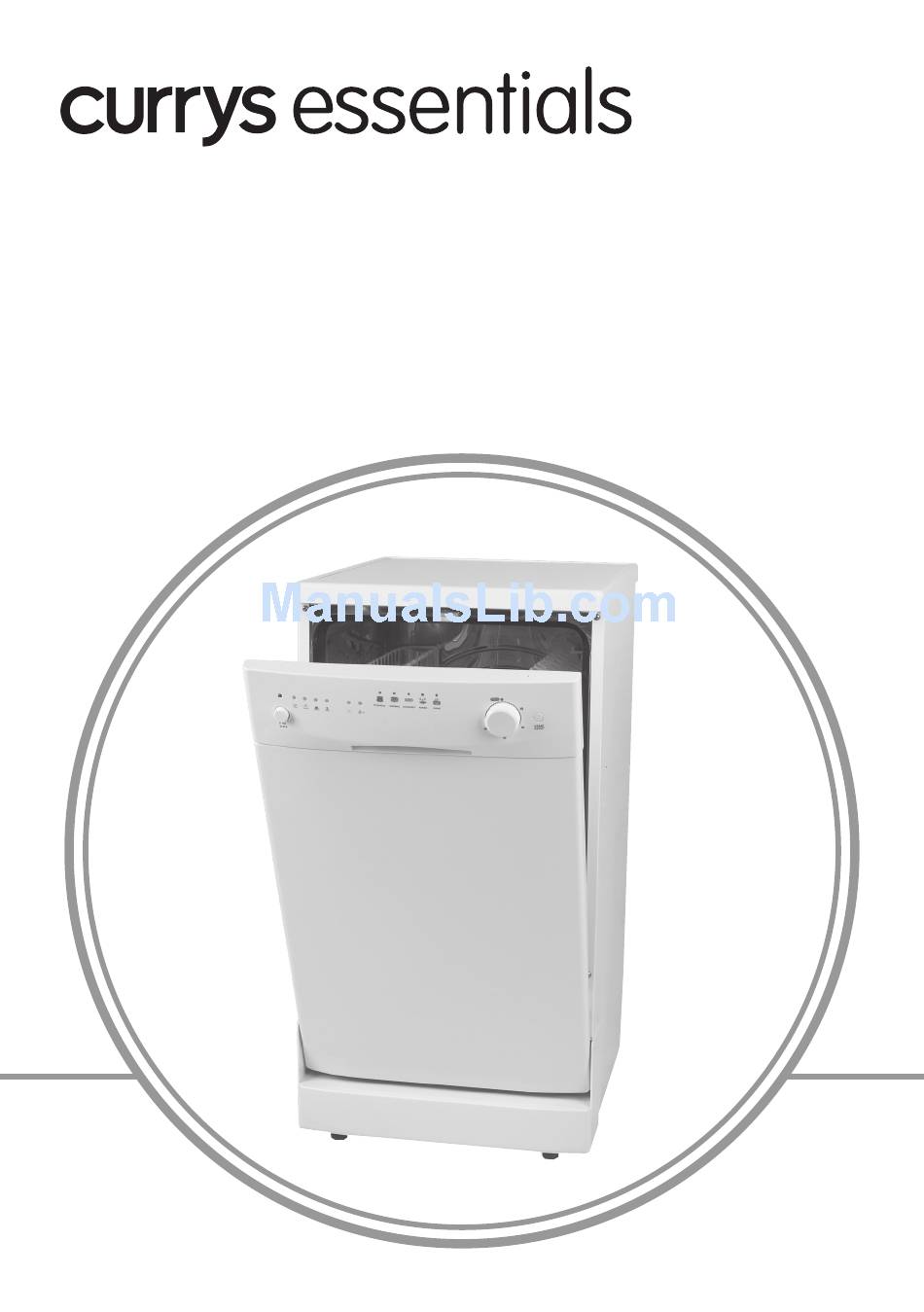

SLIMLINE DISHWASHER
IN S TA LL AT IO N /I NS TRU C T ION MAN UA L
C D W 4 5W 1 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDW45W10 and is the answer not in the manual?

Questions and answers

Related Manuals for Currys Essentials CDW45W10

Summary of Contents for Currys Essentials CDW45W10

  • Page 1 SLIMLINE DISHWASHER IN S TA LL AT IO N /I NS TRU C T ION MAN UA L C D W 4 5W 1 0...

  • Page 2: Table Of Contents

    Contents Unpacking ............................ 3 Installation ........................... 4 Location......................................4 Product Overview ........................8 Internal View ....................................8 Rear View ......................................8 Control Panel Overview ......................9 Before Operating ........................10 To Open the door ..................................10 To Close the door ..................................10 Adding the Detergent Powder and Tablet........................11 Adding of Rinse Aid .................................

  • Page 3: Unpacking

    P.N.: 673006200004 P.N.: 673002200079 U-shape hose holder x 1 Cutlery Basket x 1 Installation/Instruction manual x 1 P.N.: 673006200003 P.N.: 673002200049 P.N.: CDW45W10-004 If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.

  • Page 4: Installation

    INSTALLATION Location When selecting a position for your freestanding dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly.
  • Page 5 INSTALLATION 3. If required, the worktop of the dishwasher can be removed. The height without the worktop is 820 mm. The minimum dimensions required to accommodate the dishwasher within fitted kitchen furniture units. Do not connect the unit to the mains before installation.
  • Page 6 INSTALLATION 6. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are not kinked or squashed. The unit must not stand on the mains cable. 7. Make sure your plumbing is suitable for use water mains with the dishwasher.
  • Page 7 INSTALLATION • You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it. U-shaped drain hose holder water drain hose • Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.

  • Page 8: Product Overview

    Product Overview Internal View Cup Rack Upper Basket Salt Reservoir Spray Arm Lower Basket Filter Filtering System Spray Arm Salt Reservoir Detergent Rinse Aid Dispenser Reservoir Rear View Drain Oulet Water Inlet Drain Hose Mains Cable...

  • Page 9: Control Panel Overview

    Control Panel Overview PROG 1 INTENSIVE NORMAL ECONOMY RINSE RAPID SOAK START RESET 1. On/Off Button • To turn the dishwasher on and off. Power on light • Illuminates when On/Off button is pressed. 2. Washing Cycle Indicator • Illuminates when different washing cycle (pre-wash, main wash, rinse and drying) of the selected programme is in progress.

  • Page 10: Before Operating

    Before Operating To open the door • Pull the door handle to open the door. • If the door is opened during operation, all functions are automatically interruped. To close the door • After loading the dishes, push the baskets fully into the dishwasher. •...

  • Page 11: Adding The Detergent Powder And Tablet

    Adding the Detergent Powder and Tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent power or tablet. Please follow the steps below to fill the detergent dispenser. 1.

  • Page 12: Adding Of Rinse Aid

    Adding of Rinse Aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir.

  • Page 13: Adding Of Salt

    Adding of Salt If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water. Open Please follow the steps below to pour the salt into the salt reservoir and to correspond to the water hardness level in your area.

  • Page 14: Loading The Dishwasher

    Loading the Dishwasher Before Loading the Dishwasher In general, please observe the following notes before loading your cutlery and crockery in the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lay inside one another or cover each other. •...

  • Page 15: Hinged Cup Rack

    Hinged Cup Rack To make room for taller items in the dishwasher basket, lift the cup rack up. You can lean the tall glasses against it. You can also remove it when it is not required for use. Raise upwards Loading the Upper Basket for 8 Place Settings For optimal placement of crockery in the upper basket, please refer to the below list and image.

  • Page 16: Loading The Lower Basket For 8 Place Settings

    Loading the Lower Basket for 8 Place Settings For optimum placement of crockery in the lower basket, please refer to the below list and image. 1. Oval platter 2. Dinner plates 3. Soup plates 4. Dessert dishes 5. Cutlery basket Cutlery Basket To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket.

  • Page 17: Wash Cycle Table

    Wash Cycle Table Running Energy Water Cycle Selection Rinse Programme Process Detergent Time Consumption Consumption information (min.) (Kwh) For heaviest • Pre-wash soiled crockery, (50°C) • Pre-wash and normally • Wash (65°C) (4g) Intensive soiled pots, • Rinse 1.13 16.0 •...

  • Page 18: Starting A Wash Cycle

    Starting a Wash Cycle Please follow the steps below to start a wash cycle. 1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa). 2. Open the door. Pull out the dishwasher basket, load the dishes and push the baskets back. 3.

  • Page 19: Switching Off The Dishwasher

    Switching off the Dishwasher To save energy, please remember to switch the dishwasher off using the On/Off button. The dishwasher will continue to use electricity until it is switched off with the On/Off button. If the dishwasher is not going to be used for a long period of time, e.g. on holiday, please disconnect the dishwasher from the mains supply.

  • Page 20: Cleaning After Use

    Cleaning After Use External Care The Door and the Door Seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door.

  • Page 21: Frost Precaution

    Spray Arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. 1. Ensure the dishwasher is switched off. 2. Use a pointed object, for instance a cocktail stick, to loosen food particles in the spray arms’ jets. Do not attempt to remove the spray arms.

  • Page 22: Helpful Tips And Guide

    Helpful Tips and Guide Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. Before calling for service, please refer to Helpful Tips and Guide to solve some general problems by yourself.
  • Page 23 General Problems (continue) Problem Possible Causes Remedy The amount of rinse aid may Replenish the reservoir, adjust the be insufficient, or the rinse aid rinse aid dispenser dial to a higher reservoir is almost empty. setting or change the brand of Dishes, cutlery and glasses are rinse aid.

  • Page 24: Disposal Of Dishwasher

    Disposal of Dishwasher • When disposing your old dishwasher, first make it unusable. Disconnect, cut off the cable and the plug from the cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher. •...

  • Page 25: Specification

    Specifications Model CDW45W10 Dimensions 450mm (W) x 580mm (D) x 850mm (H) Capacity 8 Place Settings Water Pressure Required 0.04 - 1.00MPa Power Consumption 1930W Rated Voltage 230V~50Hz Off Mode Power Consumption Left-on Mode Power Consumption 0.4W Energy Efficiency Class...

  • Page 26: Safety Warnings

    Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. • Retain the manual.
  • Page 27 • Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles. • The door should not be left in the open position since this could present a tripping hazard. •...
  • Page 28 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: CDW45W10-004)
