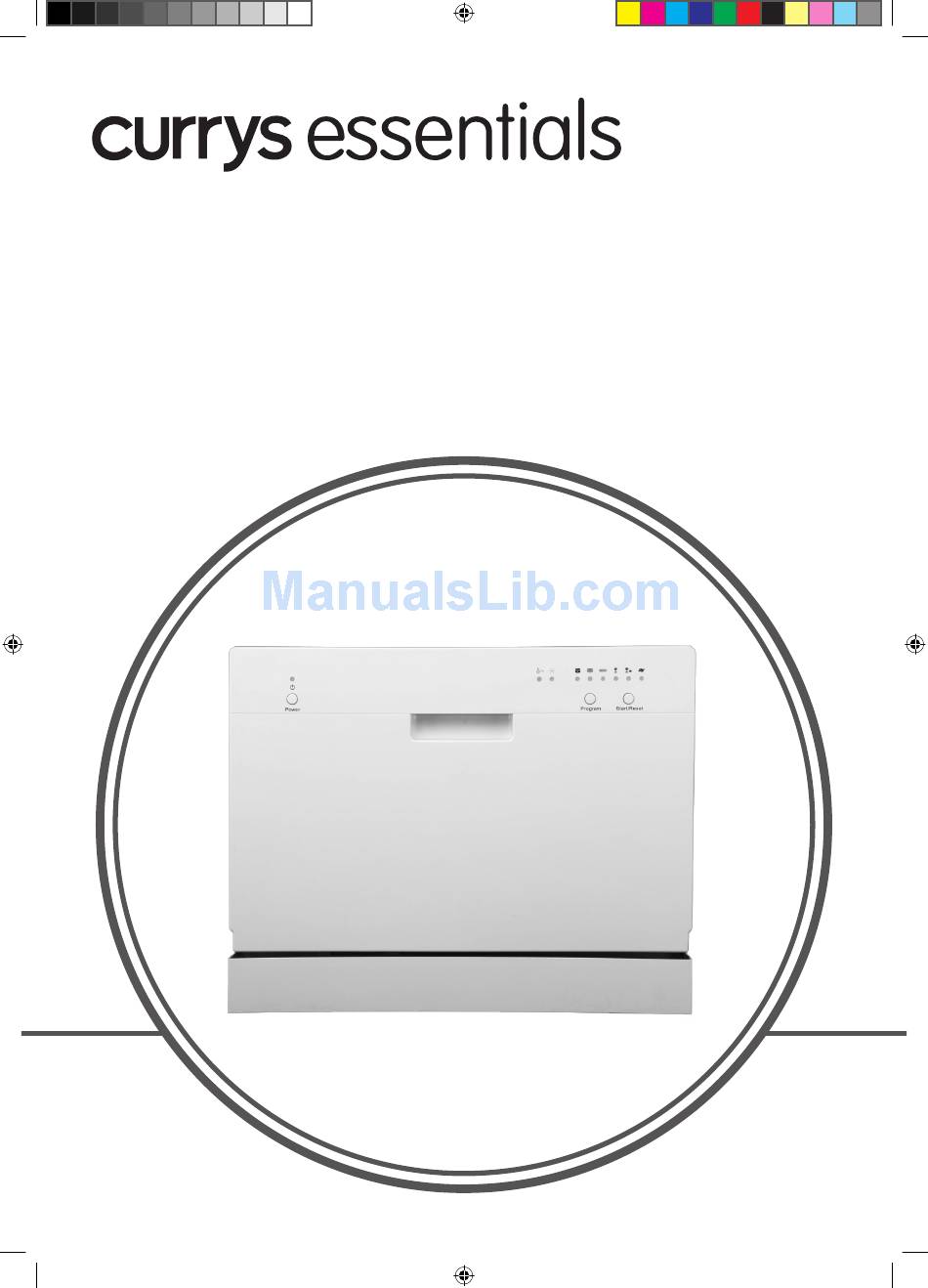

- Page 1 TABLE TOP DISHWASHER IN S TA L L AT I ON / I N ST R U C T I O N MANUA L CD W T T 1 1 CDWTT11_IB_110331.indd 1 3/31/11 5:13 PM...
-
Page 2: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Product Overview ........................8 Front View ................................. 8 Rear View ................................... 8 Dishwasher Basket and Cutlery Basket ......................9 Internal View................................9 Control Panel ................................10 Wash Cycle Table ........................11 Before Operating ........................ - Page 3 Frost Precaution ........................22 Moving the Dishwasher ......................22 Maintenance After a Prolonged Period of Non-Operation ............ 22 Hints and Tips ..........................23 Fault Code ................................23 Technical Problems ..............................23 Disposal of the Dishwasher ...................... 25 Disposal of Packing Material ....................25 Specifications ..........................
-
Page 4: Unpacking
Salt Funnel X 1 U-Shape Hose Holder X 1 Instruction Manual X 1 60ml (approx.) P.N.: 673002200001 P.N.: 673006200003 P.N.: CDWTT11-001 P.N.: 673006200004 If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance. GB-4 CDWTT11_IB_110331.indd 4... -
Page 5: Installation
INSTALLATION Location When selecting a position for your freestanding dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Page 6 INSTALLATION 3. Do not connect the unit to the mains socket before installation. Ensure you are not installing the unit right in front of the mains socket. This is to avoid potential damage to the back of the unit. After installing the appliance, ensure that the mains plug is easily accessible.
- Page 7 INSTALLATION 8. Make sure your plumbing is suitable for use with the dishwasher. If in doubt contact a qualified water mains plumber. This unit MUST BE connected to COLD WATER MAINS using the new water inlet hose. Y-Adaptor OLD HOSE SETS MUST NOT BE RE-USED. The (not included) water pressure from the water mains needs to Connect to...
-
Page 8: Product Overview
Product Overview Front View 1. Power Button and Indicator Light 2. Control Panel 3. Door Handle Rear View 4. Drain hose 5. Mains Cable (Connect To Electrical Mains Socket) 6. Water Inlet (Connect To Supply Hose) GB-8 CDWTT11_IB_110331.indd 8 3/31/11 5:14 PM... -
Page 9: Dishwasher Basket And Cutlery Basket
Dishwasher Basket and Cutlery Basket 7. Spikes 8. Cup Racks Internal View 9. Salt Reservoir 10. Spray Arms 11. Filtering System 12. Cutlery Basket 13. Detergent Dispenser (Dual Compartment) 14. Rinse Aid Dispenser GB-9 CDWTT11_IB_110331.indd 9 3/31/11 5:14 PM... -
Page 10: Control Panel
Control Panel Program Start/Pause 1. Power Indicator 5. Programme Button • The LED light will illuminate when the • To select your required washing programme. dishwasher is on. • Each press of this button switches from one 2. On / Off Button washing programme to another. -
Page 11: Wash Cycle Table
Wash Cycle Table Detergent Cycle Running Energy Water Rinse Amount Time Consumption Consumption Programme Cycle Process Selection (Pre-wash/ Information (min.) (Kwh) Main wash) Intensive • Pots, • Pre-wash • Prre-wash 0.94 utensils and (50°C) (3g) cutlery. • Wash (70°C) • Main Wash • Highly • Rinse (70°C) (15g) -
Page 12: Before Operating
Before Operating To Open the Door • Pull the door handle. • If the door is opened during operation all functions are automatically interrupted. To Close the Door • After loading the dishes, push the baskets fully into the dishwasher. •... -
Page 13: Adding Detergent Or Detergent Tablet
Adding Detergent or Detergent Tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Bleach and Irritant Countertop detergent • Keep out of the reach of children • Irritating to eyes. -
Page 14: Adding Rinse Aid
Adding Rinse Aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. -
Page 15: Adding Salt
Adding Salt If the water in your area is hard, deposits will form on your dishes and utensils. This appliance contains a salt reservoir for you to reduce the hardness of the water. Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area. -
Page 16: Loading The Dishwasher
Loading the Dishwasher Before Loading the Dishwasher Please observe the following notes before loading your cutlery and crockery into the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lay inside one another, or cover each other. •... -
Page 17: Dishwasher Basket
For safety reasons, do not operate the dishwasher without the upper and lower baskets in place. Dishwasher Basket Please use the dishwasher basket for small and lightweight items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the upper basket. -
Page 18: Loading The Dishwasher Basket For 6 Place Settings
Loading the Dishwasher Basket for 6 Place Settings For loading the dishwasher basket, please refer to the table below. Number Item Cups Medium serving bowl Glasses Saucers Dish Oval platter Dinner plates Soup plates Dessert dishes Cultery basket Cutlery Basket Loading the Cutlery Basket To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. -
Page 19: Starting A Wash Cycle
Starting a Wash Cycle Please follow the steps below to start a wash cycle. 1. Ensure the unit is connected to the mains power and the water supply is on (water pressure between 0.04MPa and 1.00MPa). 2. Open the door. Pull out the dishwasher baskets, load the dishes and push the baskets back. 3. -
Page 20: Switching Off The Unit
Switching Off the Unit To save energy, remember to switch the dishwasher off using the ON/OFF button. The dishwasher will continue to use electricity until it is switched off with the ON/OFF button. If the dishwasher is not going to be used for a long period of time, e.g. whilst on holiday, disconnect the unit from the mains supply. -
Page 21: Cleaning After Use
Cleaning After Use External Care The Door and the Door Seal • Clean the door seals regularly with a soft damp cloth to remove food deposits. • When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. -
Page 22: Spray Arms
Spray Arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. • Use a pointed object, e.g. a cocktail stick, to loosen food particles in the spray arms’ jets. Do not attempt to remove the spray arms. -
Page 23: Hints And Tips
Hints and Tips Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. Fault Code Codes Possible Causes Remedy Water tap is not turned on. - Page 24 General Problems Problem Possible Causes Remedy Detergent residue is left in the The detergent dispenser was Make sure the dispenser is dry before dispenser at the end of the still damp when detergent was adding detergent. programme. added. The detergent dispenser lid Clogged detergent residue is Clean the catch.
-
Page 25: Disposal Of The Dishwasher
Disposal of the Dishwasher • When disposing your old dishwasher, first make it unusable. Disconnect the hoses and unplug the mains cable. Cut off the mains cable from the dishwasher. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher. -
Page 26: Specifications
Specifications Model CDWTT11 Dimensions 550 mm (W) x 500 mm (D) x 438 mm (H) Capacity 6 Place Settings Water Pressure Required 0.04 - 1.00MPa Power Consumption 1280W Rated Voltage 230V/50Hz Features and specifications are subject to change without prior notice. -
Page 27: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. • Retain the manual. - Page 28 • Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles. • The door should not be left in the open position since this could present a tripping hazard. •...
- Page 29 CDWTT11_IB_110331.indd 29 3/31/11 5:14 PM...
- Page 30 CDWTT11_IB_110331.indd 30 3/31/11 5:14 PM...
- Page 31 CDWTT11_IB_110331.indd 31 3/31/11 5:14 PM...
- Page 32 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: CDWTT11-001) CDWTT11_IB_110331.indd 32 3/31/11 5:14 PM...
