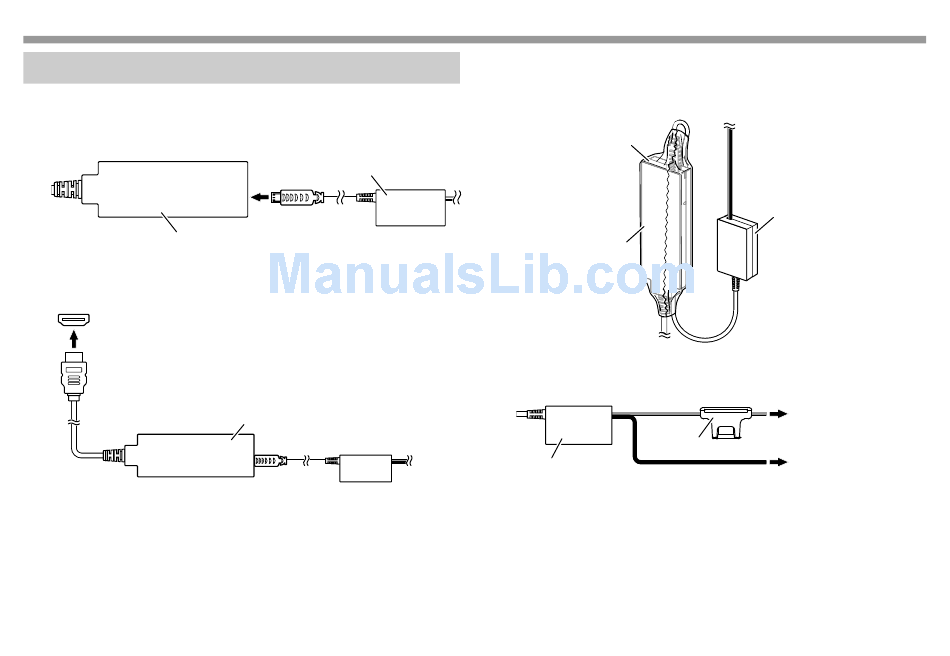

Connecting the adapter

When connecting the adapter to the AV receiver, refer also to the
instruction manual supplied with the AV receiver.
1
Connect the power supply box to the adapter.
Adapter
2
Connect the adapter to the HDMI input terminal on the
AV receiver.
HDMI input terminal on the AV receiver
4
Power supply box (supplied)
Adapter
3
Fix the adapter and the connector of the power supply
box using the soft tape to protect the adapter and its
connection.
Adapter
Soft tape (supplied)
4
Connect the power supply box to the vehicle.
Red (ignition wire)
Power supply box
Black (ground wire)
(supplied)
Power supply box
(supplied)
To ignition key switch (ACC)
5A fuse
To car chassis (ground)
