Bulletin No.: 036

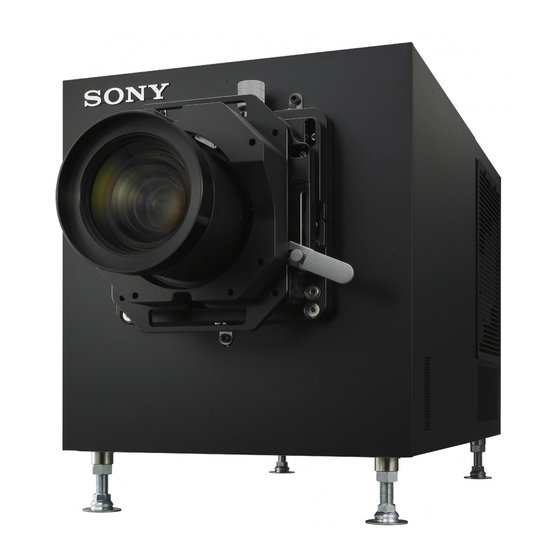

SRX-R515P
SRX-R515P v1.00.0 Networking Functionality
Overview
The SRX-R515P with v1.00.0 software is now available but cannot be connected to the Sony
TMS until the next version up. The SRX-R515P however is still capable of being controlled
over the network and accessing DCP and KDMs from a central storage device. This allows
the R515 to be installed at inaccessible locations, such as projection pods, but still able to be
operated over the network. Below is a list of functions that are described in this document:
Network overview of SRX-R515P
Configuring SRX-R515P IP addresses
Configuring Storage Server IP addresses
Accessing the R515 GUI over the network
Setting up a folder share for DCP/KDM ingest over the network
Configuring R515 to access a folder share for DCP/KDM ingest
Configuring R515 to access a FTP server for DCP/KDM ingest
Note. It is not recommended to perform ingesting operations or SPL editing during
play-out when using SRX-R515P v1.00.0 software. This is expected to be improved in
the next firmware version.
Login and navigate to
DCinema Bulletin Archive:
https://filex.sony-europe.com/
Dealers/Digital Cinema Bulletins
th
19
February, 2013
folder

Advertisement

loading

Related Manuals for Sony SRX-R515P

Summary of Contents for Sony SRX-R515P

  • Page 1 SRX-R515P v1.00.0 Networking Functionality Overview The SRX-R515P with v1.00.0 software is now available but cannot be connected to the Sony TMS until the next version up. The SRX-R515P however is still capable of being controlled over the network and accessing DCP and KDMs from a central storage device. This allows the R515 to be installed at inaccessible locations, such as projection pods, but still able to be operated over the network.
  • Page 2 Bulletin No.: 036 February, 2013 SRX-R515P Network Overview of SRX-R515P When connecting the SRX-R515P to a network there are two required network connections to the XCT-S10 server, and one network connection between the XCT-S10 and the XCT- M10 (IMB). XCT‐S10 (Server) – Network Ports Figure 1 - XCT-S10 rear view 10 –...
  • Page 3 Bulletin No.: 036 February, 2013 SRX-R515P Connecting R515 to a Windows storage device The diagram below shows a typical example of a storage device connected to 2x SRX- R515P projectors. Projector  1 Projector 2 CTRL Port IP  – 192 .168 .101 .11 CTRL Port IP  – 192.168.101.12 DATA Port IP – 192.168.201.11 DATA Port IP – 192.168.201.12 SRX‐R515...
  • Page 4 SRX-R515P Configuring SRX-R515P IP addresses To configure the IP address of the SRX-R515P login to the GUI on the touchscreen. Go to Configuration > System > Network. Select Manual IP Address. In the screen shot below the following details were used.
  • Page 5 Bulletin No.: 036 February, 2013 SRX-R515P Configuring Storage Server IP Addresses The storage server or PC that you wish to connect to the R515 will require an IP address on the same subnet as the CTRL Port to access the GUI, and an IP address on the same subnet as the DATA port for the server to be seen as a DCP/KDM source.
  • Page 6 = IP address of CTRL in port of projector A certificate issue with the website may occur, press “proceed anyway” to continue to the GUI screen. Please see the SRX-R515P installation manual for more details on how to avoid this message.
  • Page 7 \\192.168.201.5\library1 6- This will give all users of the server/PC access to this share folder. 7- Copy DCPs into this folder which you wish to share with the SRX-R515P (make sure you copy them into separate folders). 8- Inside this Library1 folder if you create a folder named ‘KDM’ you can place KDMs in this folder which can be browsed to for KDM ingest.
  • Page 8 Bulletin No.: 036 February, 2013 SRX-R515P Configuring R515 to access a folder share for DCP/KDM ingest 1- Login to the R515 GUI using the webpage address 2- Go to Configuration tab > Library tab > Folders tab 3- Enter the following information a.
  • Page 9 5- The source is now shown in the list Figure 7 - Source List 6- Shutdown the SRX-R515P via the GUI (grey box at the top right) and turn off projector head breaker. Power on the projector head breaker and then the XCT-S10.
  • Page 10 Bulletin No.: 036 February, 2013 SRX-R515P Figure 9 - External Folder DCP List via Network Share A typical network share ingest speed is around 40-50MB/s which will result in a typical 2hour feature to be ingested in around 1 hour.
  • Page 11 Bulletin No.: 036 February, 2013 SRX-R515P Configuring R515 to access a FTP server for DCP/KDM ingest The procedure below assumes that a FTP server is setup on the server/PC with a user account that has the library as the FTP root folder.
  • Page 12 10- The source is now shown in the list Figure 10 - Source List 11- Shutdown the SRX-R515P via the GUI (grey box at the top right) and turn off projector head breaker. Power on the projector head breaker and then the XCT-S10.
  • Page 13 Bulletin No.: 036 February, 2013 SRX-R515P 12- Login and go to Library > External Folder list then click ‘Open’. A list of DCPs will be shown. Select and open required DCP folder, then select DCP file and click Ingest. Figure 12 - External Folder DCP List via FTP A typical network share ingest speed is around 100MB/s which will result in a typical 2hour feature to be ingested in around 30 minutes.
