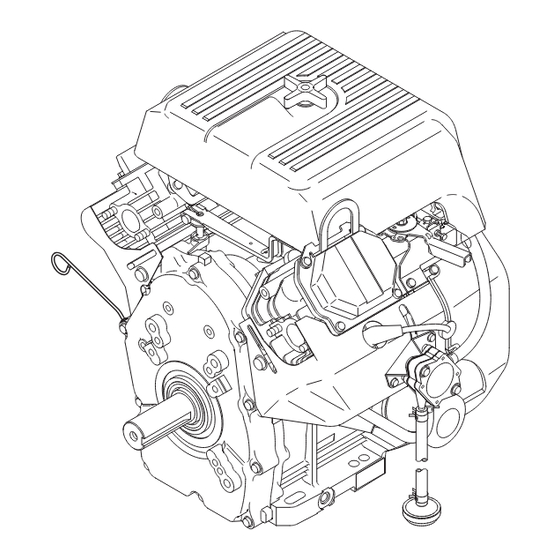

  • Page 1 0163728en 0807 Engine WM 650 WM 720 OPERATOR’S MANUAL...

  • Page 3: Table Of Contents

    Recommended Fuel ................21 Before Starting ................... 21 To Start / To Stop ................21 Maintenance Periodic Maintenance Schedule (WM 650) ........22 Periodic Maintenance Schedule (WM 720) ........23 Spark Plug ..................24 Engine Oil and Filter ................25 Air Cleaner ..................

  • Page 4: Foreword

    CALIFORNIA Proposition 65 Warning: Engine exhaust, some of its constituents, and certain vehicle components, contain or emit chemicals known to the State of WARNING California to cause cancer and birth defects or other reproductive harm. Foreword This manual provides information and procedures to safely operate and maintain this Wacker model.

  • Page 5: Emission Control System Information

    Emission Control System Information WM 650 / WM 720 Emission Control System Information Source of Emissions The combustion process produces carbon monoxide, oxides of nitrogen, and hydrocarbons. Control of hydrocarbons and oxides of nitrogen is very important because, under certain conditions, they react to form photochemical smog when subjected to sunlight.
  • Page 6 WM 650 / WM 720 Emission Control System Information Replacement Parts The emission control systems on your Wacker engine were designed, built, and certified to conform with EPA and California emissions regulations. We recommend the use of genuine Wacker parts whenever you have maintenance done.
  • Page 7 Emission Control System Information WM 650 / WM 720 METHANOL - (methyl or wood alcohol) 5% by volume. You may use gasoline containing up to 5% methanol by volume, as long as it contains cosolvents and corrosion inhibitors to protect the fuel system.
  • Page 8 WM 650 / WM 720 Emission Control System Information EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE This emission warranty is applicable in all States, except the State of California. Wacker Corporation, N92 W15000 Anthony Avenue, Menomonee Falls, WI 53051-1504, (herein "Wacker") warrant(s) to the initial retail purchaser and each subsequent owner, that this non-road engine (herein "engine") has been designed, built, and equipped to conform...
  • Page 9 Emission Control System Information WM 650 / WM 720 PARTS COVERED Listed below are the parts covered by the Emission Components Defect Warranty. Some of the parts listed below may require scheduled maintenance and are warranted up to the first scheduled replacement point for that part.
  • Page 10 WM 650 / WM 720 Emission Control System Information OBTAINING WARRANTY SERVICE To obtain warranty service, take your engine to the nearest authorized Wacker service dealer. Bring your sales receipts indicating date of purchase for this engine. The service dealer authorized by Wacker will perform the necessary repairs or adjustments within a reasonable amount of time and furnish you with a copy of the repair order.
  • Page 11 Emission Control System Information WM 650 / WM 720 THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY: MAINTENANCE AND REPAIRS You are responsible for the proper maintenance of the engine. You should keep all receipts and maintenance records covering the performance of regular maintenance in the event questions arise.
  • Page 12 WM 650 / WM 720 Emission Control System Information Your emission control system may include parts such as the carburetor or fuel-injection system, fuel lines and the ignition system. Also included may be hoses, clamps, connectors and other associated components.
  • Page 13 Emission Control System Information WM 650 / WM 720 GENERAL EMISSIONS WARRANTY COVERAGE - California Only - Wacker warrants to the ultimate purchaser and each subsequent purchaser that this small off-road engine (1) has been designed, built and equipped so as to conform with all applicable regulations; and (2)
  • Page 14 WM 650 / WM 720 Emission Control System Information Wacker is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part. Throughout the engine warranty period stated above, Wacker will maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
  • Page 15 Emission Control System Information WM 650 / WM 720 C. Warranted Parts: The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if Wacker demonstrates that the engine has been abused, neglected, or...

  • Page 16: Safety Information

    WM 650 / WM 720 Safety Information Safety Information This manual contains DANGER, WARNING, CAUTION, NOTICE and NOTE callouts which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 17: Operating Safety

    Safety Information WM 650 / WM 720 Operating Safety Familiarity and proper training are required for the safe operation of equipment! Equipment operated improperly or by untrained personnel can be dangerous! Read the operating instructions contained in this WARNING manual and familiarize yourself with the location and proper use of all controls.

  • Page 18: Operator Safety While Using Internal Combustion Engines

    WM 650 / WM 720 Safety Information Operator Safety while using Internal Combustion Engines Internal combustion engines present special hazards during operation and fueling! Read and follow all warning instructions and safety guidelines in this manual. Failure to follow warnings and safety DANGER guidelines could result in severe injury or death.

  • Page 19: Service Safety

    Safety Information WM 650 / WM 720 Service Safety A poorly maintained machine can become a safety hazard! In order for the machine to operate safely and properly over a long period of time, periodic maintenance and occasional repairs are necessary.

  • Page 20: Safety Labels

    WM 650 / WM 720 Safety Information Safety Labels Wacker machines use international pictorial labels where needed. These labels are described below: Label Meaning Read the operator's manual for machine infor- mation. WARNING! Hot surface! DANGER! Engines emit carbon monoxide; operate only in well-ventilated area.

  • Page 21: Operation

    Operation WM 650 / WM 720 Operation Recommended Fuel The engine requires regular grade unleaded gasoline. Use only fresh, clean gasoline. Gasoline containing water or dirt will damage fuel system. Consult engine Owner’s Manual for complete fuel specifications. Before Starting 4.2.1...

  • Page 22: Maintenance

    WM 650 / WM 720 Maintenance Maintenance Periodic Maintenance Schedule (WM 650) Wacker Daily After Every Every Every before first starting 20 hrs. hrs. hrs. hrs. Check fuel level. Check engine oil level. Inspect air filter. Replace as needed. Clean engine head and cylinder fins.

  • Page 23: Periodic Maintenance Schedule (Wm 720)

    Maintenance WM 650 / WM 720 Periodic Maintenance Schedule (WM 720) Wacker Daily After Every Every Every Every before first starting 20 hrs. hrs. hrs. hrs. hrs. Check fuel level. Check engine oil level. Clean engine head and cylinder fins.

  • Page 24: Spark Plug

    WM 650 / WM 720 Maintenance Spark Plug See Graphic: wc_gr000028 Clean or replace spark plug as needed to ensure proper operation. The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the muffler while it is hot.

  • Page 25: Engine Oil And Filter

    Maintenance WM 650 / WM 720 Engine Oil and Filter See graphic: wc_gr004396 Drain the oil while the engine is still warm. To drain oil: 5.4.1 Remove the filler cap (a) and drain cap (d). Drain oil into a suitable container.

  • Page 26: Air Cleaner

    WM 650 / WM 720 Maintenance Air Cleaner See Graphic: wc_gr003002 NEVER use gasoline or other types of low flash-point solvents for cleaning the air cleaner. A fire or explosion could result. WARNING NOTICE: NEVER run the engine without the air cleaner. Severe engine damage will occur.

  • Page 27: Storage

    Maintenance WM 650 / WM 720 Storage If unit is to be stored for more than 30 days: 5.6.1 Drain fuel from tank. Start engine and run until remaining fuel is used. 5.6.2 Change engine oil. 5.6.3 Remove spark plugs and pour approximately 3 ml (1 ounce) of SAE 30W oil into each engine cylinder through spark plug opening.

  • Page 28: Technical Data

    WM 650 / WM 720 Technical Data Technical Data WM 650 WM 720 Engine Engine Type type 4-stroke, 2 cylinder, air cooled Engine Make type Wacker Rated Power kW (Hp) 12.3 (16.5) 18.6 (25.0) @ 3100 rpm @ 3600 rpm 15.3 (20.5)
  • Page 29 Maintenance WM 650 Notes...
