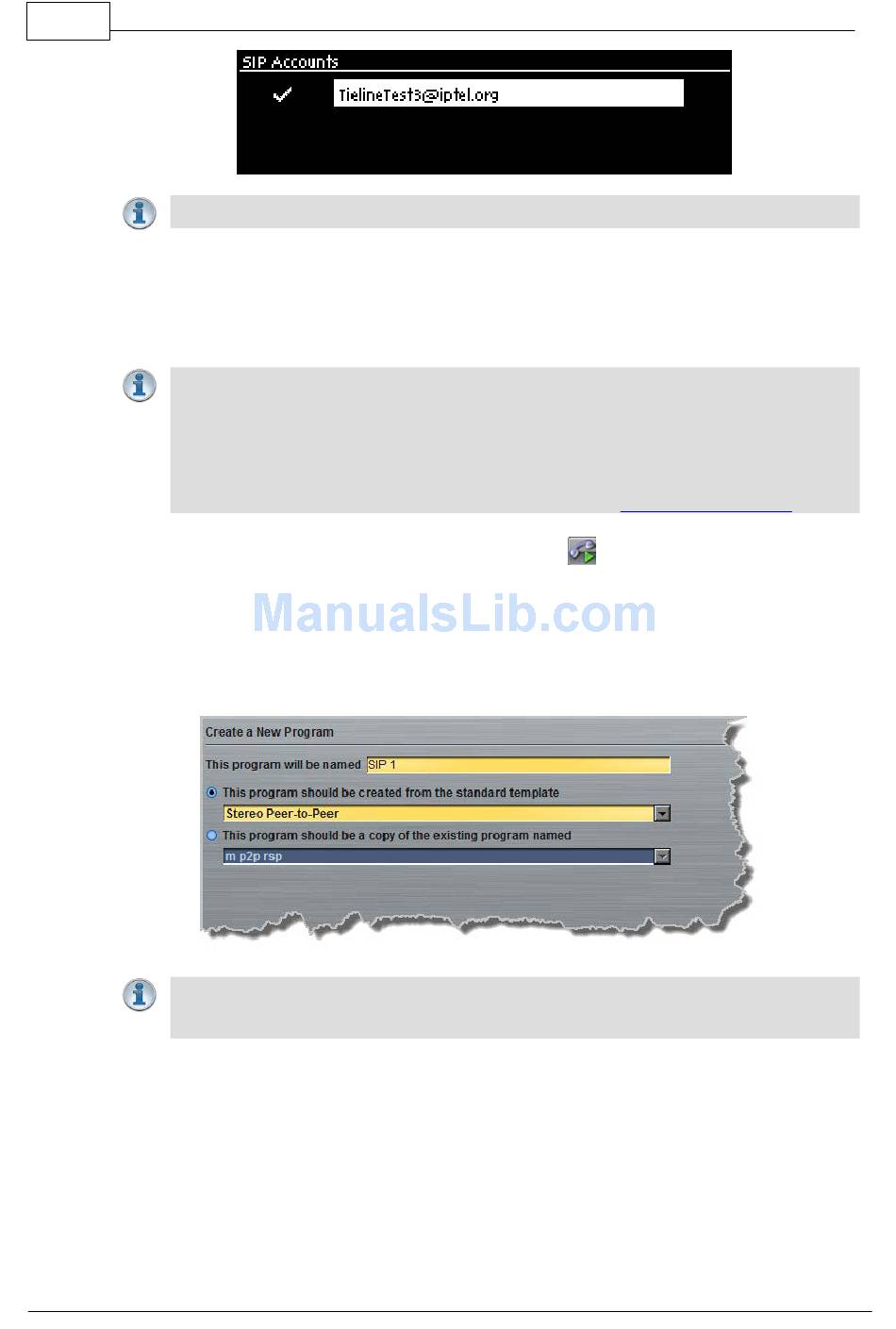

Configure Peer-To-Peer Sip Programs - Tieline MerlinPLUS User Manual

162 Merlin PLUS User Manual v1.4
Important Notes: Some ISPs may block SIP traffic over UDP port 5060.
22.13

Configure Peer-to-Peer SIP Programs

SIP programs are like a normal IP program to configure, with two small differences; entering a SIP
address and selecting SIP as the Session Protocol.
Important Notes: Before you start program configuration please note:
1. Open the Java Toolbox Web-GUI and click the Programs
display the Programs panel.
2. Click the New Program button to open the wizard and:
· Click in the Program Name text box to name the new program.
· Select Mono/Stereo Peer-to-Peer, or if you want to use an existing program as a template,
select this option. Then click Next.
Important Notes: When you choose to use an existing program as a template, the new
program inherits all the settings of the template program and you can adjust these
settings as required by continuing through the program wizard.
3. Enter a name for the Audio Stream and configure the codec to dial, answer or dial and
answer. Then click Next.
Note: The following example will display how to configure a dial and answer program. If you want the
codec to either dial or answer only, select the option and the wizard will automatically display
screens to allow you to configure the codec correctly.
· You cannot edit a program when it is currently loaded in the codec.
· Some drop-down menus and settings may be greyed out intentionally depending on
features available.
· Failover and SmartStream PLUS redundant streaming are not available with SIP
connections.
· To learn more about programs see the section titled About Program Dialing.
symbol at the top of the screen to
