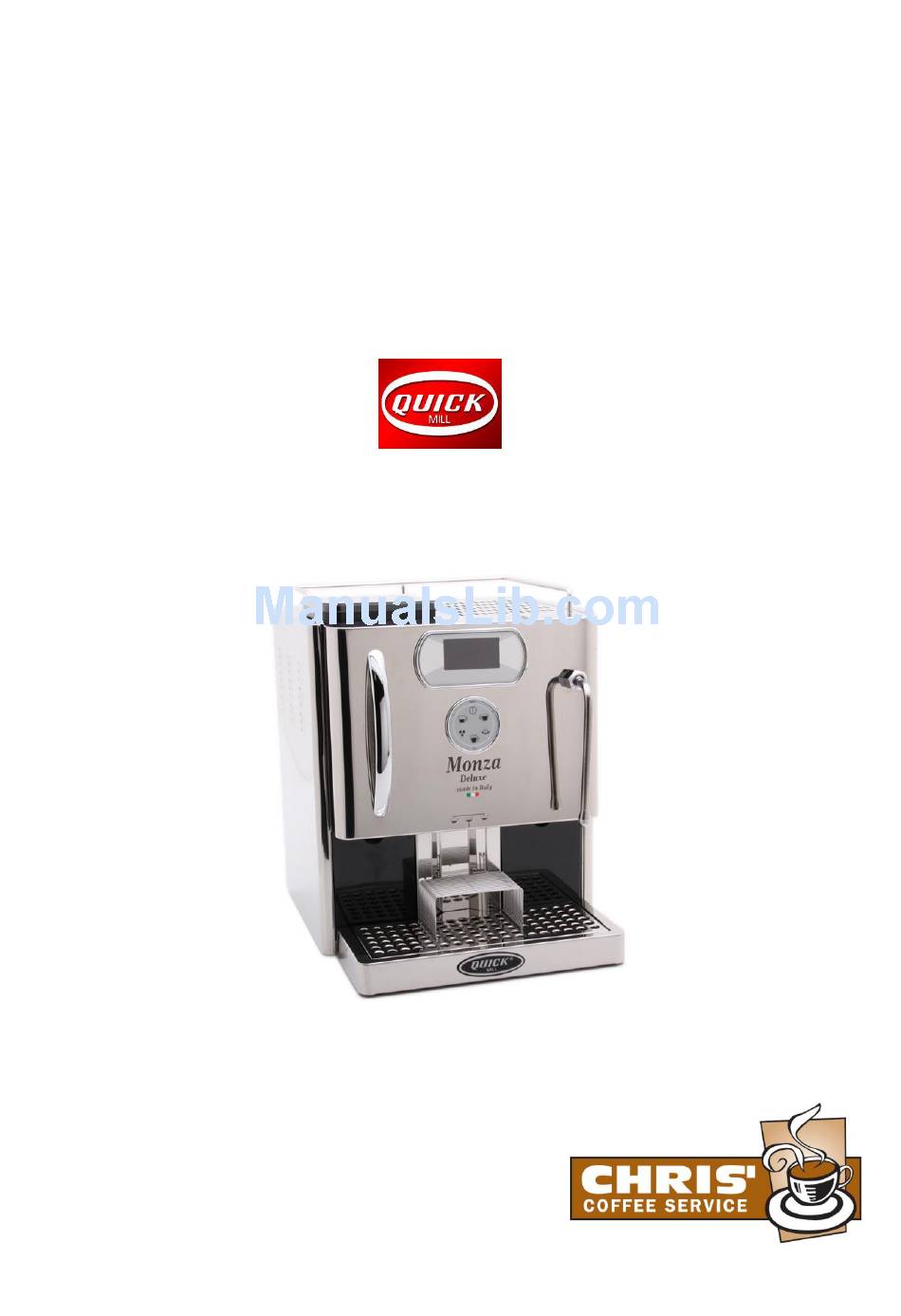

  • Page 1 Monza Deluxe Super Automatic Espresso Machine Owner’s Manual Revised 1.30.14...

  • Page 2: Features

    Monza Deluxe Super Automatic Espresso Machine Introduction We would like to thank you for purchasing the Monza Deluxe Super Automatic Espresso Machine by Quick Mill. Before using the machine we suggest you carefully read this manual to obtain the necessary information for correct use and servicing of the product.

  • Page 3: Table Of Contents

    Monza Deluxe Super Automatic Espresso Machine INDEX  FEATURES ................................1 INTRODUCTION ..............................1 INDEX ..................................2 DESCRIPTION ..............................2 SAFETY ................................. 2 TECHNICAL SPECIFICATIONS ........................... 3 IMPORTANT SAFEGUARDS ..........................3 DIAGRAMS ................................4 FRONT ................................... 4 INSIDE ................................... 4 BACK ..................................

  • Page 4: Technical Specifications

    Monza Deluxe Super Automatic Espresso Machine  The steam boiler is equipped with a pressure relief valve calibrated at 2.5 bar  Packaging materials such as (plastic and a resettable hi-limit switch that bags, expanded polystyrene, nails, interrupts heating in the event of a fault.

  • Page 5: Diagrams

    Monza Deluxe Super Automatic Espresso Machine DIAGRAMS FRONT 1. Bean Hopper 2. Display 3. Touchpad 4. Water Reservoir 5. Drip Tray 6. Cup Warming Tray 7. Steam/Hot Water Wand 8. Grounds Drawer 9. Cup Pedestal 10. Raised Platform (optional) INSIDE 1.

  • Page 6: Touchpad

    Monza Deluxe Super Automatic Espresso Machine TOUCHPAD 1. Power/Menu/Decaf Button 2. Short Espresso/- Button 3. Tall Espresso/+ Button 4. Hot Water Button 5. Steam Arm Button 6. Milk Frother/Exit Button DISPLAY 1. Steam Boiler Temperature 2. Brew Group Temperature ACCESSORIES 1.

  • Page 7: First Time Set Up

    Monza Deluxe Super Automatic Espresso Machine FIRST TIME SET UP DIRECT CONNECT KIT  For direct connect installation the use of  Before using the machine, your water a filter system is recomended. The direct should be tested for hardness. This is connect kit is set up with a 1/4”...

  • Page 8: Grinder Adjustment

    Monza Deluxe Super Automatic Espresso Machine GRINDER ADJUSTMENT MAKING ESPRESSO This grinder adjustment is for particle size only, for quantity of coffee please refer to the menu settings.  Making espresso with the Monza is as simple as just pressing a ...

  • Page 9: Decaf Mode

    Monza Deluxe Super Automatic Espresso Machine DECAF MODE STEAM WAND OPERATION  Before steaming, purge the excess  The decaf mode allows the user to water from the wand by hanging use pre-ground decaf coffee. the wand into the drip tray and ...

  • Page 10: Automatic Milk Frother

    Monza Deluxe Super Automatic Espresso Machine AUTOMATIC MILK FROTHER  Press the frother button twice for  The Monza is equipped with an continuous frothing and then press automatic milk frother for making the button again to stop frothing. delicious lattes and cappuccinos.

  • Page 11: Menu Settings

    Monza Deluxe Super Automatic Espresso Machine MENU SETTINGS  The menu section goes over all of the advanced features and settings that are available through the touchpad. It is recommended that you read the following instructions before making any changes.
  • Page 12 Monza Deluxe Super Automatic Espresso Machine Enables the machine to turn off automatically after a pre-set time of inactivity. Time starts from when the last shot was made. Press enter to access the 2.4.2 Auto off menu and use the + and – keys to set the automatic turn off time, press enter to confirm and esc to exit.

  • Page 13: Maintenance

    Monza Deluxe Super Automatic Espresso Machine the machine will block when credits are used up and show “credit finished” (it can dispense only hot water and steam). LANGUAGE Enter to access Italian/German/English/ + And – to select language then Enter to confirm and esc. to exit...

  • Page 14: Troubleshooting

    Monza Deluxe Super Automatic Espresso Machine TROUBLESHOOTING  How To Move The Piston Assembly In the case that your piston assembly becomes seized in the down position, please follow these simple instructions to get you back up and running again.
  • Page 15 Monza Deluxe Super Automatic Espresso Machine TROUBLESHOOTING CONTINUED  Refill Water Tank Alarm - The water reservoir is equipped with a water level float to let the machine know when it is out of water. If the refill water tank alarm becomes active then rinse out the reservoir and fill with fresh water.
  • Page 16 Monza Deluxe Super Automatic Espresso Machine TROUBLESHOOTING CONTINUED  No Steam From Steam Wand - Verify the machine is up to operating temperature. Check the steam tip holes for a milk blockage. Clean holes with a paper clip or unscrew steam tip to clean trapped milk inside tip and/or arm.
  • Page 17 Monza Deluxe Super Automatic Espresso Machine TROUBLESHOOTING CONTINUED – The control board on the Monza is  Particular Function Not Working equipped with 9 fuses to protect the various components throughout the machine. The picture below shows which component each fuse is for.

  • Page 18: Warranty

    Monza Deluxe Super Automatic Espresso Machine Warranty The Monza comes with a 1 year warranty starting from the original date of purchase to protect against defects in materials or workmanship. The warranty is void if the product has been damaged by abuse, neglect, or modification.
