Summary of Contents for Nederman CX 5500

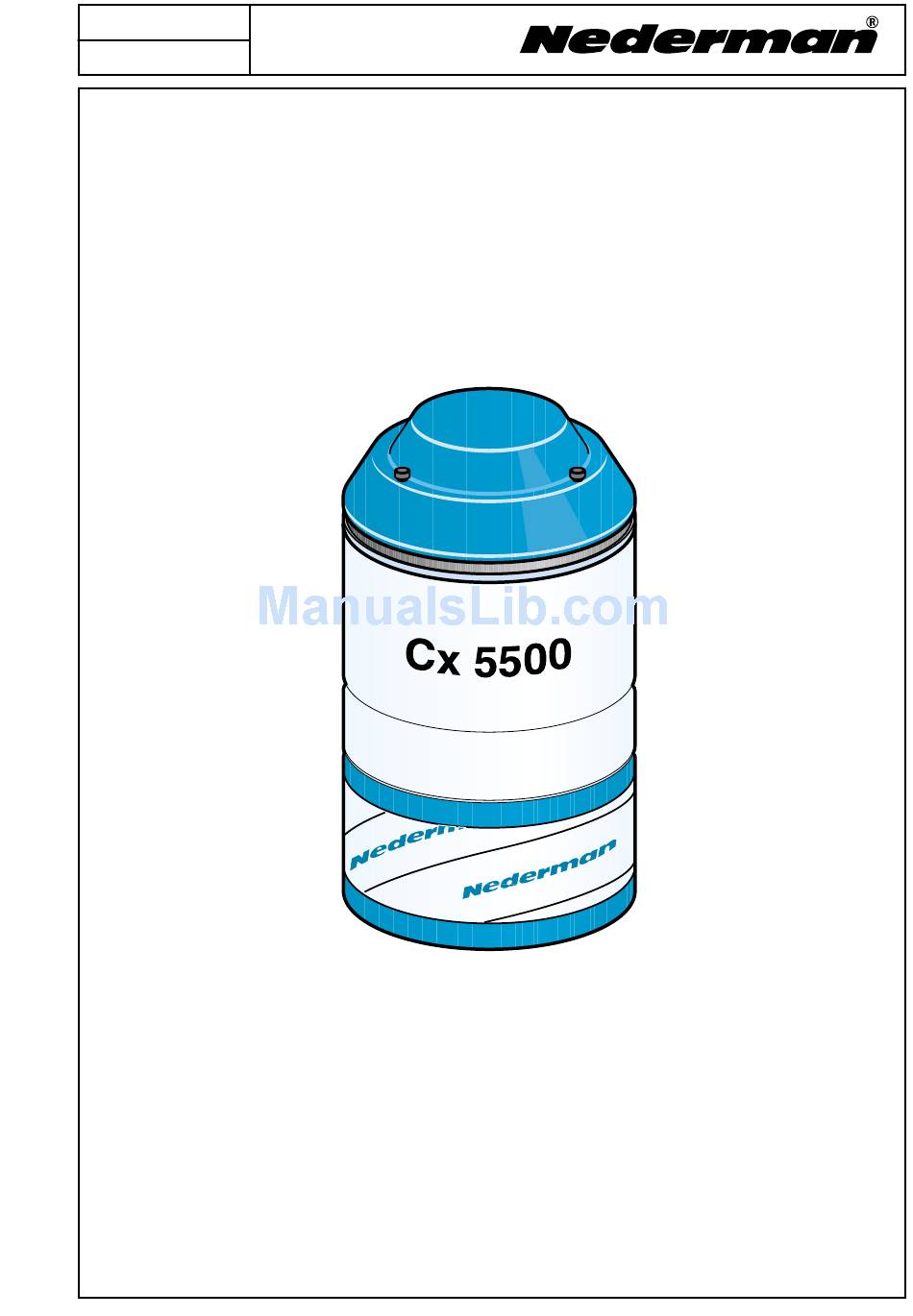

- Page 1 N0. 148258 00 CX 5500 DAT.1998-10-26 Operating and Instruction manual...
- Page 2 CX 5500 ENGLISH Technical data 8.6 kg 43 dB(A) 120/230 V = 50/60 Hz 0 - 30˚ C Must only be used for Safety regulations * Spot suction of soldering fume. CE-marking The CE-marking on the machine denotes that the * Spot suction of gases (No explosive gases).
- Page 3 The filtered fume is pressed uppwards through the centre hole Install the CX 5500 as follows: (main filtre) and through the HEPA filter. When the 1 Connect the unit's cable (27) to a main socket fume has been cleaned it turns down again and is with required voltage, according to rating plate.
- Page 4 CX 5500 ENGLISH Filter change Replacing fuses The machine's filters should be replaced when the Turn off the machine and disconnect it from the suction level becomes reduced. main socket. Turn off the machine. Replacing the fuse: 1 Undo the lock knobs (2) on the top cover (1).
-
Page 5: Spare Parts
CX 5500 ENGLISH Spare parts 371503 HEPA filter 580655 Fuse 2,0 A (120V) 580665 371518 Fuse1,0 A (230V) Carbon brushes 371602 371514 Thermal fuse Motor 77˚C 371506 Partikel/Gasfilter Order instruction When ordering spare parts always state: - Part no. and control no. (from the type label of the product). -
Page 6: Declaration Of Conformity
We, AB Lectrostatic, declare under our sole responsibility Wir, AB Lectrostatic, erklären in alleiniger Verant-wortung, daß that the product CX 5500 to which this declaration relates is das Produkt CX 5500 auf das sich diese Erklärung bezieht, mit in conformity with the following standards or other normative...
