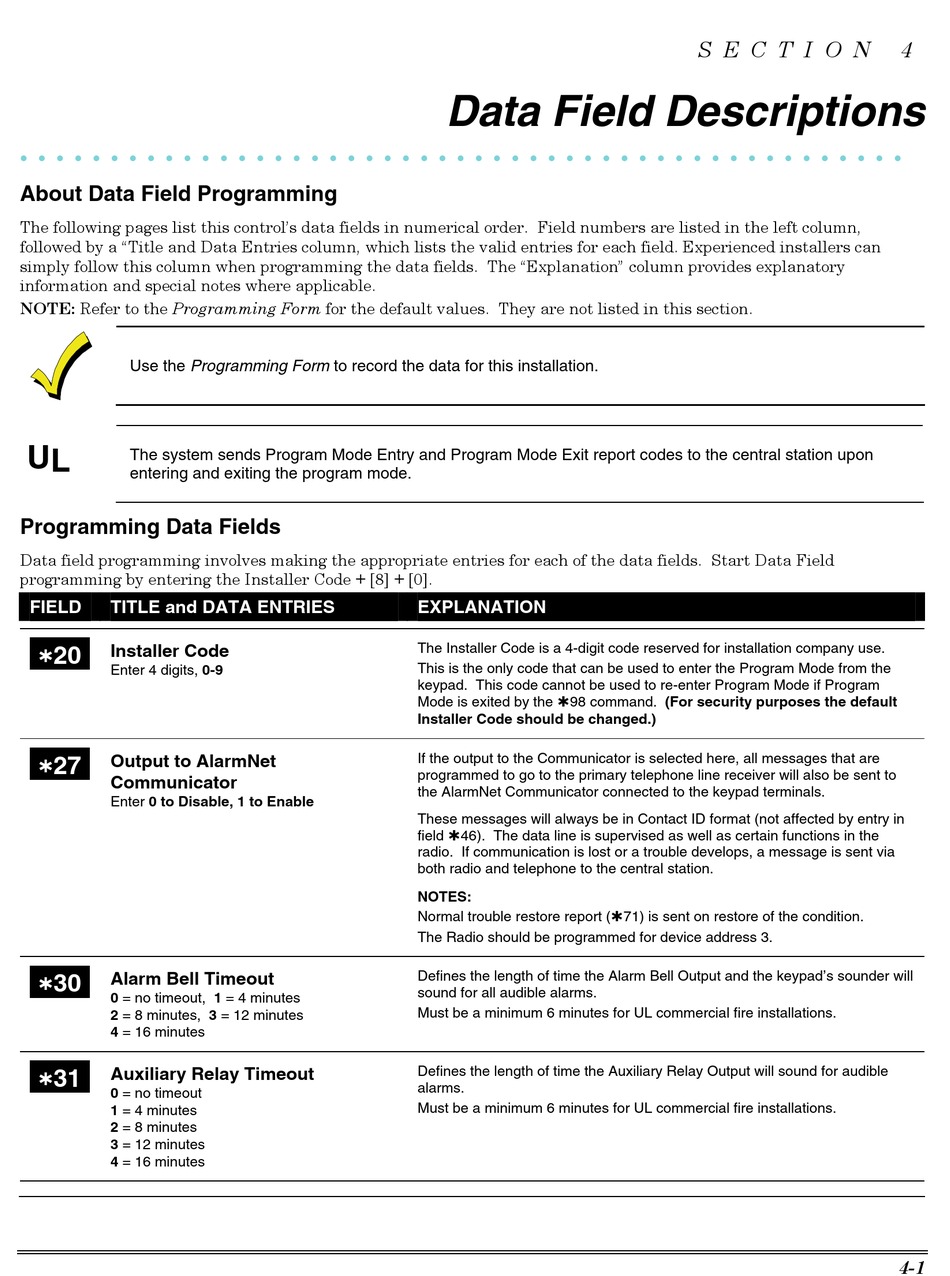

Section 4; Data Field Descriptions; About Data Field Programming; Programming Data Fields - First Alert FA2000C Installation And Setup Manual

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

About Data Field Programming

The following pages list this control's data fields in numerical order. Field numbers are listed in the left column,
followed by a "Title and Data Entries column, which lists the valid entries for each field. Experienced installers can
simply follow this column when programming the data fields. The "Explanation" column provides explanatory
information and special notes where applicable.
NOTE: Refer to the Programming Form for the default values. They are not listed in this section.
Use the Programming Form to record the data for this installation.
U L
The system sends Program Mode Entry and Program Mode Exit report codes to the central station upon
entering and exiting the program mode.

Programming Data Fields

Data field programming involves making the appropriate entries for each of the data fields. Start Data Field
programming by entering the Installer Code + [8] + [0].
FIELD TITLE and DATA ENTRIES
Installer Code
20

0 0
Enter 4 digits, 0-9
Output to AlarmNet
27

0 0
Communicator
Enter 0 to Disable, 1 to Enable
Alarm Bell Timeout
30

0 0
0 = no timeout, 1 = 4 minutes
2 = 8 minutes, 3 = 12 minutes
4 = 16 minutes
Auxiliary Relay Timeout
31

0 0
0 = no timeout
1 = 4 minutes
2 = 8 minutes
3 = 12 minutes
4 = 16 minutes

Data Field Descriptions

EXPLANATION
The Installer Code is a 4-digit code reserved for installation company use.
This is the only code that can be used to enter the Program Mode from the
keypad. This code cannot be used to re-enter Program Mode if Program
Mode is exited by the  98 command. (For security purposes the default
Installer Code should be changed.)
If the output to the Communicator is selected here, all messages that are
programmed to go to the primary telephone line receiver will also be sent to
the AlarmNet Communicator connected to the keypad terminals.
These messages will always be in Contact ID format (not affected by entry in
field  46). The data line is supervised as well as certain functions in the
radio. If communication is lost or a trouble develops, a message is sent via
both radio and telephone to the central station.
NOTES:
Normal trouble restore report (  71) is sent on restore of the condition.
The Radio should be programmed for device address 3.
Defines the length of time the Alarm Bell Output and the keypad's sounder will
sound for all audible alarms.
Must be a minimum 6 minutes for UL commercial fire installations.
Defines the length of time the Auxiliary Relay Output will sound for audible
alarms.
Must be a minimum 6 minutes for UL commercial fire installations.
S E C T I O N 4
4-1
