Roberts Swallow CD9959 User Manual

Hide thumbs

Advertisement

Quick Links

CD9959
Stereo CD Radio
Please read this manual before use

Advertisement

loading

  Also See for Roberts Swallow CD9959

  Related Manuals for Roberts Swallow CD9959

  Summary of Contents for Roberts Swallow CD9959

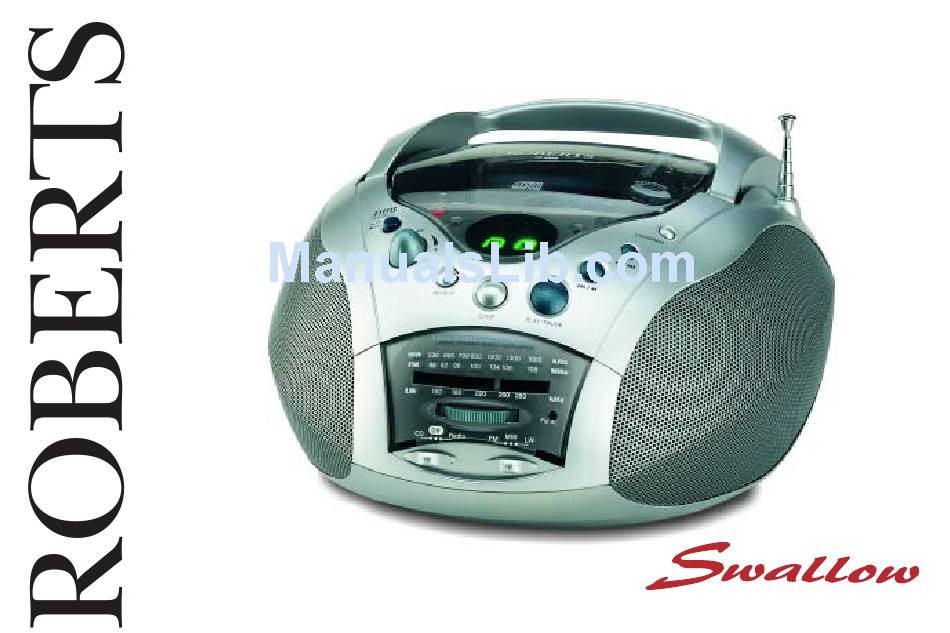

  • Page 1 CD9959 Stereo CD Radio Please read this manual before use...
  • Page 2: Table Of Contents

    Contents Contents ................2 Controls ................3-5 Battery Operation .............. 6 Mains Operation ..............6 Listening to the radio - FM ..........7 Listening to the radio - Medium and Long wave ....8 Compact discs ..............9 Inserting a CD ..............10 Playing a CD ..............
  • Page 3: Controls

    Controls 1000 1300 FM STEREO RADIO 1. Function switch 4. Telescopic aerial 2. Tuning control 5. FM Stereo indicator 3. Dial pointer 6. Waveband switch...
  • Page 4 Controls PROGRAM REPEAT PLAY/PAUSE PROGRAM VOLUME REPEAT STOP PLAY/PAUSE 7. LED Display 14. Play/Pause indicator 8. BBS button 15. F.Skip button 9. Repeat indicator 16. B.Skip button 10. On indicator 17. Play/Pause button 17 16 15 11. Open/Close button 18. Stop button 12.
  • Page 5 Controls 24. FM Mode switch 21. Mains power socket 22. Handle 30. Battery compartment (on underside) 23. Headphone socket...
  • Page 6: Battery Operation

    Battery operation 1. Slide the battery cover catch in the direction of the arrow. Open the battery cover. 2. Fit six LR14 (C size) batteries into the spaces in the compartment. Take care to ensure all batteries are inserted with the correct polarity as shown inside the battery compartment.
  • Page 7: Listening To The Radio - Fm

    Listening to the radio - FM 1. Switch on your CD radio by sliding the Function switch to the 'Radio' RADIO position. The On indicator will light. 2. Slide the Waveband switch to the 'FM' position. 3. Tune in to the desired station by rotating the Tuning control . The station frequency is indicated in the dial scale.
  • Page 8: Listening To The Radio - Medium And Long Wave

    Listening to the radio - Medium and Long wave RADIO 1. Switch on your CD radio by sliding the Function switch to the 'Radio' position. The On indicator will light. 2. Select the required waveband by sliding the Waveband switch to the desired position.
  • Page 9: Compact Discs

    Compact discs Use only Digital Audio CDs which have the symbol. Never write on a CD or attach any sticker to the CD. Always hold the CD at the edge and store it in its box after use with the label facing up. To remove dust and dirt, breathe on the CD and wipe it with a soft, lint- free cloth in a straight line from the centre towards the edge.
  • Page 10: Inserting A Cd

    Inserting a CD RADIO 1. Set the Function switch to 'CD'. The On indicator will light up and '--' will flash on the display. 2. To open the CD compartment, push the Open/Close button on the POWER PROGRAM CD door . REPEAT PLAY/PAUSE Press the CD onto the spindle until it clicks into place.
  • Page 11: Playing A Cd

    Playing a CD POWER PROGRAM 1. Press the Play/Pause button to start playback. The Play/Pause REPEAT PLAY/PAUSE indicator will light up and the display will show the track number. PLAY/PAUSE 2. Set the Volume control to the required setting. Press the BBS button to activate the Bass Boost System.
  • Page 12: Selecting A Track

    Selecting a track 1. Whilst the CD is playing, press either the F.skip or B.skip buttons to change to the desired track, the track number appears in the display. 2. You can also skip tracks when the player is in stop mode. Skip to POWER PROGRAM the desired track using the F.skip or B.skip buttons.
  • Page 13: Cd Repeat Mode

    CD repeat mode 1. Whilst the CD is playing press the Repeat button once to repeat POWER PROGRAM the current track. The Repeat indicator will flash. REPEAT PLAY/PAUSE 2. Press the Repeat button again to repeat all tracks on the CD. The Repeat indicator will light up.
  • Page 14: Programmed Play

    Programmed play By programming the player you can play up to 20 tracks in any desired POWER PROGRAM order. REPEAT PLAY/PAUSE 1. Whilst the CD is in Stop mode, press the Program button . The display will flash ‘01’ once before flashing '00'. The Program PROGRAM indicator will flash.
  • Page 15: Editing A Programme

    Editing a programme 1. Whilst the CD is in Stop mode, repeatedly press the Program POWER PROGRAM button to step through the tracks programmed until you find the REPEAT PLAY/PAUSE desired counter number. The display will flash the counter number (‘03’) once before flashing '00'.
  • Page 16: Checking A Programme

    Checking a programme 1. Whilst the CD is in Stop mode, repeatedly press the Program POWER PROGRAM button to step through the tracks programmed. The Display will REPEAT PLAY/PAUSE flash each programmed track number in sequence. PROGRAM 2. Resume play by pressing the Play/Pause button . Erasing a programme RADIO RADIO...
  • Page 17: Headphones

    Headphone socket A 3.5mm Headphone Socket located on the left hand side of your radio is provided for use with headphones. Inserting a plug automatically mutes the internal loudspeaker. Please be aware that the sensitivity of headphones can vary widely. We therefore recommend setting the volume to a low level before connecting headphones to the radio.
  • Page 18: General

    o l l l l i . y l e i l t i f e i l s t l y t i l l i y l l i , t y l t ● The apparatus shall not be exposed to dripping or splashing and t i f that no objects filled with liquids, such as vases, shall be placed on apparatus.
  • Page 19 t i f LASER LAITE OPEN...
  • Page 20: Specification

    l a i l a i - t l i r r l a i - t l i r r l a i c i f c i t...
  • Page 21 Notes:...
  • Page 22 Notes:...
  • Page 23: Guarantee

    In the event that it is not possible to return the product to the Roberts dealer from whom it was purchased, please contact Roberts Radio using the contact details on the www.robertsradio.com website.
  • Page 24 ROBERTS RADIO LIMITED PO Box 130 Mexborough South Yorkshire S64 8YT Website: http://www.robertsradio.com Issue 4 © 2003, 2014 Roberts Radio Limited...
