SAFETY INSTRUCTIONS

AND OPERATOR'S MANUAL
FOR
BEVELLING MACHINE
BM-12
JEI Solutions LTD
Unit 30 & 31 New Hall Hey Business Park
New Hall Hey Road, Rawtenstall, Rossendale, Lancashire
BB4 6HR United Kingdom
Tel: 00 44 (0)1706 229490 Fax: 00 44 (0)1706 830496
E-mail: Sales@jeisolutions.co.uk Web: www.jeiuk.com
Operator's manual for BM-12 Beveling Machine

Advertisement

Table of Contents
loading

Related Manuals for JEI SteelBeast BM-12

Summary of Contents for JEI SteelBeast BM-12

  • Page 1: Safety Instructions

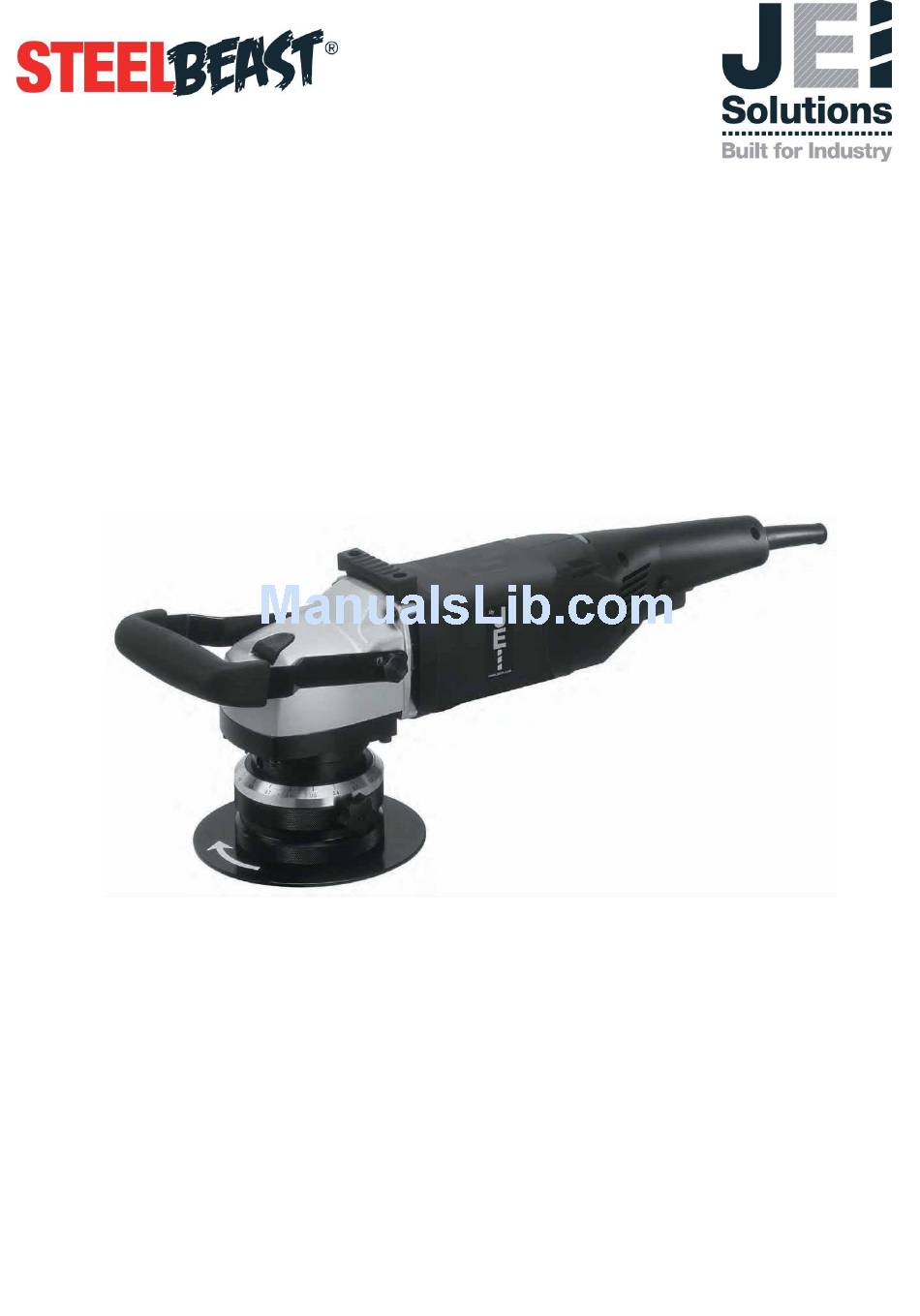

    SAFETY INSTRUCTIONS AND OPERATOR’S MANUAL BEVELLING MACHINE BM-12 JEI Solutions LTD Unit 30 & 31 New Hall Hey Business Park New Hall Hey Road, Rawtenstall, Rossendale, Lancashire BB4 6HR United Kingdom Tel: 00 44 (0)1706 229490 Fax: 00 44 (0)1706 830496 E-mail: Sales@jeisolutions.co.uk Web: www.jeiuk.com...

  • Page 2: General Safety Rules

    _____________________________________________________ GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and / or serious personal injury. The term “power tool” in all of the warnings listed refers to your mains-operated (corded) power tool.

  • Page 3: Personal Safety

    BM-12 Bevelling Machine When operating a power tool outside, use an outdoor extension cord marked “W- A” or “W”. These cords are rated for outdoor use and reduce the risk of electric shock. PERSONAL SAFETY Stay alert, watch what you are doing and use common sense when operating a power tool.
  • Page 4 BM-12 Bevelling Machine Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation.

  • Page 5: Specific Safety Rules

    BM-12 Bevelling Machine SPECIFIC SAFETY RULES 1. Never operate to tool in an area with flammable solids, liquids or gases. Sparks from the commutator/carbon brushes could cause fire or explosion. WARNING: Risk of injury from high temperature chips! High temperature chips are expelled at high speed Never touch the tool holder and keep all venerable body parts clear while machine is running.

  • Page 6: Electrical Connection

    BM-12 Bevelling Machine standard 45 degree tool holder for use with triangle indexable carbide cutter inserts to achieve quick and easy bevelling. WARNING: The machine should not be converted or modified, e.g. for any other form of use, other than as specified in these operating instructions. The user shall be liable for damages and accidents due to incorrect use.

  • Page 7: Carton Contents

    BM-12 Bevelling Machine UNPACKING Carefully remove the tool and all loose items from the shipping container. Retain all packaging materials until after you have inspected and satisfactorily operated the machine. CARTON CONTENTS 1. Operators Manual 2. Hook Spanner Wrench 3. Spindle Lock Bar DO NOT OPERATE THIS MACHINE UNTIL YOU HAVE READ AND UNDERTOOD THE ENTIRE INSTRUCTION MANUAL SETTING THE CHAMFER HEIGHT –...
  • Page 8 BM-12 Bevelling Machine ZEROING-IN THE CHAMFER HEIGHT – DISCONNECT TOOL FROM POWER SOURCE. Note: The machine’s chamfer height is set at zero from the factory. If the setting is disturbed, it must be zeroed in. Follow the instructions below for zeroing-in. 1.
  • Page 9 BM-12 Bevelling Machine Arrange the indexable carbide insetrs in staggered, in order to achieve better bevelling result. 1. Using the supplied L-type torx wrench, loosen fixing screw and remove the carbide insert 2. Index the carbide insert to the next sharp edge or insert a new one as needed. 3.

  • Page 10: Switching The Machine On And Off

    BM-12 Bevelling Machine STARTING AND STOPPING TOOL Make sure that the power circuit voltage is the same as that shown on the specification plate of the machine and that switch is “OFF” before connecting the tool to the power circuit. SWITCHING THE MACHINE ON AND OFF To switch on: Press trigger switch to start.

  • Page 11: How To Use The Tool

    BM-12 Bevelling Machine HOW TO USE THE TOOL  Effective control of the powerful tool requires two-handed operation at all times for maximum control and safety.  Do not use this tool continuously for over 30 minutes.  After using the machine for 30 minutes, have a break away from it for at least 20 to 25 minutes.
  • Page 12 BM-12 Bevelling Machine THE CARBON BRUSHES The carbon brushes are a normal wearing part and must be replaced when they reach their wear limit. Caution: Always replace the brushes as a pair To Replace: First unplug the machine. Carefully remove the 4 screws to separate the rear handle halves and then remove the 4 screws which connect the handle to the motor housing.
  • Page 13 BM-12 Bevelling Machine - 12 -...
  • Page 14 BM-12 Bevelling Machine - 13 -...
  • Page 15 BM-12 Bevelling Machine - 14 -...
  • Page 16 Business Park, Rossendale, Lancs. Or our International representative for our international customers for examination and verification of the claimed defects. If defect is verified, JEI Solutions Ltd will replace, free of charge, any defective parts. If inspection of the machine does not disclose any defect in workmanship or materials, the original purchaser will be notified by JEI Solutions Ltd, or its representative, of the costs of necessary repairs.
