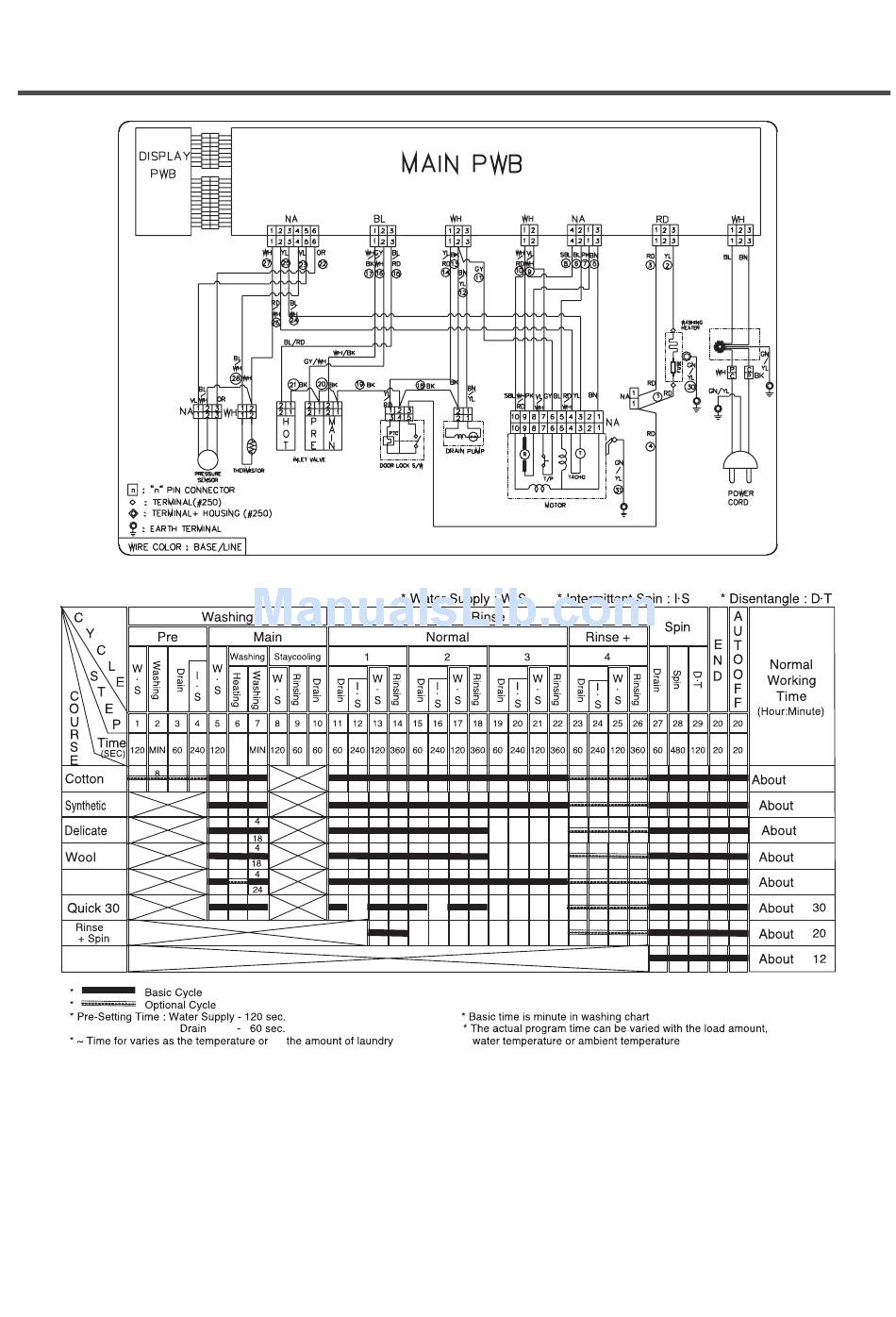

6. WIRING DIAGRAM
Hand Wash
Spin
✽ Pre Wash : If the laundry is heavily soiled, "Pre Wash" course is effective. Pre Wash is available in Cotton and Synthetic Program.
✽ Eco : By selecting Eco function, the water temperature is reduced and washing time is lengthened. So you can economize in your
consumption of energy.
✽ Rinse+ : If you wish to rinse more, the Rinse+ function will remove any trace of detergents.
✽ Bio : If you want to eliminate protein stains (milk, blood, chocolate...), you may select Bio function by pressing the option button.
✽ Quick 30 : By selecting this function, you may wash a small quantity of colored laundry which is lightly soiled fast.
✽ You can select Bio function and Eco function when temperature is higher than 60˚C in Cotton and Synthetic. If the function is
selected, the beginning water temperature can not be changed.
/ PROGRAM CHART
42
87
26
51
11
12
2:35
1:22
1:03
58
57
