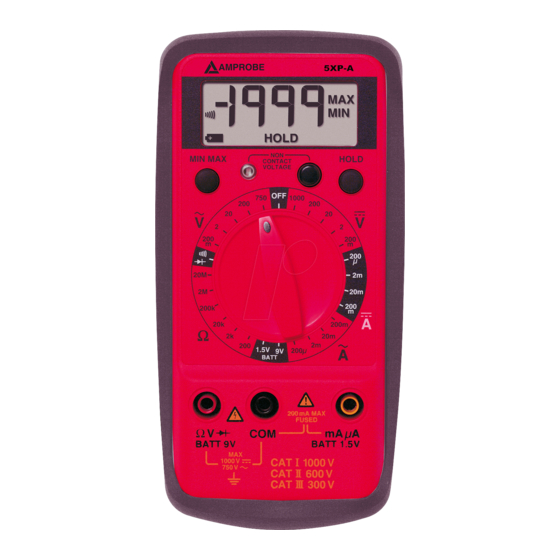

Amprobe 5XP-A User Manual

Hide thumbs Also See for 5XP-A:
Table of Contents

Advertisement

Quick Links

Visit us at www.TestEquipmentDepot.com
Users Manual
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
5XP-A
15XP-B
35XP-A
Compact Digital
Multimeters

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5XP-A and is the answer not in the manual?

Questions and answers

Related Manuals for Amprobe 5XP-A

Summary of Contents for Amprobe 5XP-A

  • Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com 5XP-A 15XP-B 35XP-A Compact Digital Multimeters Users Manual...
  • Page 2 Compact Digital Multimeters 35XP-A RANGE HOLD CONTACT VOLTAGE °C 1000 1832 °F auto-off 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED 1.) Display 5.) Strap Clip Afficheur clip de bretelle Anzeige klemme Display clip in velcro clip para correa Pantalla 6.) Battery/Fuse Cover 2.) Feature Buttons...
  • Page 3 5XP-A 15XP-B 35XP-A Compact Digital Multimeters Users Manual • Manual de uso • Mode d’emploi • Bedienungshandbuch • Manuale d’Uso...
  • Page 4 To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY.

  • Page 5: Table Of Contents

    Measuring Frequency (35XP-A only) (See Figure 10) ..8 Measuring NCV (Non-Contact Voltage) (See Figure 11) ... 9 Testing Battery Voltage (5XP-A only) (See Figure 12) ..9 Testing Logic Levels (15XP-B only) (See Figure 13) ... 9 ADDITIONAL FEATURES ............9 Input Test Lead Warning ............

  • Page 6: Safety Information

    • The XP Series Digital Multimeters conform to EN610101,Rev-2; CAT I 1000 V,CAT II 600 V, CAT III 300 V(5XP-A,35XP-A), CAT II 1000 V, CAT III 600 V(15XP-B), class 2 and pollution deg.2; CSA 22.2 -1010-1. • This instrument is EN61010-1 certified for Installation Category I (1000V).

  • Page 7: Symbols Used In This Manual

    • Inspect the DMM, test leads and accessories before every use. Do not use any damaged part. • Never ground yourself when taking measurements. Do not touch exposed circuit elements or test probe tips. • Do not operate the instrument in an explosive atmosphere. •...

  • Page 8: Range Selection

    Range Selection In addition to autoranging (Models 15XP-B and 35XP-A only) you can manually select and lock a range by pressing the RANGE button. RANGE appears on the display to indicate that manual ranging is active and the range is locked. When appropriate, each subsequent press of the range button steps the meter to the next higher range.

  • Page 9: Measuring Ac Voltage (See Figure 2)

    1. Set the Function Switch to a current function, μA, mA, or A. 2. Select the desired RANGE (5XP-A only). 3. Connect the test leads: Red to mA or A, Black to COM. 4. Turn off power to the circuit being measured.

  • Page 10: Measuring Ac Current (See Figure 4)

    1. Set the Function Switch to a current function and range, μA, mA, or A. 2. Select the desired RANGE (5XP-A only). 3. Connect the test leads: Red to mA or A, Black to COM. 4. Turn off power to the circuit being measured.

  • Page 11: Testing For Continuity (See Figure 6)

    7. Read the display. If appears on the highest range, the resistance is too large to be measured or the circuit is an open circuit. 8. (15XP-B) The 2000 M range has a fixed 10-count offset in the reading. For example, when measuring 1100 M, the display reads 1110.

  • Page 12: Measuring Temperature (35Xp-A Only) (See Figure 9)

    3. Turn off power to the circuit being measured. 4. Discharge the capacitor using a 100 k resistor. 5. Free at least one end of the capacitor from the circuit. 6. Connect the test probes across the capacitor. 7. Read the display. Measuring Temperature (35XP-A only) (See Figure 9) 1.

  • Page 13: Measuring Ncv (Non-Contact Voltage) (See Figure 11)

    LED next to the NCV button on the front panel lights up. Testing Battery Voltage (5XP-A only) (See Figure 12) 1. Set the Function Switch to the appropriate BATT setting, 1.5 V or 9 V.

  • Page 14: Additional Features

    All current ranges are protected by fast acting fuses. MIN MAX Measurements (Model 5XP-A only) The MIN MAX feature reads and updates the display to show the maximum or minimum value measured after you press the MIN MAX button.Pressing the MIN MAX button for less...

  • Page 15: Hold Measurements

    HOLD Measurements The HOLD button causes the meter to capture and continuously display a measurement reading. To use the HOLD feature make a measurement, and then,after the reading has stabilized, momentarily press the HOLD button. You can remove the test leads and the reading will remain on the display.

  • Page 16: Specifications

    0.315 fuse (5XP-A). 4. Reassemble the meter. Fuse: Fast Blow 2 A/1000 V, minimum interrupt rating 30 kA (6 x 32 mm) (Amprobe® FP200). Fast Blow 0.315 A/1000 V minimum interrupt rating 30 kA (6.3 x 32 mm) (Amprobe® FP300) SPECIFICATIONS...

  • Page 17: Test Equipment Depot - 800.517.8431

    P  Safety: Conforms to EN61010-1, Rev-2; CAT I 1000V, CAT II 600V, CAT III 300V(5XP-A,35XP-A), CAT II 1000 V, CAT III 600 V(15XP-B), class 2 and pollution deg. 2; CSA 22.2 -1010-1. EMC: Conforms to EN61326-1. This product complies with...
  • Page 18 FP300 Fuse – 0.315 A / 1000 V (5XP-A) H-XP Magne-Grip® Holster, clip, magnet, and strap XR-TA Input Adapter for K-type thermocouple (35XP-A) TP255 K type thermocouple See www.amprobe.com for detailed specifications of the Amprobe XP digital multimeters. ® 5XP-A Electrical Specifications (at 23°C ±...
  • Page 19 BATTERY TEST Ranges: 1.5 V, 9 V Accuracy: ± (3.5 % rdg + 2 dgts) OVERLOAD PROTECTION Voltage, Resistance, Diode, Continuity: 1000 VDC or 750 VAC rms 200 mV Range: 1000 VDC / 750 VAC rms (3 minutes) Current: 0.315 A / 1000 V fast blow ceramic fuse 6.3 × 32 mm mA JACK: Input warning detects wrong switch/input jack configuration AUXILIARY FEATURES...
  • Page 20 Accuracy: ± (1.0 % rdg + 4 dgts) on 200 to 2 M ranges: ± (3.0 % rdg + 5 dgts) on 20 M range ± {5.0 % (rdg -10 dgt) + 20 dgt} on 2000 M range CONTINUITY Audible indication: Less than 25  DIODE TEST Test current: 1.2 mA (approximate) Accuracy: ±(1.5 % rdg + 3 dgts)
  • Page 21 DC CURRENT Ranges: 400 µA, 4000 µA, 40 mA, 400 mA, 2 A Accuracy: ± (1.0 % rdg + 2 dgts) on 400 µA to 400 mA ranges: ± (2.0 % rdg + 3 dgts) on 2 A range AC CURRENT (45 Hz to 500 Hz) Ranges: 400 µA, 4000 µA, 40 mA, 400 mA, 2A Accuracy: ±...
  • Page 22 FREQUENCY Ranges: 4 k, 40 k, 400 k, 1 MHz Accuracy: ± (0.1 % rdg + 3 dgts) Sensitivity:10 Hz to 1 MHz: >2.5 V rms OVERLOAD PROTECTION Voltage, Resistance, Diode, Continuity, Frequency, Temperature: 1000 VDC or 750 VAC rms Current, Capacitance: 2 A / 1000 V fast blow ceramic fuse 6.3 ×...
  • Page 23 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED Test Equipment Depot - 800.517.8431 -...
  • Page 24 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED...
  • Page 25 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED...
  • Page 26 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED...
  • Page 27 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP-A RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED...
  • Page 28 RANGE HOLD ˚C 1000 1832 ˚F auto-off CAT 1000V 600V 300V Hz Temp 1000V 2A MAX 750V FUSED BATT 5XP-A MIN MAX HOLD CONTACT VOLTAGE 1000 200k 200m 1.5V 9V BATT CAT 1000V 600V 300V BATT 9V BATT 1.5V 1000V...
  • Page 29 15XP-A (15XP-B/35XP-A) (5XP-A) Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
