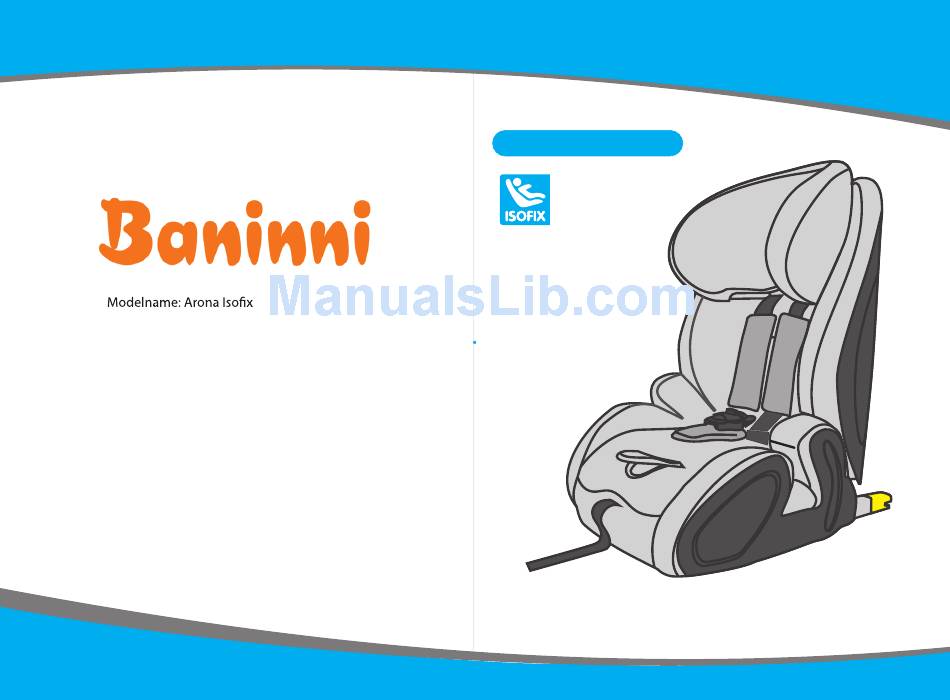

- Page 1 BN2001-1 C hild Safety R estraint 9KG-18KG Itemnummer: BN2001 Imported by Unitra Int. Voortstraat 12 2490 Balen Belgium Tel. +32 14 41 25 04 - Fax. +32 14 81 44 82 INSTRUCTION MANUAL OF CHILD RESTRAINT...
- Page 2 SAFETY NOTICE: 1.This is a “universal” ISOFIX CHILD RESTRAINT SYSTEM. It is approved For the protection of your child *The more snug the harness fits over your child's body, the safer your child to Regulation No.44, 04 series of amendments for general use in vehicles will be.
-
Page 3: Product Overview
PRODUCT OVERVIEW Headrest Adjustment strap Backrest Isofix Connect Base Harness Harness Lever And Isofix lever Top Teather ISOFIX Adjuster Isofix Releasing Button Isofix locking arms... -
Page 4: Care Instructions
CARE INSTRUCTIONS To ensure the full protective effect of the child safety seat: Tested and certified according *In the event of an accident with an impact speed above 10 to ECE* R 44/04 child safety seat km/h it is possible that the child safety seat may have been Group body weight damaged, but that the damage may not be immediately... - Page 5 Isofix lever to pull out both locking arms A. Pull the until the locking arms to the end of the site. please make sure Isofix Releasing Button is unl- ock. B. Pull the tether bag upward and make sure the tether doesn’t fall.
- Page 6 CLICK! D.Grasp the child safety seat with both hands and slide the two Isofix locking arms firmly into the insert car seat guides until the locking arms engage with a E Pull the Isofix lever Push the child safety seat with clicking noise on both sides.
- Page 7 H.Hook the snap hook into the Top Tether anchoring point re- mended in your vehicle owner's guide. G.Guide the Top Tether through the middle of the head- rest.
- Page 8 I. Tension the strap of the Top Tether until the tension ind- icator turns green and the Top tether is tightly tensioned. Caution: Check that the child safety seat is correctly attached J. Press the Harness Lever and at the same time pull both shoulder straps forwards.
- Page 9 J. Pull the adjusting ring of the head rest upwards K. Move the headrest to the correct shoulder strap height and ch- NO-Too low NO-Too high Yes -Correct eck that it is properly engaged by lightly sliding the h rest downwards. l .
- Page 10 Loosen the shoulder harness and slide the chest straps off the harness connectors shaft .Pull the straps through the shoulder strap slots from the front of the child seat. Now you can remove the chest pad . PRESS PRESS M. Pull on the adjusting strap until the harness lies flat at and is close against your child’s body.
- Page 11 Match the tongues well and insert the matched tongues into buckle Washing instruction: body. Using the plastic board to cover the the tongues insertion are as and the buckle body slot, finally use a plastic clip fix it. Thus, it is unnecessary to disassembly the shoulder belt, buckle and tongues, it is suitable for group II and III, the pad can be washable.
